Fender Mounting Instructions for MIN4050, MIN950 & MIN1550 Fenders
STEP 1
A. Unpack all cartons and lay out parts.

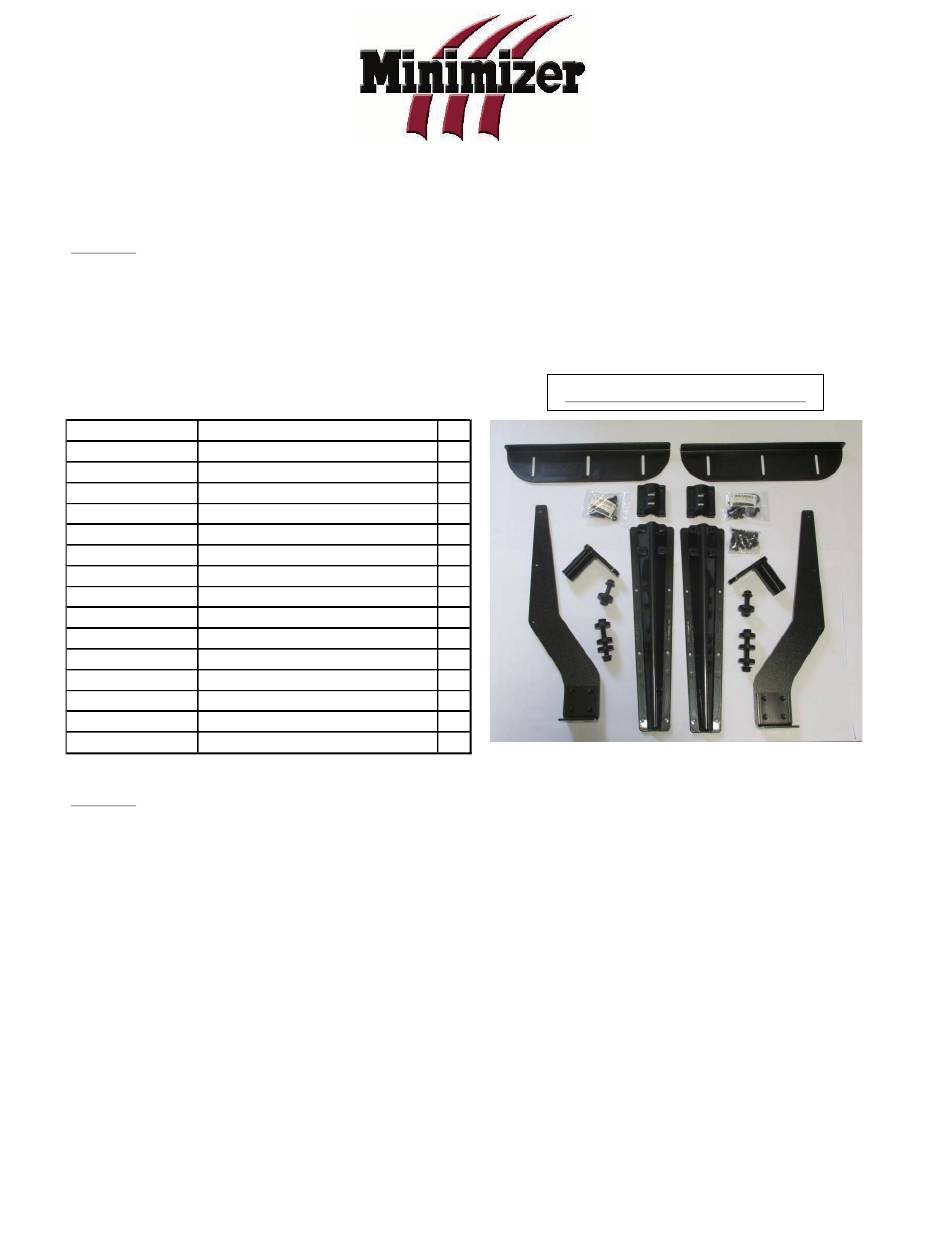

B. Compare the parts with hardware kit B4850BTPA as shown in Figure 1.
PART NUMBER
DESCRIPTION
PB5015
BRKT,5015,STL,SWVL,4.25,BLK
I62C450BFL8/RBZFT HDWR,HHCS,RBZ,FLNG,5/8-11X4.5
I62CNCG/RBZ
HDWR,NUT,RBZ,FLNG-LOCK,5/8-11
PB1/2"SPACER
HDWR,SPCR,PE,.5
PB501026CF
BRKT,5010,PP,TPRD,26,CFBR
PBLOCK
BRKT,BLOCK,PP,BLK
I31C300BSF/RBZ
HDWR,HHCS,RBZ,SERR,5/16-18X3
I31C100BSF/RBZ
HDWR,HHCS,RBZ,SERR,5/16-18X1
I31N150WFEZ
HDWR,WSHR,ZINC,5/16X1.5
I31CNCF/RBZ
HDWR,NUT,RBZ,FLNG-LOCK,5/16-18
PB5067
BRKT,5067,STL,CNTR,ANGL
I62C250BFL8/RBZ
HDWR,HHCS,RBZ,FLNG,5/8-11X2.5
PB5069
BRKT,5069,PE,CNTR,.5
I31C125BSF/RBZ
HDWR,HHCS,RBZ,SERR,5/16-18X1.2
PB5071
BRKT,5071,PE,CNTR,ANGL
STEP 2
A. Measure the suspension travel. This measurement is used to determine the distance
between the fender and the wheel.
a. For air suspension systems, let the air out of the air bags.
b. For spring systems, measure from the stops on the springs to the bottom of the
frame.
NOTE: For air suspensions with travel exceeding 6":
In some cases a travel stop may need to be installed to prevent such large gaps
between the fenders & tires. This will help with alignment and 5
(Please call Minimizer @ 800-248-3855 for questions regarding this issue).
Revised 04/01/2016
B4850BTPACF
QTY
2
2
4
8
2
2
8
12
12
42
2
2
2
22
2
B4850BTPACF Mounting Kit
Figure 1
th
wheel plate clearance.
Page 1
Advertisement
Table of Contents
Related Manuals for Minimizer B4850BTPACF
Summary of Contents for Minimizer B4850BTPACF
- Page 1 In some cases a travel stop may need to be installed to prevent such large gaps between the fenders & tires. This will help with alignment and 5 wheel plate clearance. (Please call Minimizer @ 800-248-3855 for questions regarding this issue). Revised 04/01/2016 Page 1...
- Page 2 B. Gap the fenders ¾” over the maximum travel point of the suspension system. The goal is to make sure the fender does not rub on the tire. A gap larger than ¾” may be necessary if using worn tires. TIP: Establish the ¾”...
- Page 3 through. It is possible to remove any existing frame bolt and replace it with the supplied bolt in the bracket kit. Recommended torque for the 5/8 x 2-1/2” bolt with washer is 110-115 ft-lbs See IMPORTANT assembly instructions for center bracket PB5069 &...
- Page 4 This protects against wind blowing the leading edge of the fender back into the tire (Figure 9). Tip If the front fender bracket is mounted higher than 15”, refer to http://www.minimizer.com/instructions .html for further suggestions on adding additional support. Figure 9 STEP 4 A.
- Page 5 STEP 6 A. Attach the bracket (PB501026A) to the fender. a. Drill six 5/16” holes through the fender using the holes in bracket PB501026A as a guide. b. Install the 5/16” x 1” bolts through the bracket and into the fender. c.
- Page 6 Revised 04/01/2016 Page 6...
