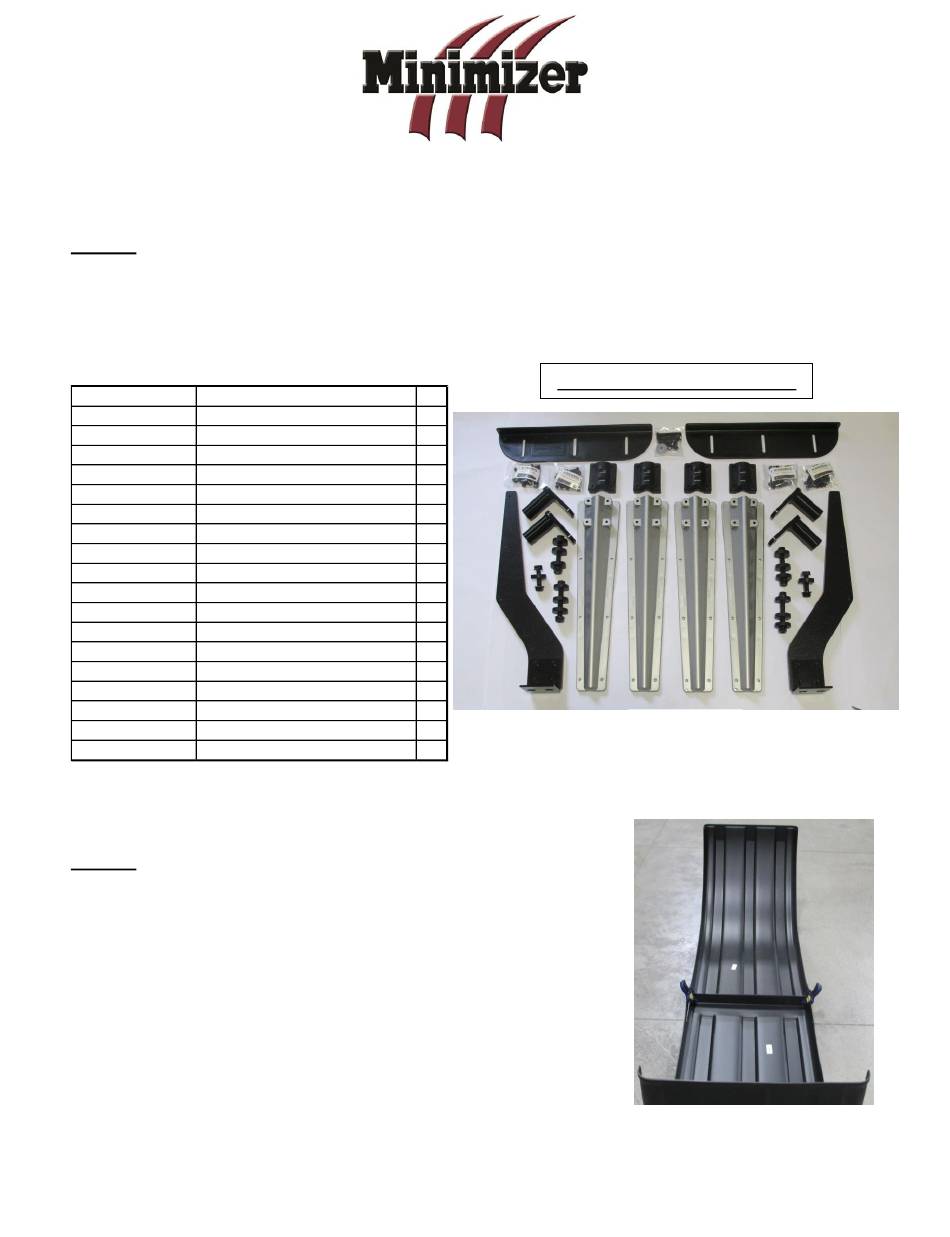

Fender Mounting Instructions for MIN4000, MIN900, MIN1500 & MIN1554 Fenders
STEP 1
A. Unpack all cartons and lay out parts.
B. Compare the parts with hardware kit B4578BTPAPL as shown in Figure 1.
PART NUMBER
DESCRIPTION
PB5015
BRKT,5015,STL,SWVL,4.25,BLK
I62C450BFL8/RBZFT HDWR,HHCS,RBZ,FLNG,5/8-11X4.5
I62CNCG/RBZ
HDWR,NUT,RBZ,FLNG-LOCK,5/8-11
PB1/2"SPACER
HDWR,SPCR,PE,.5
PB501026PL
BRKT,5010,PP,TPRD,26,LPL
PBLOCK
BRKT,BLOCK,PP,BLK
I31C300BSF
HDWR,HHCS,ZINC,SERR,5/16-18X3
I31C100BSF
HDWR,HHCS,ZINC,SERR,5/16-18X1
I31N150WFEZ
HDWR,WSHR,ZINC,5/16X1.5
I31CNCFZ
HDWR,NUT,FLNG-LOCK,5/16-18
PB5067
BRKT,5067,STL,CNTR,ANGL
I62C250BFL8/RBZ
HDWR,HHCS,RBZ,FLNG,5/8-11X2.5
PB5069
BRKT,5069,PE,CNTR,.5
I31C125BSF/RBZ
HDWR,HHCS,RBZ,SERR,5/16-18X1.2
I31CNCF/RBZ
HDWR,NUT,RBZ,FLNG-LOCK,5/16-18 16
PB5071
BRKT,5071,PE,CNTR,ANGL
I31C125BSF
HDWR,HHCS,ZINC,5/16-18X1.25
I31C100BSF/RBZ
HDWR,HHCS,RBZ,SERR,5/16-18X1
STEP 2
A. Lay the fenders out and clamp them together (Figure 2).
This will make bolting them together much easier.
B. Bolt the fenders together. A pack of 5/16 x 1" bolts, 5/16"
nuts and 5/16" x 1- ½" fender washers is included in the
kit. Use four bolts per joint. Recommended torque is
10-15 ft-lbs.
Revised 04/01/2016
B4578BTPAPL
QTY
4
4
6
14
4
4
16
24
40
54
2
2
2
8
2
14
8
B4578BTPAPL Mounting Kit
Figure 1
Figure 2
Page 1
