Ver 1.0.0.0
Quick Installation Guide for G2wifi II

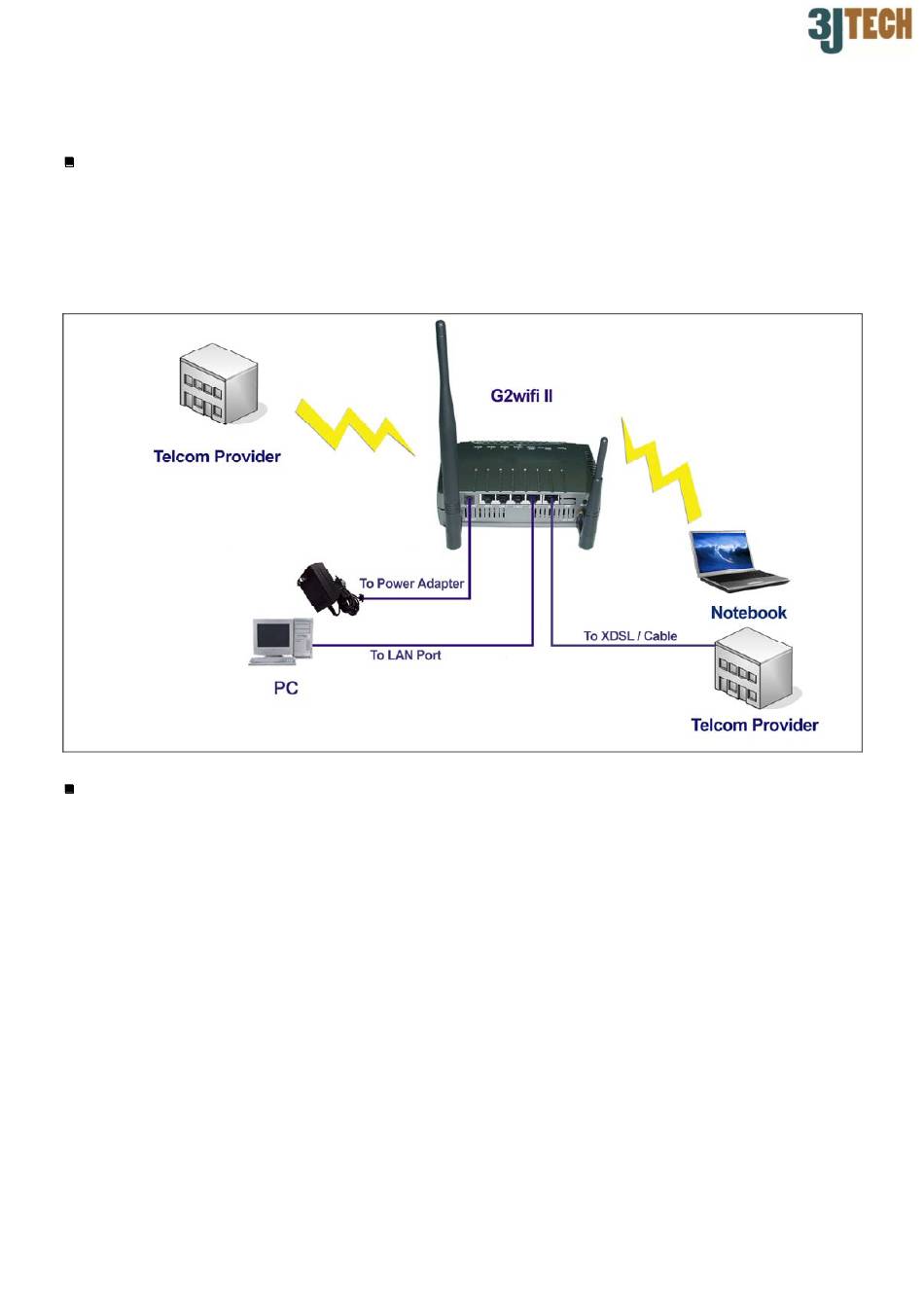

G2wifi II Connection
G2wifi II, a WLAN Access Point with the built-in modem, has failover function using dial-up
modem. Not only can it be used as a regular router to connect to ADSL / Cable modem but also
as a PPP router using dial-up modem to connect to the ISP. Please use the procedures below
for step-by-step instructions to set up your G2wifi II.
Hardware Connection Settings
1) Connect XDSL/Cable to the WAN port of your G2wifi II using a RJ-45 cable.
2) Connect PC to LAN port of your G2wifi II using a RJ-45 cable.
3) Make sure the SIM card has inserted to the modem, and the modem is ready as well.
4) Connect the power cable to the power connector of your G2wifi II.
1
Advertisement
Table of Contents
Related Manuals for 3Jtech G2wifi II
Summary of Contents for 3Jtech G2wifi II
- Page 1 Quick Installation Guide for G2wifi II G2wifi II Connection G2wifi II, a WLAN Access Point with the built-in modem, has failover function using dial-up modem. Not only can it be used as a regular router to connect to ADSL / Cable modem but also as a PPP router using dial-up modem to connect to the ISP.
- Page 2 Ver 1.0.0.0 LED Description of the Front Panel Color Status POWER Green Lit when +12V DC power is on and working. Lit when dialup is connected. Flash when dialup is connecting at 1Hz rate. Dialup status Green Off when dialup is disconnected. Flash when any traffic is present.
- Page 3 Software Connection Settings Before the setup, please confirm that the LAN port of the router has been connected with the PC via RJ-45. Refer to the following sections to set up the G2wifi II based on the modem you have selected:...
- Page 4 After finishing the above procedures, select the following steps for further settings according to your type of the Dial-up modems as we have mentioned above: ─ Set up the G2wifi II for GPRS, 3G/3.5G HSDPA or EDGE modem 1. In this case, please select GPRS.
- Page 5 Ver 1.0.0.0 Setup your GPRS connection details according to your needs. Two modes are offered for Reconnect Mode setting, including Always On or On Demand. Idle time below is the time for “On Demand” mode to disconnect when the modem is idle. In GPRS ISP SETTINGS, please contact your ISP for the GPRS online settings.
- Page 6 When the device has rebooted properly. You can check if the switch is online by clicking on the STATUS. The information should be displayed under the WAN section. ─ Set up the G2wifi II for CDMA/EVDO modem In this case, please select CDMA.
- Page 7 Ver 1.0.0.0 Set up your CDMA connection details according to your needs. Two modes are offered for Reconnect Mode setting, including Always On or On Demand. Idle time below is the time for “On Demand” mode to disconnect when the modem is idle. In CDMA ISP SETTINGS, please contact your ISP for the CDMA online settings.
- Page 8 Restore Factory Default Settings G2wifi II provides a “Reset” button that will be easy for users to reset the router to default. The button is located at the rear panel of the router (See the figure below). Reset steps are as follows: (1) Unplug the power cable.
