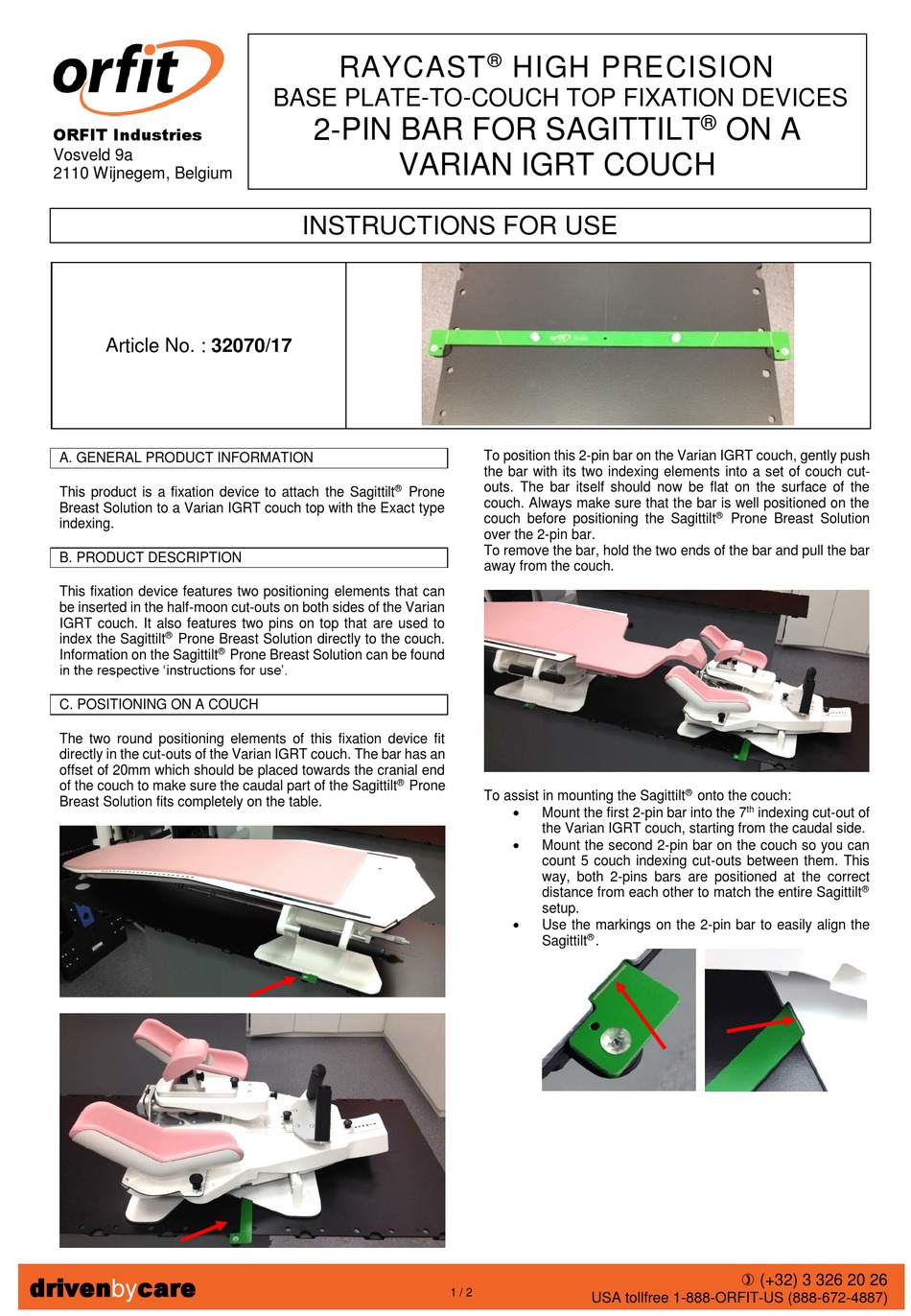

orfit RAYCAST Instructions For Use

ORFIT Industries
Vosveld 9a
2110 Wijnegem, Belgium
Article No. : 32070/17
A. GENERAL PRODUCT INFORMATION
This product is a fixation device to attach the Sagittilt
Breast Solution to a Varian IGRT couch top with the Exact type
indexing.
B. PRODUCT DESCRIPTION
This fixation device features two positioning elements that can
be inserted in the half-moon cut-outs on both sides of the Varian
IGRT couch. It also features two pins on top that are used to
®
index the Sagittilt Prone Breast Solution directly to the couch.
Information on the Sagittilt
in the respective 'instructions for use'.
C. POSITIONING ON A COUCH
The two round positioning elements of this fixation device fit
directly in the cut-outs of the Varian IGRT couch. The bar has an
offset of 20mm which should be placed towards the cranial end
of the couch to make sure the caudal part of the Sagittilt
Breast Solution fits completely on the table.
drivenbycare
RAYCAST
BASE PLATE-TO-COUCH TOP FIXATION DEVICES
2-PIN BAR FOR SAGITTILT

INSTRUCTIONS FOR USE

®
Prone Breast Solution can be found
®
HIGH PRECISION
VARIAN IGRT COUCH
(MRI COMPATIBLE)
To position this 2-pin bar on the Varian IGRT couch, gently push
the bar with its two indexing elements into a set of couch cut-
outs. The bar itself should now be flat on the surface of the
®
Prone
couch. Always make sure that the bar is well positioned on the
couch before positioning the Sagittilt
over the 2-pin bar.
To remove the bar, hold the two ends of the bar and pull the bar
away from the couch.
®
Prone
To assist in mounting the Sagittilt

Mount the first 2-pin bar into the 7
the Varian IGRT couch, starting from the caudal side.

Mount the second 2-pin bar on the couch so you can
count 5 couch indexing cut-outs between them. This
way, both 2-pins bars are positioned at the correct
distance from each other to match the entire Sagittilt
setup.

Use the markings on the 2-pin bar to easily align the
Sagittilt
1 / 2
®
ON A
®
Prone Breast Solution
®
onto the couch:
th
indexing cut-out of
®
.
