Summary of Contents for PDi PDI-DVD-SH

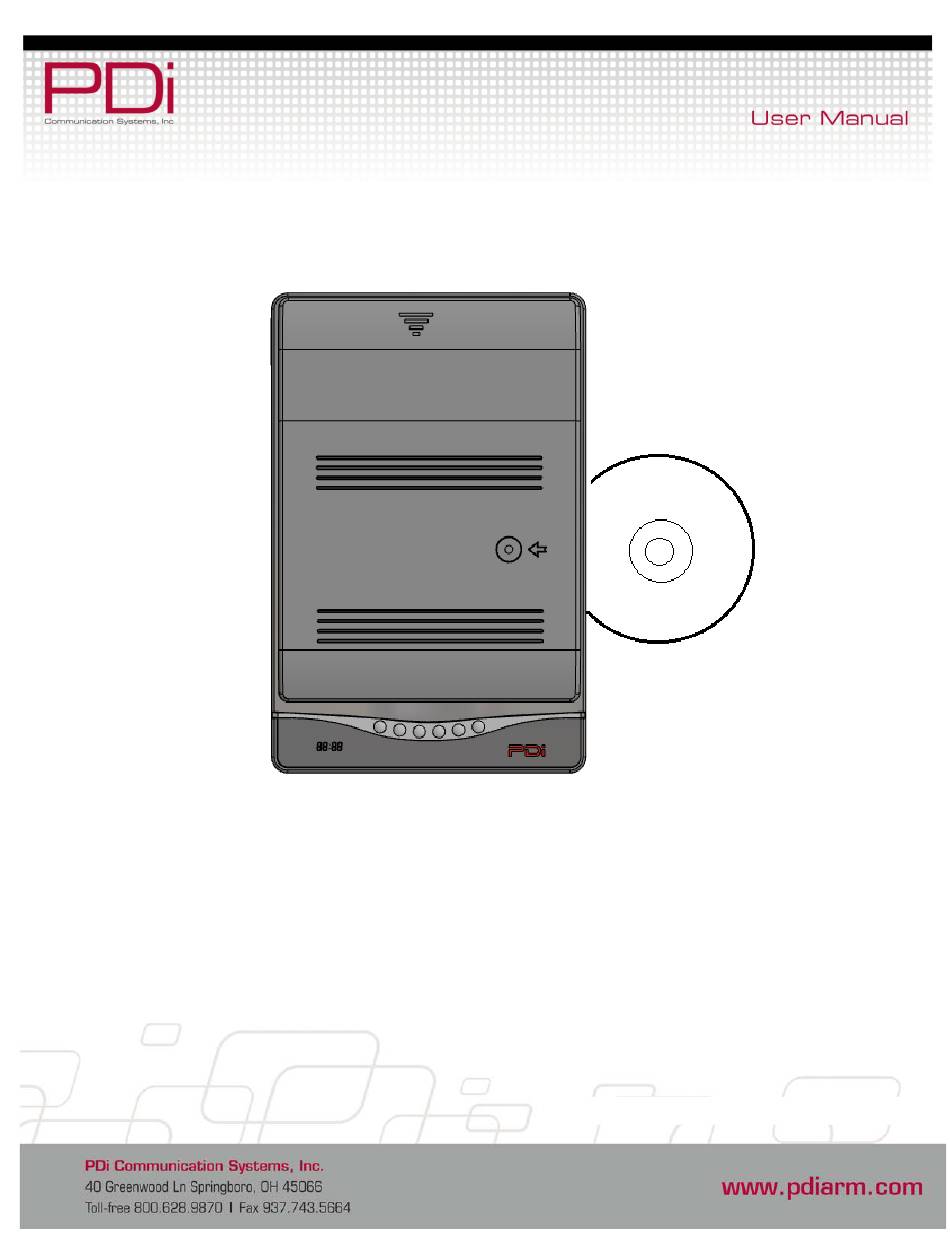

- Page 1 PDI-DVD-SH Healthcare Grade DVD Player Document Number: PD196-160R2...
-
Page 2: Important Safety Instructions
Important Safety Instructions THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS INSTALLATION. the apparatus. Read these instructions. Only use Keep these instructions. attachments/accessories Heed all warnings. -
Page 3: Fcc Compliance
Note to CATV installer. This reminder is provided to call the CLASS 1 CATV system installer’s attention to LASER Article 820-40 of the NEC that provides PRODUCT guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry into the room as CAUTION: This product employs a... -
Page 4: Mounting Options
Mounting Options The model PDI-DVD-SH Healthcare Grade DVD is a specialized DVD player. This DVD player is intended for entertainment and educational purposes for use in a hospital, nursing home, medical-care center, or a similar healthcare facility in which installation is limited to a non-hazardous area in accordance with the National Electrical Code, ANSI/NFPA 70. -
Page 5: Table Of Contents
Contents Important Safety Instructions ............1 FCC Compliance ................2 Mounting Options ................3 Accessories ..................3 Overview .................... 6 Front View ....................6 Right Side View ..................7 Top View....................7 Remote Control ................. 8 System Connections ................ 9 Connecting to a TV using an RF Coax Cable .......... - Page 6 General Setup Page ................19 Language ....................21 Audio ....................... 21 Picture ..................... 22 Speaker ....................22 Dolby Digital Setup ................. 23 Definitions ..................24 Letterbox screen ..................24 Pan & Scan screen ................... 24 Title, Chapter (DVD) ................24 JPEG ......................24 Troubleshooting ................25 Specifications ..................27...
-
Page 7: Overview
Overview Front View Remote Sensor Receive the signal from the remote control for operation. (PLAY) Button Press to confirm selection or start playback. (Pause) Button : Press to pause the playback. Press(PLAY) button to resume normal playback. FR Press it to play backward. ... -
Page 8: Right Side View
Right Side View SD/MS/MMC Card Slot Used to insert the SD/MS/MMC card. USB Port USB port for connection of USB Flash Drives/Sticks. Disc Tray Slot Used to load disc. Top View Remove the top cover towards the direction to show the connected ports of external signal cables. -
Page 9: Remote Control
Remote Control The remote control operates using two AAA batteries (not included) Note: Button functions are detailed in “Playback Operation” section in this manual. Power button EJECT button TITLE button PBC, Menu/Play Menu Random 0-9 Number buttons GOTO button P/N, TV type 10. -
Page 10: System Connections
Use of Remote Control Point the remote control unit to the remote sensor within the range of 5 meters and angles of 60 degree, and without obstacles between remote control and remote sensor. System Connections • Do not connect the power supply until all connections have been made. •... -
Page 11: Connecting To A Tv Using The Component (Ypbpr)
Connecting to a TV using the Component (YPbPr) Use the audio and video cables to connect the Y/Pb(Cb)/Pr(Cr) input jacks on the rear panel of the unit to the external AV signal source. Ensure that the corresponding input (e.g: Component 1 or Component 2) is enabled in the “Source Setup” menu of external AV source. -
Page 12: Connecting To A Tv Using The Av Output
Connecting to a TV using the AV Output Follow the figure below to connect a TV to the AV output jacks on the rear panel of the DVD player. Connection is color-coded. After connection, ensure that the corresponding (e.g: COMPOSITE VIDEO) mode is enabled in the Source Setup menu of the television. -
Page 13: Care Of Discs
Care of Discs Holding Discs Hold the Disc by the edges as shown, when loading or removing from the player. Cleaning Fingerprints or stains on the disc may affect the quality of sound and picture. To clean your discs, use a soft, clean cloth to wipe them. If necessary, moisten a soft cloth with diluted neutral detergent to remove heavy dirt or fingerprints. -
Page 14: Video - Dvd Playback
Video - DVD Playback Region code DVD units and discs are coded by region. If the region number described on the DVD disc does not correspond to the region number of this product, this product cannot play the disc. Play After loading a DVD disc, the screen will display a menu and press ... - Page 15 TITLE In general, the content of a DVD disc can be divided into several titles, and also there are several menus in a title. During playback, press the TITLE button to display the title menu on the screen. On the menu, press the ...
-
Page 16: Cd Playback
CD Playback The player will play all tracks on a CD disc by default. You can use the and buttons, or number buttons to select a track. Pause During playback, press button on the remote control to pause playback and press (PLAY) to resume normal playback. -
Page 17: Jpeg Playback
JPEG Playback After loading a JPEG disc, the screen displays the root folder. Press to select a folder and press OK button to enter. On the folder, press to select files and press (Play) button to play; press to return to the previous folder. Pause During playback, press button on the remote control to pause playback and press ... - Page 18 Picture Rotate While viewing a picture, press the button to rotate the picture. During playback, press the button to rotate the current picture clockwise: During playback, press the button to rotate the current picture counterclockwise: During playback, press the button to flip the current picture horizontally : During playback, press the ...
-
Page 19: Usb And Sd/Ms/Mmc Card Function
USB and SD/MS/MMC Card Function Plug power cord into wall outlet. Turn the player on. Insert the USB memory stick into the USB port or insert the SD/MMC/MS into the SD card slot (see the figure on the right). Note: Prior to connecting the device, make sure that the USB memory stick or the SD card contains files. -
Page 20: Setup
Setup You can change the default settings of this unit to customize its performance to your own preference. Note: Set up the system while playing is stopped or there is no disk in the player. To set up your system: 1. - Page 21 VIDEO • TV-RGB • S-VIDEO • COMPONENT • PC-VGA TV TYPE Select the TV type between PAL and NTSC; NTSC is used for North America. • 4:3PS • 4:3LB • 16.9. PASSWORD Use for changing the password. 0000 is the super password. RATING *You must enter the password before setting the rating on the DVD player.
-
Page 22: Language
Language The items included on this menu are shown at left. Press to highlight this item. Press to enter. Press button to choose the proper selection. Press OK to confirm and press to exit. • The OSD will support 5 languages •... -
Page 23: Picture
Picture The items included on this menu are shown at left. Press to highlight this item. Press to enter. Press button to choose the proper selection. Press OK to confirm and press to exit. • Brightness •... -
Page 24: Dolby Digital Setup
Dolby Digital Setup The items included on this menu are shown at left. Press to highlight this item. Press to enter. Press button to choose the proper selection. Press OK to confirm and press to exit. 1. -
Page 25: Definitions
Definitions Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. -
Page 26: Troubleshooting
Troubleshooting If you suspect there is something wrong with the DVD player, immediately turn the power off. Disconnect the power connector and check that there is no smoke or excessive heat coming from the unit. Never open or try to repair the unit yourself. There are no user serviceable parts inside. - Page 27 POSSIBLE SOLUTION PROBLEM POSSIBLE CAUSE The LCD may be not in Choose the correct video correct video mode. mode. The system connection may Connect the system There is no picture. be not correct. correctly. The unit may be not in AV Switch AV IN/OUT on the out mode.
-
Page 28: Specifications
Specifications Laser Wavelength 780/650nm Video System PAL/NTSC Frequency Response 20Hz 20kHz ±2.5dB ≥90dB Audio Signal-to-noise Rate ≤ -70dB (1kHz) Audio distortion + noise ≥70dB (1kHz) Channel Separation ≥80dB (1kHz) Dynamic Range , Load 10kΩ Audio Out Out Level 2V± ±0.2, Load 75Ω Out Level 1V Video Out Unbalanced Negative...
