Marksman Matrix & Elite
System Installation Overview
NOTE: The following steps give an overview of the procedure to properly install the Marks-
man© Matrix or Elite print system. Refer to the appropriate section for details.
1. Carefully plan the mounting location of the equipment. Keep in mind bracketry hard-
ware location and printer equipment size.
2. Remove equipment from packaging.
3. Assemble all bracketry to the floor, conveyor, or other bracketry per bracketry installa-
tion section.
4. Mount the print system to its appropriate bracketry. Do not connect to power outlet.
5. Assemble the optional retracting bracket to each print head, if applicable.
6. Mount the print head(s) to their appropriate bracketry and in the approximate location
relative to the carton.
7. Mount the photosensor, optional bracketry, and optional encoder per procedure.
!
CAUTION: Remove the print head Ship Cap prior to operating the Print Heads.
Installing Bracketry
This section shows controller bracketry mounted to a conveyor. This is the most common
mounting method, and the most stable, as all bracketry is bolted directly to the conveyor.
Detailed assembly instructions are included with the parts kit.
Other mounting options, including parts kit numbers, are listed in Section 3, System Com-
ponents .

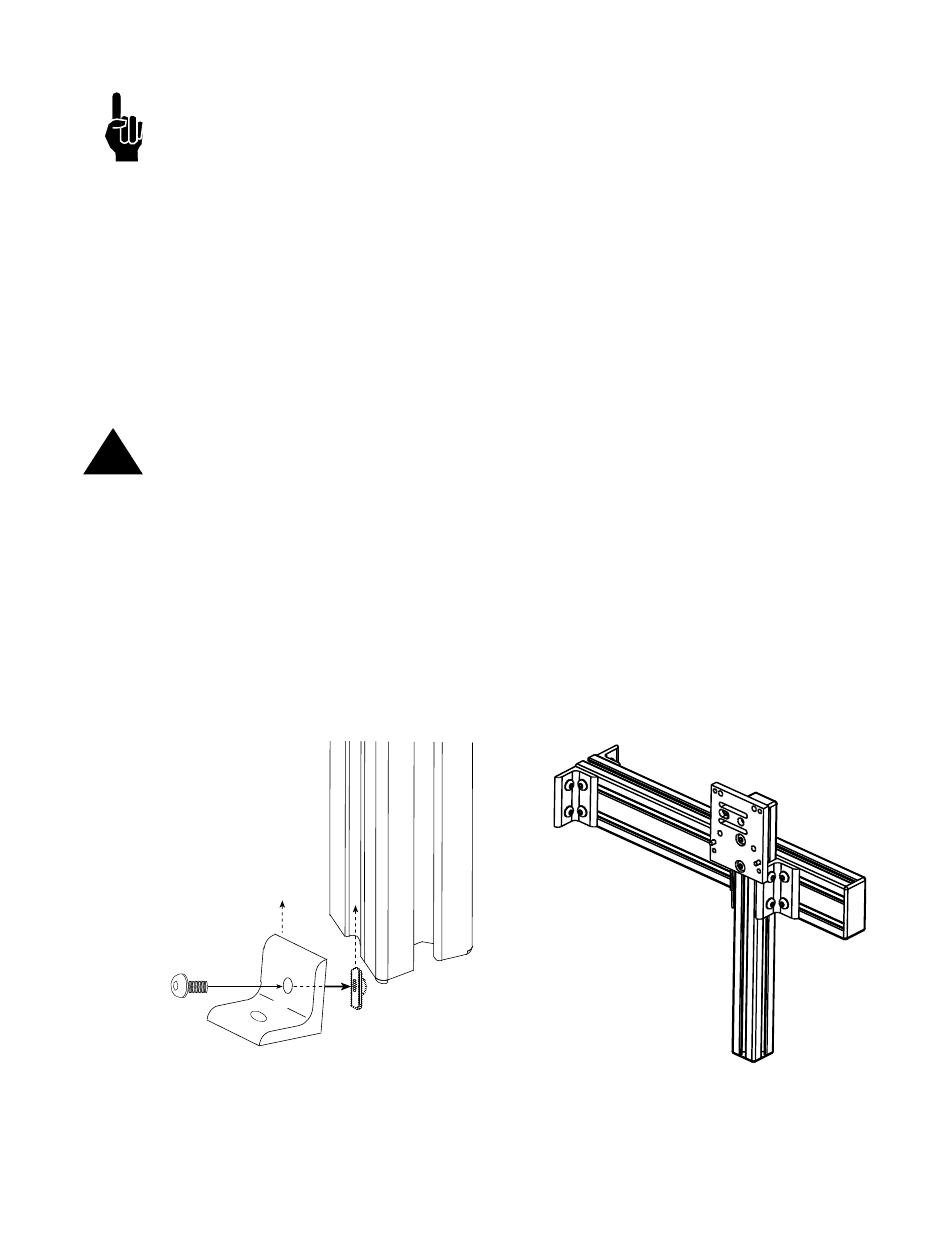

Corner brackets are attached to aluminum bars as shown.
ATTACHING
CORNER
BRACKET
Corner Bracket
2465-623 User Manual Rev E
Single T-nut
Section 4: Installation
Page 9
