ALZO PROPOD V USER GUIDE

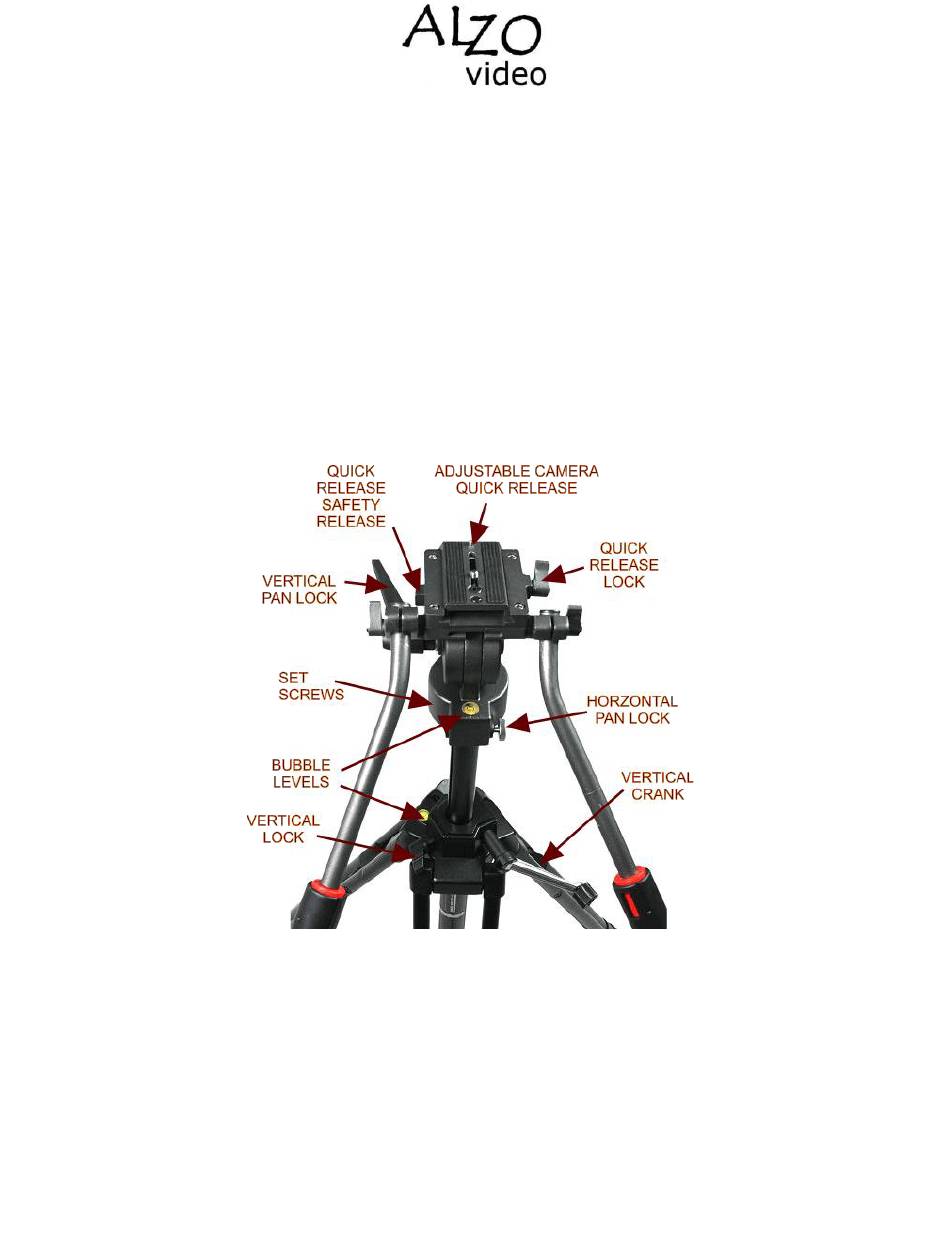

Attach a Camera to the Tripod –
Rotate the Quick Release Lock counter-clockwise to free the Camera
Quick Release plate. The Quick release lock has a ratchet function and
by pushing in while turning you can adjust the position of the lock lever
when fully tight. Push in the Quick Release Safety Release and slide off
the Camera Quick Release plate.
Firmly attach the Camera Quick Release plate to the camera and
reverse the procedure.
The Vertical Pan Lock is also a ratcheting lever lock similar to the Quick
Release Lock.
alzovideo.com
csupport@alzovideo.com
800-582-7009
246-IS
Advertisement
Table of Contents
Related Manuals for ALZO Video ALZO PROPOD V
Summary of Contents for ALZO Video ALZO PROPOD V
- Page 1 ALZO PROPOD V USER GUIDE Attach a Camera to the Tripod – Rotate the Quick Release Lock counter-clockwise to free the Camera Quick Release plate. The Quick release lock has a ratchet function and by pushing in while turning you can adjust the position of the lock lever when fully tight.
- Page 2 ALZO PROPOD V VIDEO TRIPOD HEAD REPLACEMENT The tripod head is attached to the Tripod base with a 1/4" X 20 screw thread and 2 2mm hex head set screws. To remove the head first set the Horizontal Pan Lock thumb wheel to lock the rotation of the head.
