ARCO Extenso ll Mounting Instructions page 7

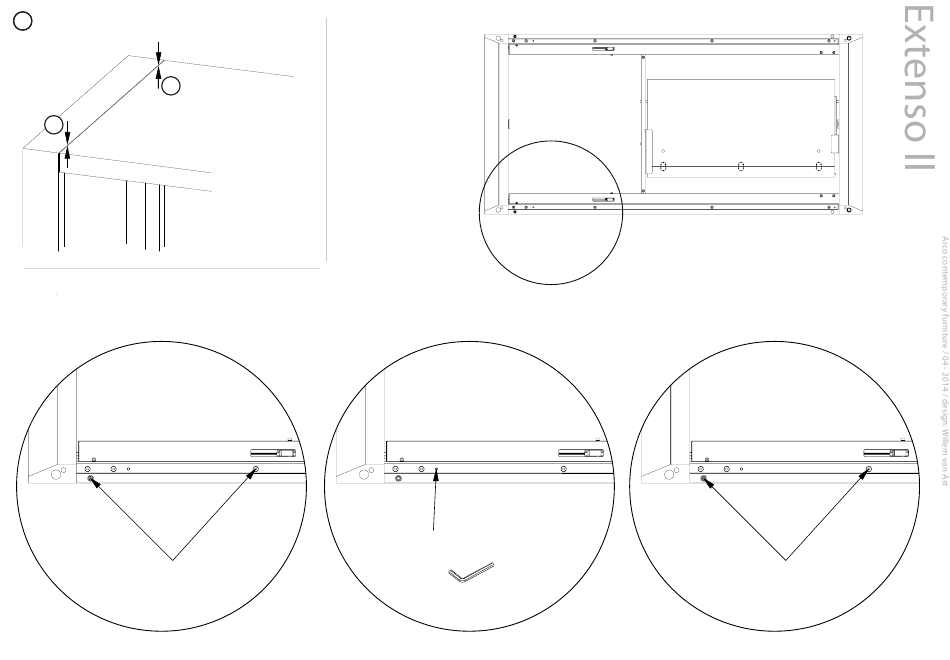

X = max. 0,5 / 1 mm, to adjust follow steps on page 7 & 8

step 1

step 2

step 3

adjust 1x

tighten screws 2x

loosen screws 2x

use

7/8
