General Wiring Diagram - ALDEN S.S.C. HD A module Installation And User Manual

Coax Cable N°2 * Unmarked
Connect to a Dual
tuner satellite re-
ceiver's 2nd LNB In.
OR to a 2nd satel-
lite/Vast receiver.
S/PDIF VIDEO
OUT IN

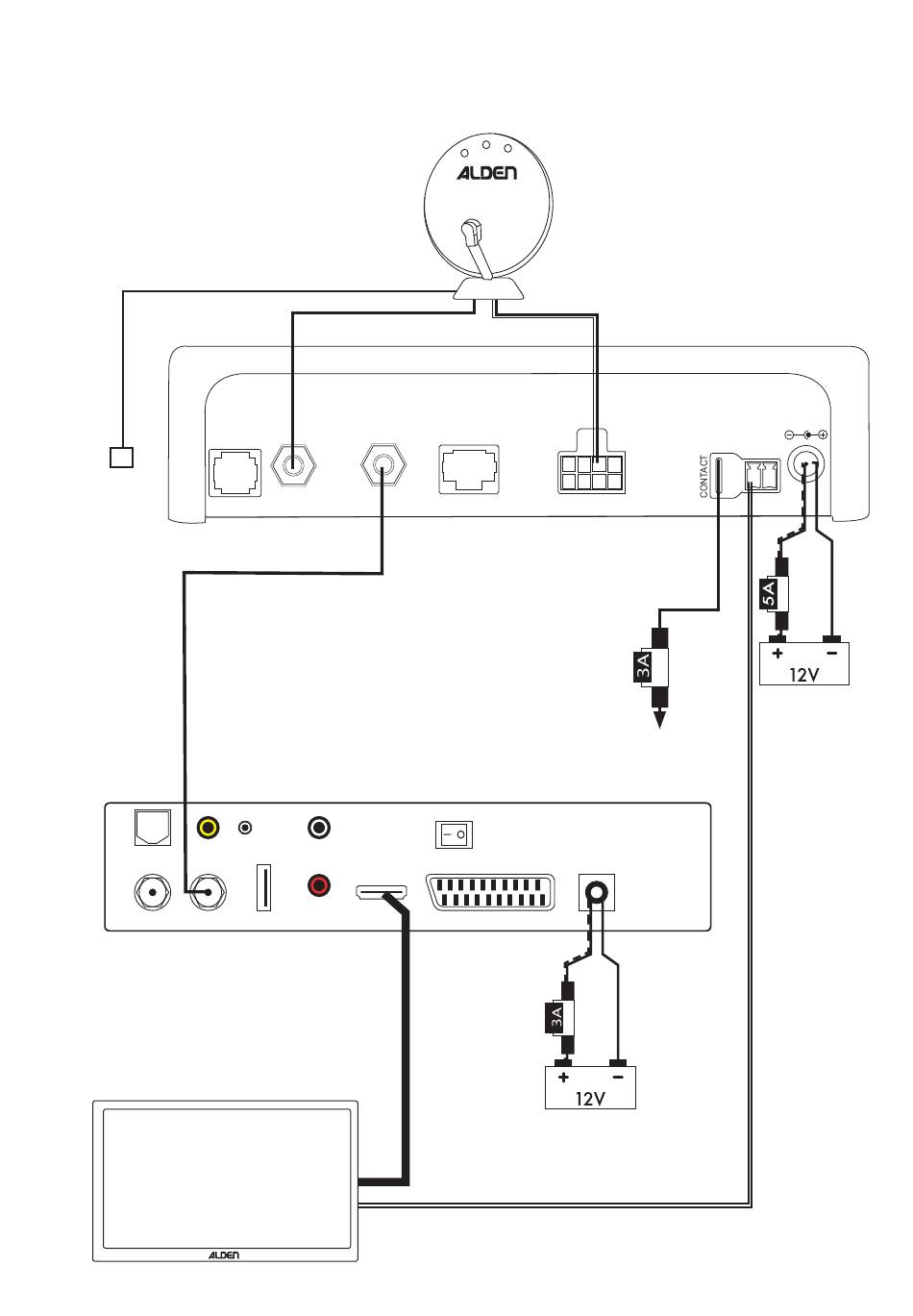

General wiring diagram

Coax cable
* With Green Coloured End
OUT TO
LNB IN
RC 14/18V 300mA DEMO
Coax cable
IR
L
R
USB AUDIO HDMI
HDMI cable
Power supply for
compatible TV
S.S.C. HD A Module - Installation and user's guide - 030718 - 4
Motor cable
MOTOR SKEW
DATA
USB
ON OFF
DC12V/5A
TV
10 - 15VDC
TV OUT
+ after ignition
(1,5A. min.)
