APT Controls EVOLT WBM-PIP Installation Quick Manual page 2

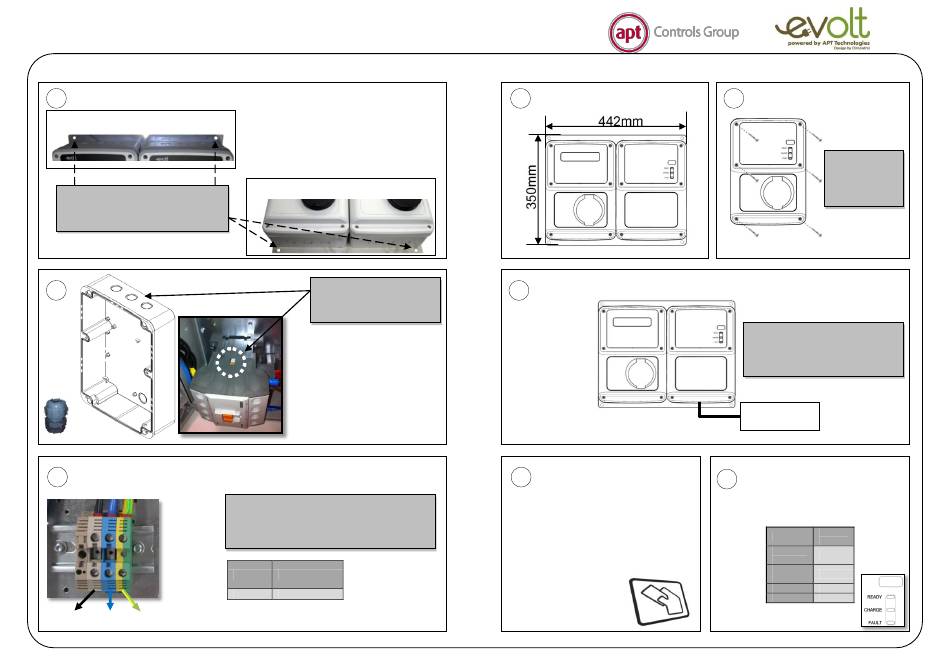

4. STEP BY STEP INSTALATION GUIDE
1
Top view
Mark 4 holes taking into account the
above measurements.
Place on a flat surface.
4
X1 Supplied
6
SINGLE-PHASE ELECTRICAL WIRING AND CONNECTION WARNINGS
L1 N
GROUND
(Black)
(Blue)
WBM-PIP - INSTALLATION QUICK GUIDE
Bottom view
Protect the contactor when
you drill the unit. Place the
cable glands supplied.
-
Connect to the 230V AC single-phase as shown.
- It is important to provide the necessary electrical
protections between origin and the unit (electrical
protection not supplied).
-
Current Cable section
2
32A 6mm
XLPE or EPR recommended cable
UNIT DIMENSIONS
2
5
7
INSTRUCTIONS FOR USE
Start Charging
1. Present RFID Card.
2. Connect EV to plug.
3. WallBox start charging.
Finish Charging
1. Present RFID Card.
2. WallBox will Stop
3. Unplug
3
Remove 6
screws from the
cover to access
inside the units.
- Connect unit to a power supply with
32A protection.
-
It is recommended to introduce the
cables into the bottom of the right unit.
MODE 3
32A Protection
8
OPERATIONAL CHECK
Bellow table shows Wall Box beacon status.
Beacon
STATE
Color
Plug
Green
available
Starting
Yellow
charge
Charging Blue
Fault Red
