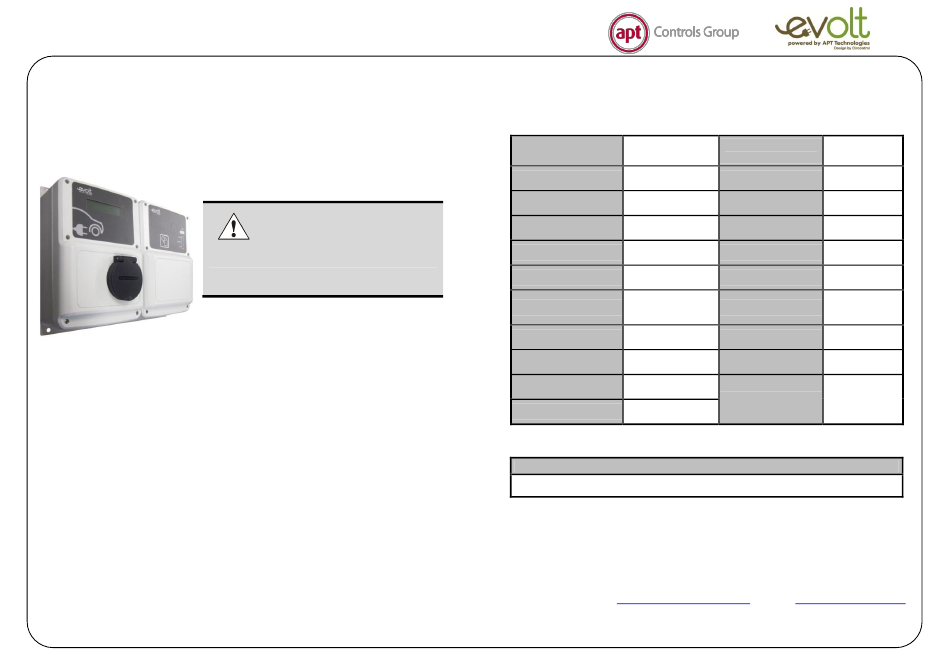

APT Controls EVOLT WBM-PIP Installation Quick Manual

1. DESCRIPTION
The electric vehicle charging system WBM-PIP is specially designed for use on indoor and outdoor car parks to
provide a safe charging system. It consists of a sturdy housing designed to be installed on a flat wall surface.
2. WARNINGS
 Do not use cables there are not in perfect conditions.
 Do not use WallBox for anything other than electric vehicle charging. Charging mode is IEC 61851-1 MODE 3.
 Do not modify the WallBox. If modified, APT CONTROLS will reject all responsibility and the warranty will be
void.
 Comply strictly with current safety regulations according to your country rules.
 Do not make repairs or install with the device powered.
 Only trained and qualified personnel should have access to low-voltage electrical parts inside the device.
 Check the installation annually by qualified technician.
 Remove from service any item that has a fault that could be dangerous for users (broken plugs, caps that
don't close...).
 Only use APT CONTROLS spare parts.
WBM-PIP - INSTALLATION QUICK GUIDE
This is a quick guide.
WBM-PIP
Before performing any maintenance, modification, connection, repair,
etc., disconnect the device from the power supply. When you suspect
a malfunction of the equipment or protection the equipment should
be immediately disconnected from the power supply.
3. TECHNICAL CHARACTERISTICS
230V AC
Input Voltage
Single-phase
Tolerance
±15%
50...60 Hz
Input frequency
Output Voltage = input voltage
Maximum consumption 7,2Kw
Maximum current output 32A
Type II VDE-AR-E
Socket 2623-2-2 according
IEC62196-2
Charge System
MODE 3 (IEC 61851)
RFID reader ISO 14443A
Energy meter Integrated meter
Software Update Via web
EN 61851-1: 2001 PARTE 1, IEC 61000, IEC 60884-1, IEC 60364-4-41, IEC 61010, IEC 61008-1, IEC
60529,UNE-EN55011, UNE-EN62196-1, UNE-EN61851-1, UNE-EN61851-21, UNE-EN61851-22
APT CONTROLS LTD. – The Power House, Chantry Place, Headstone Lane,
Harrow, Middlesex, HA3 6NY
Tel.: +44 (o)20 8421 2411 ; Fax.: +44 (o)2084213951
Web: www.aptcontrols-group.co.uk– E-mail:
Heater (optional)
Extended temperature
range* (-30...+60 ºC)*
-10...+60 ºC
Temperature range
Enclosure IP protection IP54
Socket IP Protection IP44
Box dimensions 350x442x125 mm
Weight 6Kg
Anchor 4 points wall mount
Enclosure
ABS
RFID frequency 13,56Mhz
10/100 Base-T
Communications
IEEE802.3u
STANDARDS
