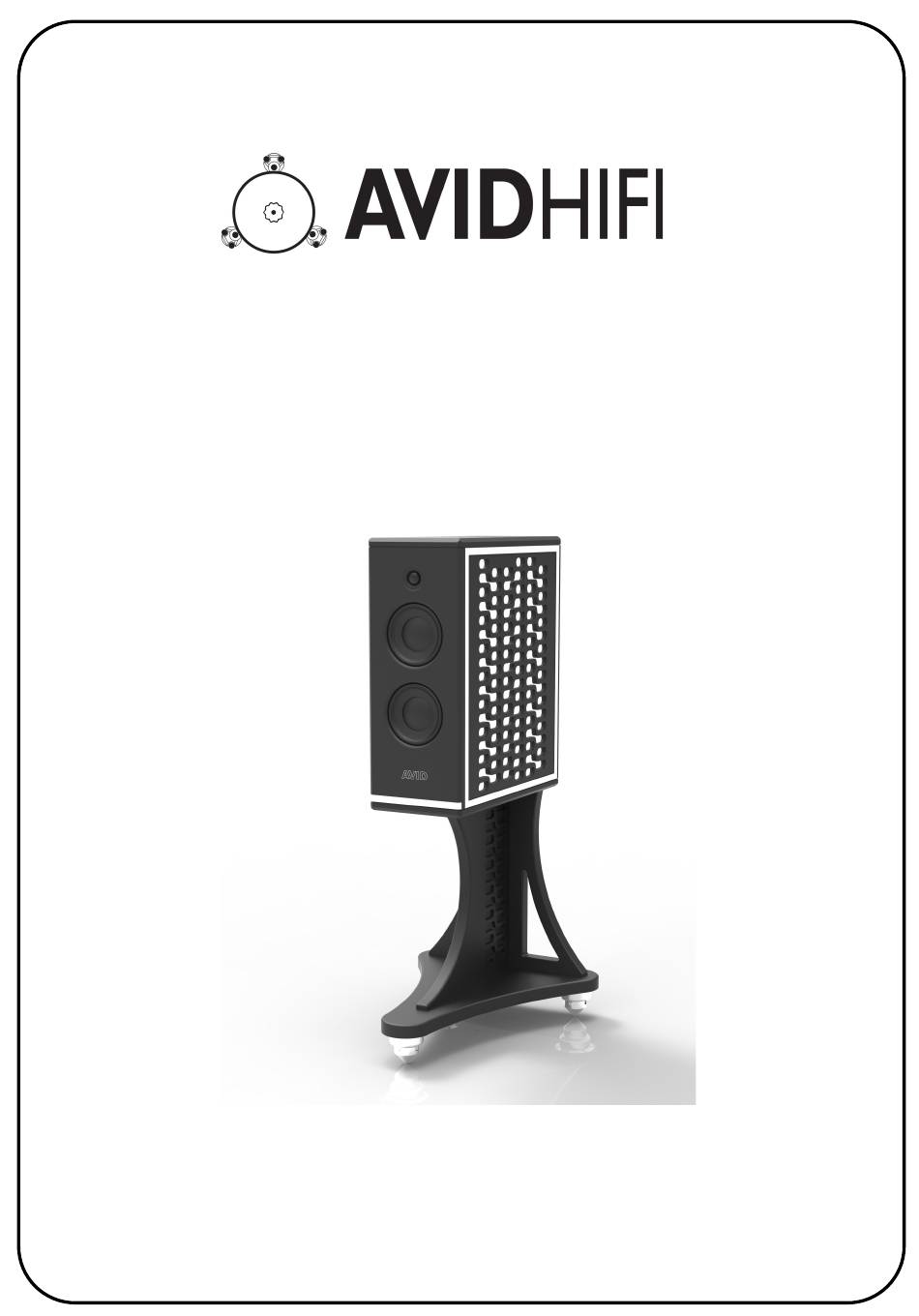

- Page 1 REFERENCE THREE Loudspeaker System USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Topic Page Welcome Caution Key Reference Two features Placement Unpacking Spike Adjustments Connections Cable Choice Specifications Warranty... -
Page 3: Welcome
AVID Reference Two Congratulations on purchasing your AVID Reference Three. Using the highest quality materials during assembly and built to the highest industry standards, your Reference Three loudspeaker should provide you with many years of trouble-free enjoyment. Please read this manual carefully to ensure you understand all the features and operating functions available. -
Page 4: Key Reference Two Features
KEY REFERENCE TWO FEATURES AVID Tuned Mass Damping System. • Highly stable, ultra-rigid Aluminium cabinet construction throughout. • 2 x 6” L.F. drivers with 3” voice coils. • 1 x 28mm HF soft-dome driver. • Precision Drive units utilising: • Uniflow™... -
Page 5: Placement
(>750mm/30”) - but please experiment! UNPACKING The Reference Three speakers are delivered in four boxes. It Is recommended that you open the stand boxes first and locate them near their final positions, and then unpack the speakers, and mount them directly on the stands—the finished assembly will be very heavy, and difficult to move. -
Page 6: Spike Adjustments
SPIKE ADJUSTMENT The three stainless steel spikes are adjustable, allowing you to ensure the loudspeakers are level regardless of what surface they are placed on. Care must be taken whenever moving your loudspeakers—always ensure you have enough help at hand to ensure that you are completely safe, and do not attempt anything that may endanger you, or others around you. -
Page 7: Connections
CONNECTIONS The Reference Three allows for either bi-wiring or bi-amping. This means that you need a connection from you amplifier to each terminal on the back of the loudspeaker. We recommend using a bi-wired configuration whenever possible • Either Banana/4mm or Spade connectors may be used. -
Page 8: Specifications
Specification 1 x 28mm (Titanium voice coil former) 2 x 160mm (75mm Titanium voice coil former) Frequency Response: 35Hz - 22kHz +/-3dB Sensitivity: 88dB 1W@1m Recommended Power: 40 - 400W Impedance: 6 Ohm Crossover Topology: 2.5 way, 2nd Order Cabinet Construction: Aluminium Plate. -
Page 9: Warranty
AVID agent, which ever comes first, extending to five years subject to the product owner having submitted the Registration form (www.avidhifi.com/register.htm). Also the following conditions being observed. - Page 10 Bicton Industrial Park, Kimbolton, Huntingdon, Cambridgeshire. PE28 0LW ENGLAND Tel: +44(0)1480 869 900 — Website: www.avidhifi.com - Email: info@avidhifi.co.uk Company Registered No: 5435528 — VAT Registration No: GB 694 9858 48 — Directors: C. Mas & S.J. Mas Updated 3 January 2018...
