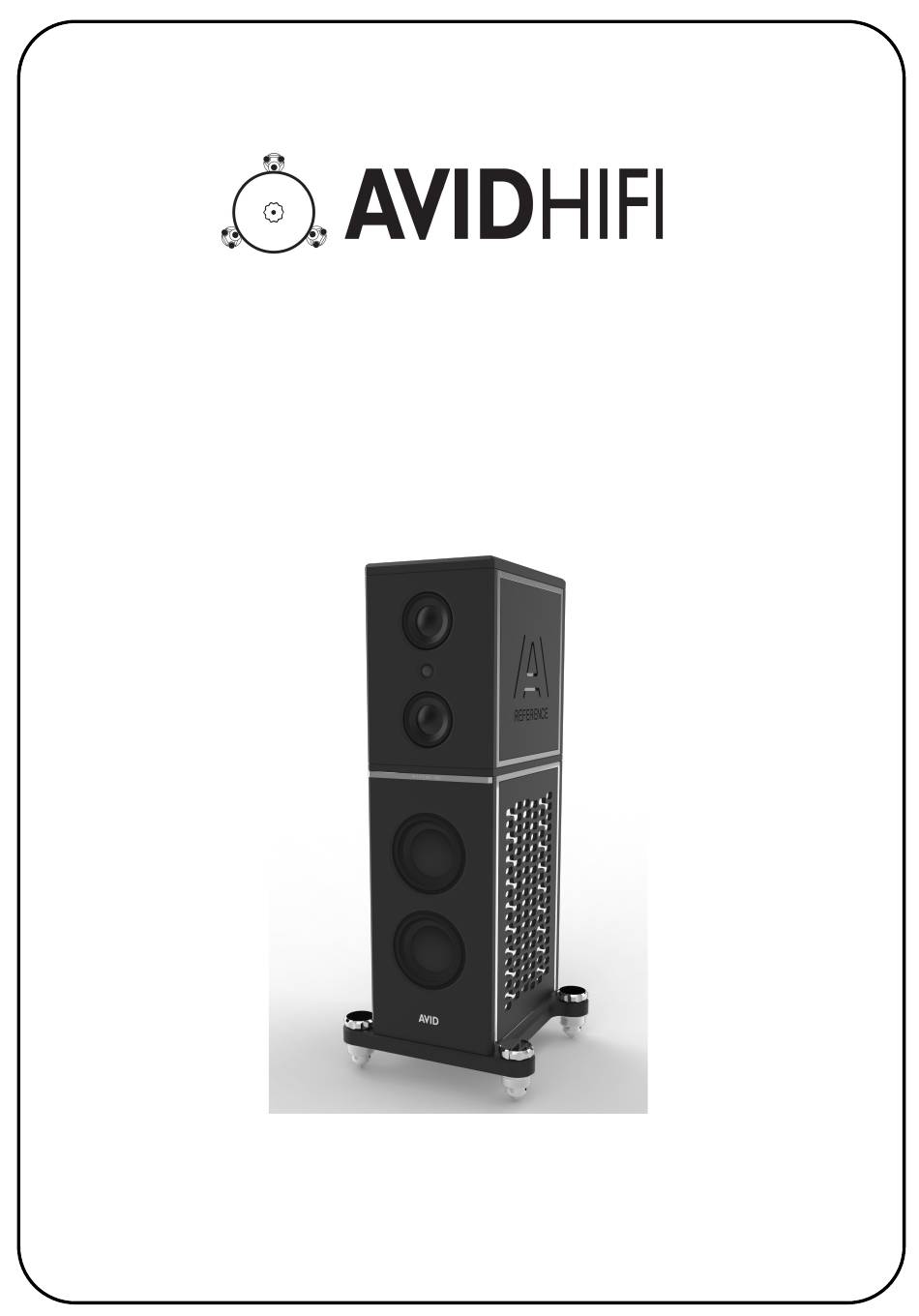

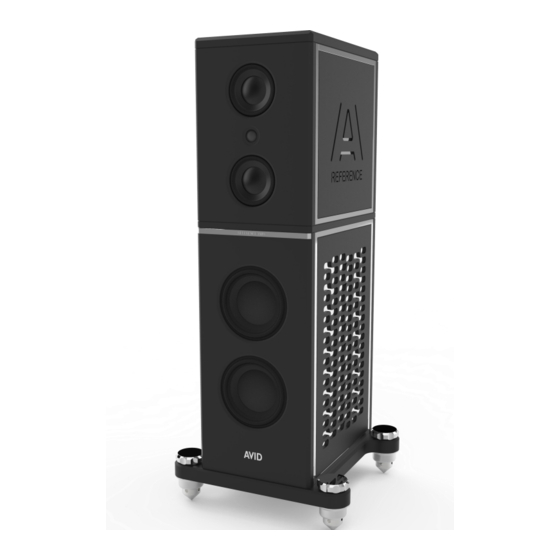

- Page 1 REFERENCE TWO Loudspeaker System USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Topic Page Welcome Caution Key Reference Two features Placement Unpacking Fixing Spikes Connections Cable Choice Specifications Warranty... -
Page 3: Welcome
Congratulations on purchasing your AVID Reference Two. Using the highest quality materials during assembly and built to the highest industry standards, your Reference Two loudspeaker should provide you with many years of trouble-free enjoyment. Please read this manual carefully to ensure you understand all the features and operating functions available. -
Page 4: Key Reference Two Features
KEY REFERENCE TWO FEATURES AVID Tuned Mass Damping System. • Highly stable, ultra-rigid Aluminium cabinet construction throughout. • 2 x 9” High Power L.F. drivers with 5” voice coils. • 2 x 6” M.F. drivers with 3” voice coils. •... -
Page 5: Placement
• Aim both loudspeakers slightly towards the listening position • The Reference Two is a heavy loudspeaker. Using the spikes will place a lot of pressure on the floor—please make sure the floor is suitably resilient. • Avoid having the speakers to close too the rear (>750mm/30”) and the side walls (>1000mm/39”). -
Page 6: Fixing Spikes
FIXING SPIKES GREAT CARE MUST BE TAKEN WHEN CARRYING OUT THIS OPERATION! For safety reasons, it is best to fit spikes two at a time—for example, fit the two front spikes, and then fit the two rear spikes. Preparation of spikes The spikes are supplied in two parts—the spike and its shroud. - Page 7 FIXING SPIKES (cont’d) EXTREME CAUTION MUST BE TAKEN WHILST ATTEMPTING THIS PROCEDURE This process requires at least 3 people. Before proceeding, ensure that the brakes are applied on all 4 wheels. If you are unsure how to proceed, please seek advice from your dealer. Use the following procedure to exchange the casters for the spike assemblies.
-
Page 8: Connections
CONNECTIONS The Reference Two allows for either bi-wiring or bi-amping. This means that you will need a connection from you amplifier to each of the terminals on the back of the loudspeaker. We recommend using a bi-wired configuration whenever possible •... -
Page 9: Specifications
Specification 1 x 28mm (Titanium voice coil former) 2 x 160mm (75mm Titanium voice coil former) 2 x 228mm (130mm Titanium voice coil former) Frequency Response: 24Hz - 22kHz +/-3dB Sensitivity: 90dB 1W@1m Recommended Power: 80 - 1200W Impedance: 4 Ohm Crossover Topology: 3-way, 2nd Order Cabinet Construction:... -
Page 10: Warranty
AVID agent, which ever comes first, extending to five years subject to the product owner having submitted the Registration form (www.avidhifi.com/register.htm). Also the following conditions being observed. - Page 12 Bicton Industrial Park, Kimbolton, Huntingdon, Cambridgeshire. PE28 0LW ENGLAND Tel: +44(0)1480 869 900 — Website: www.avidhifi.com - Email: info@avidhifi.co.uk Company Registered No: 5435528 — VAT Registration No: GB 694 9858 48 — Directors: C. Mas & S.J. Mas Updated 3 January 2018...
