INSTRUCTION MANUAL

15 17

"/20.1"

COLOR

TFT-LCD MONITOR

Please read this manual thoroughly before use, and keep it handy for future reference.

Table of Contents

Need help?

Do you have a question about the HTM150C and is the answer not in the manual?

Questions and answers

Summary of Contents for Hitron HTM150C

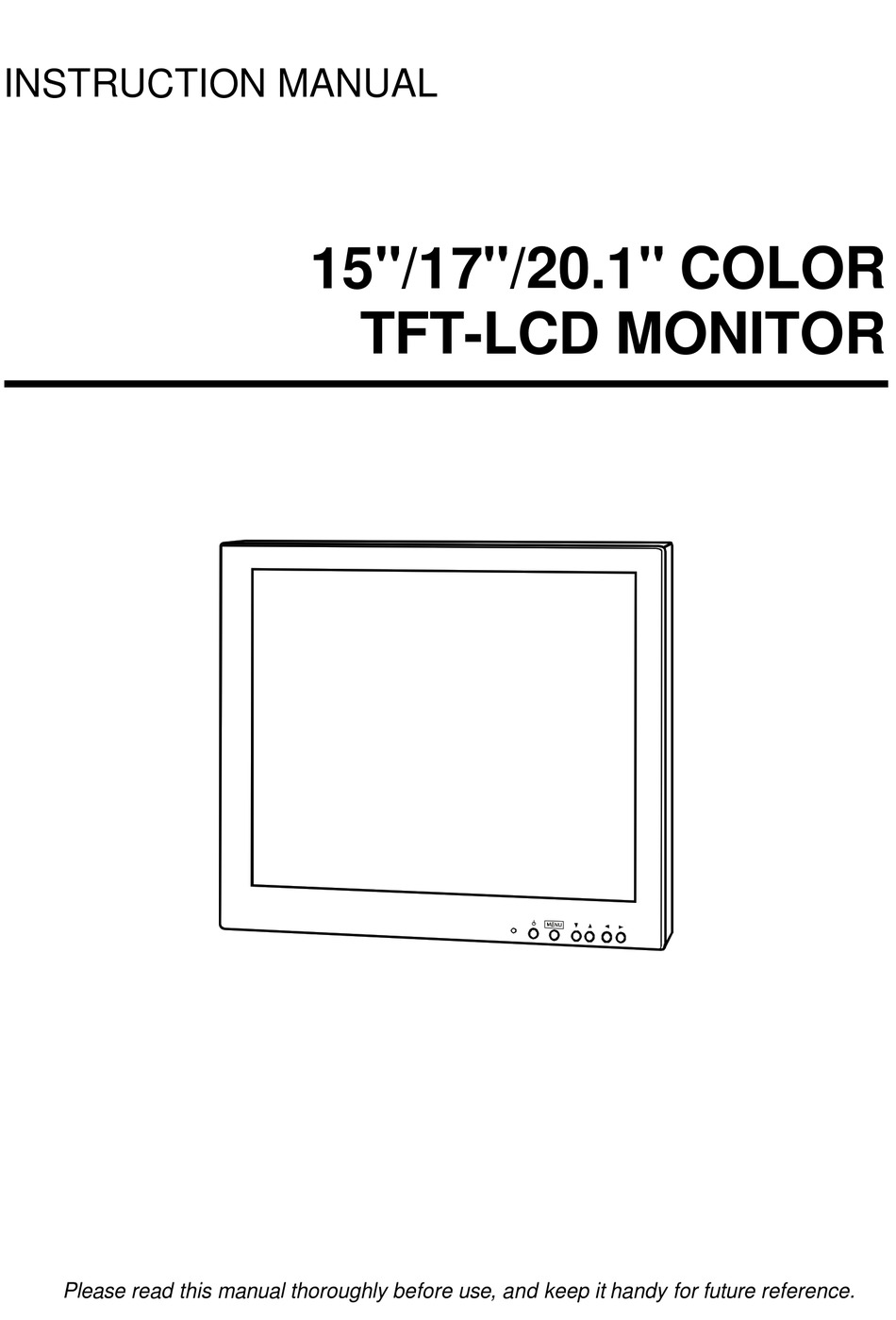

Page 1 INSTRUCTION MANUAL 15 17 "/ "/20.1" COLOR TFT-LCD MONITOR Please read this manual thoroughly before use, and keep it handy for future reference.
Page 2 WARNING: TOREDUCE THE RISK O F FIREOR ELECTRIC SHOCK, D O NOT EXPOSE THISPRODUCT TORAINORMOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).
Page 3 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TOPART 15 O F THE FCC RULES. THESE LIMITSARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION.
Page 4 IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating POWER CORDS -- Do not allow anything to rest on the instructions shouldbereadbeforetheappliance is operated. power cord.Donotlocatevideo monitor or equipment where the cordwillbeabused by personswalkingonit. RETAIN INSTRUCTIONS -- The safety and operating instructions shouldberetainedforfuturereference.
Page 5: Table Of Contents
TABLE OF CONTENTS Features Installation Connections Operating Instructions - Controls Backside Connections User Controls - Menu Operations Specifications OSD Language Chart FEATURES - Go-Anywhere Professional Color LCD Monitor High Bright, High Quality Picture NTSC and PAL in Composite and Y/C Thin and Lightweight, Rugged Metal Cabinets Many Mounting and Installation Options Low-Power AC or 12 volts DC Operation...
Page 6: Installation
INSTALLATION LCD monitors may be mounted in any position or orientation. Considerations for mounting include regard for how the monitor is going to be used, routing of connecting cords, and locations away from heat sources (including direct sunshine on the black case). Mounting hard points include 10-32 and -20 threaded inserts (see backside of monitor photo).
Page 7 Click Add New Hardware Click Next - 7 -...
Page 8 Click Next Click Next after selecting No, the device isn't in the list - 8 -...
Page 9 Click Next after selecting No, I want to select the hardware from a list Click Next after selecting Monitors - 9 -...
Page 10 Click Have Disk... Insert the supplied 3.5 floppy disk to A Drive. Select - 10 -...
Page 11 Select Next after selecting the same model which you purchased. Click Finish - 11 -...
Page 12: Connections
CONNECTIONS To make a normal connection to the monitor, bring a cord from a camera or other video source to one of the BNC jacks or from a PC to the PC jack on the back of the monitor. Either the left or right BNC jack can be used for input. The other jack may be optionally connected to another user of the same signal.
Page 13: Operating Instructions - Controls
OPERATING INSTRUCTIONS - Controls Control Buttons, Video Monitor Front. Use a cloth dampened with a mild cleaner to clean the screen. 1. Power On/Off When power is applied, the monitor will come on. This button then turns the monitor on and off. 2.
Page 14: Backside Connections
BACKSIDE CONNECTIONS Typical Color LCD Video Monitor Back 1. Input Connector Wall Recessed wiring location for all cables. Place the plug from the supplied table- top power supply into the DC 12V connector. Input at the monitor is 12 volts DC from the TT universal AC supply (100-240 VAC, see specifications table for AC/DC details).
Page 15: User Controls - Menu Operations
USER CONTROLS - Menu Operations Brightness : 25 Contrast : 41 Clock : 125 Phase : 16 Auto : Stop H Position V Position RGB Offset Volume : 10 Language : English Input : PC Recall : No Pushing the MENU button will bring up the Menu shown above.
Page 16 Language: English sets the OSD language of the menu in English. Deutsche sets the OSD language of the menu in German. Fran ais sets the OSD language of the menu in French. Italiano sets the OSD language of the menu in Italian. Espa ol sets the OSD language of the menu in Spanish.
Page 17 Sharpness sets the desired sharpening enhancement to the picture. Tint adjusts all the colors on the screen, but is most noticeable to the eye in reds and yellows, and is also usually set for pleasing face tones. (Appears in NTSC mode only).
Page 18: Specifications
SPECIFICATIONS-15inch LCD panel 15.0 inches TFT LCD Panel Active display area (Diagonal) 15.0 inches Pixel format 1024(H) x 768(V), RGB vertical stripe Pixel pitch 0.297mm x 0.297mm Color depths 6 Bit / 262,144 Colors Contrast ratio 300:1 (Typical) Brightness 250 cd/m (Typical) Viewing angles (L/R/U/D) 70/70/55/60 (Typical) Light source / Lifetime...
Page 19 Bright, Contrast, Tint, Color, Sharpness, etc User controls English / French / German / Italian / Spanish / Polish OSD Language 12VDC 5% 3.0A Power requirement 30 Watts Power consumption Barrel, 5.5/2.5mm(+ Center) DC power connector IEC-320 Male, 100 - 240VAC AC power connector 349.2mm(W) x 285.7mm(H) x 44.5mm(D) Dimensions...
Page 20 SPECIFICATIONS-17inch LCD panel 17.0 inches TFT LCD Panel Active display area (Diagonal) 17.0 inches Pixel format 1280(H) x 1024(V), RGB vertical stripe Pixel pitch 0.297mm x 0.297mm Color depths 6 Bit / 16,700,000 Colors Contrast ratio 350:1 (Typical) Brightness 200 cd/m (Typical) Viewing angles (L/R/U/D) 80/80/80/80 (Typical) Light source / Lifetime...
Page 21 Bright, Contrast, Tint, Color, Sharpness, etc User controls English / French / German / Italian / Spanish / Polish OSD Language 12VDC 5% 4.0A Power requirement 41 Watts Power consumption Barrel, 5.5/2.5mm(+ Center) DC power connector IEC-320 Male, 100 - 240VAC AC power connector 398mm(W) x 333mm(H) x 56mm(D) Dimensions...
Page 22 SPECIFICATIONS-20.1inch LCD panel 20.1 inches TFT LCD Panel Active display area (Diagonal) 20.1 inches Pixel format 640(H) x 480(V), RGB vertical stripe Pixel pitch 0.6375mm x 0.6375mm Color depths 8 Bit / 16,7M Colors Contrast ratio 400:1 (Typical) Brightness 400 cd/m (Typical) Viewing angles (L/R/U/D) 70/70/55/65 (Typical) Light source / Lifetime...
Page 23 User controls Bright, Contrast, Tint, Color, Sharpness, etc English / French / German / Italian / Spanish / Polish OSD Language Power requirement 12VDC 5% 5.0A Power consumption 60 Watts Barrel, 5.5/2.5mm(+ Center) DC power connector AC power connector IEC-320 Male, 100 - 240VAC 467mm(W) x 380mm(H) x 56mm(D) Dimensions(W x H x D) With Stand Mounting...
Page 24: Osd Language Chart
OSD LANGUAGE CHART English German French Italian Spanish Polish No Signal No Signal No Signal No Signal No Signal No Signal NTSC NTSC NTSC NTSC NTSC NTSC Volume Lautstarke Volume Volume Volumen Glosnosc Contrast Kontrast Contrast Contrasto Contraste Kontrast Brightness Helligkeit Luminosite Luminosita...
Page 25 BRACKET FEATURES-Optional - Light duty wall & ceiling mount - Adjustable swivel head - Die cast and aluminum - Cable feed through hole conceals wiring - PT 1 threaded pipe - Maximum load 20 lb ( 9.0kg ) The Bracket is light duty wall & ceiling mount designed for use with LCD monitor.
Page 26 STAND FEATURES-15",17" Optional 1. SCREW 2. METAL PLATE 3. HINGE 4. HINGE_COVER 5. STAND In order to install the desk-top stand at LCD monitor properly, First, fix the metal plate provided to LCD monitor with 4 screws of M4 size and screw the desk-top stand to the metal plate. Lastly, put the hinge cover on the hole located on the rear side of LCD monitor .
Page 28 COLOR 15.0"/17.0"/20.1" TFT-LCD MONITOR VIDEO / PC 50301479A...
