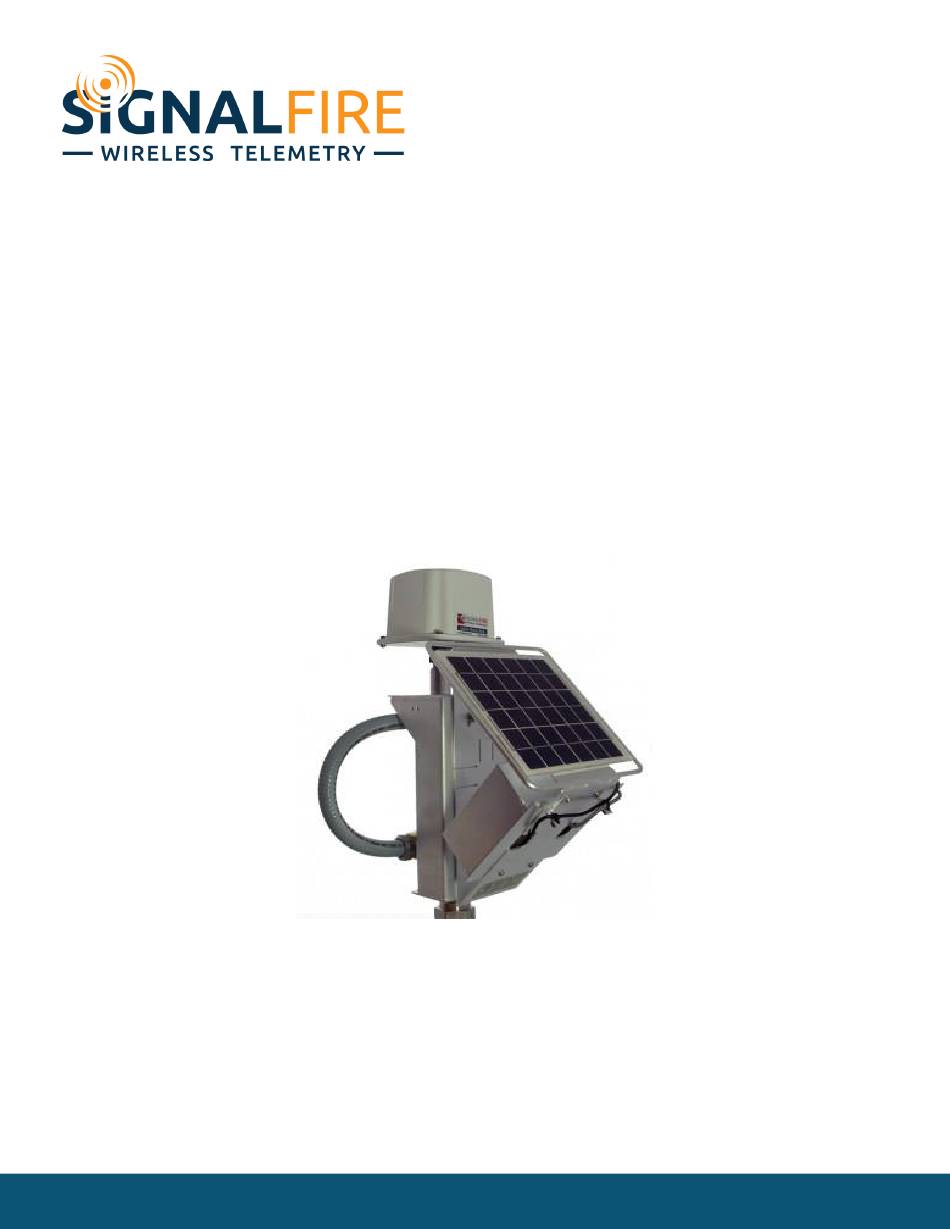

Sentinel Solar system shown with mounting bracket kit and Sentinel Wireless Node
The SignalFire C1D1 Solar System is an Intrinsically Safe device with the following features:
-
Complete battery and solar charging system
-
Integrated mounting bracket for mounting on a horizontal or vertical pole
-
High efficiency solar charging circuit
-
Fully encapsulated battery pack and charging circuit
Rev 1.5
Interface Manual
Sentinel Solar System
SignalFire Number: SENTINEL-HCSOLAR
SignalFire Telemetry
1
Advertisement
Related Manuals for SignalFire Sentinel Solar System
Summary of Contents for SignalFire Sentinel Solar System
- Page 1 SignalFire Number: SENTINEL-HCSOLAR Sentinel Solar system shown with mounting bracket kit and Sentinel Wireless Node The SignalFire C1D1 Solar System is an Intrinsically Safe device with the following features: Complete battery and solar charging system Integrated mounting bracket for mounting on a horizontal or vertical pole...
-
Page 2: Specifications
WARNING: The use of any parts not supplied by the manufacturer violates the safety rating of the equipment. The associated apparatus provides intrinsically safe outputs. L’appareil associé fournit des sorties à sécurité intrinsèque. WARNING: If the solar system is used the internal battery source may not be connected! Rev 1.5 SignalFire Telemetry... - Page 3 SignalFire Telemetry Hudson, MA USA S/N: 00000001 www.signal-fire.com Model: SENTINEL-SOLAR-9.0 CLASS I, DIVISION 1 GROUPS C, D ENTITY PARAMETERS TEMP CODE: T3 [Exi] OUTPUT: AMBIENT TEMP: –40ºC to +60ºC Voc = 5.9 Vdc CONFORMS TO UL STD 913 Isc = 3.06 A CERTIFIED TO Pout = 0.8 W...
- Page 4 Wiring Requirements To ensure intrinsic safety is maintained it is required that the installer follow these guidelines when connecting sensors to the SignalFire node. The sentinel node must be purchased for use with the solar system. The “solar ready” Sentinel node has a cable gland for the power cable.
- Page 5 The system should be installed with the solar panel facing south with a good view of the sky. Mount the system so that the mounting side of the triangle is vertical and the battery box is at the bottom. SignalFire also supplies a varity of mounting kits for various sensors. Contact SignalFire or visit http://www.signal-fire.com/sentinel-bracket-kits/ for information.
- Page 6 Cleaning Instructions The solar panel and bracket may be cleaned with water, mild soap, and a damp cloth as needed. High pressure washing is not recommended. Technical Support Contact Information SignalFire Telemetry 140 Locke Dr Suite B Marlborough, MA 01752 (978) 212-2868 support@signal-fire.com...
