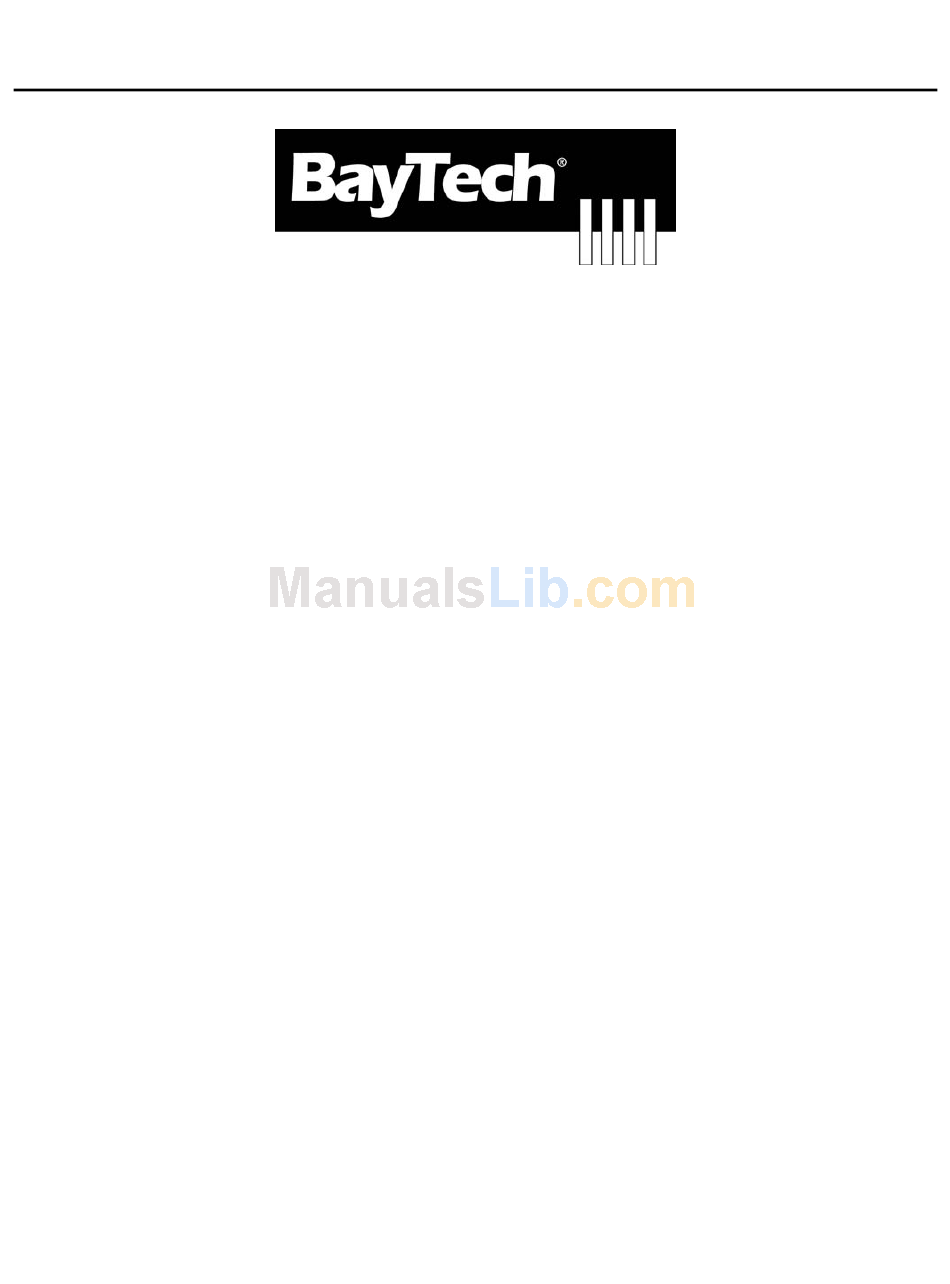

- Page 1 DS Series Manual DATA SWITCH DS62 Host Ethernet Module & DS62-MD4 Host Ethernet-Modem Module BayTech Manual Publication Revision: May 2008...
- Page 2 DS62-Network, DS62-MD4 Network/Modem Host Module Copyright 2007 by Bay Technical Associates, Inc. BayTech, is a registered trademarks of Bay Technical Associates, Inc. Windows 2000®, Windows XP® are products and registered trademark of Microsoft Corporation. Tera Term is a product and registered trademark of Vector, Inc.
-
Page 3: Table Of Contents
DS62-Network, DS62-MD4 Network/Modem Host Module ABOUT THIS OWNER’S MANUAL ...5 Connection Description ...6 EIA-232 SERIAL CONNECTION...6 Internal MODEM CONNECTION...6 10/100 BASE-T NETWORK PORT CONNECTION ...6 Installation...6 Power ...7 QUICK START: HOST Module...7 Serial Setup...8 Attention Character...10 Login Setup Menu ...10 Network Port Configuration ...11 Cabling ...12 RJ-45 Cables and Adapters ...12... - Page 4 DS62-Network, DS62-MD4 Network/Modem Host Module DS Management ...35 Internal Alarm Threshold ...35 External Alarm Threshold ...36 Outlet Groups ...37 Firmware / Config Download...39 Enable Firmware Upgrade...39 Enable SSL Cert Upload ...40 Enable Configuration File Upload...40 Restore Configuration Defaults ...41 Get Current Configuration File...41 Display Configuration Error Log ...42 DS62-MD4 Modem Configuration Menu ...42 Modem Port Configuration...42...
-
Page 5: About This Owner's Manual
Associates, Inc reserves the right to make changes to the products described in this document without notice. Bay Technical Associates, Inc does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. -
Page 6: Connection Description
DS62-Network, DS62-MD4 Network/Modem Host Module Connection Description BayTech's host communication module provides an interface that controls user access to the DS Series data switch and other DS Series connected modules. EIA-232 SERIAL CONNECTION The DS-Series host communications modules have an RJ-45 port which uses an 8-pin crossed modular cable to connect to a local EIA-232 device such as a computer terminal or external modem. -
Page 7: Power
AC current rating for the selected model QUICK START: HOST Module by Bay Technical Associates For those Administrators who have requested the bare minimum for this type of equipment, follow these steps exactly. If this is a new unit shipped directly from Baytech, follow the steps. If this is a previously own unit, perform a factory reset to clear out any users and passwords still in the unit. -
Page 8: Serial Setup
DS62-Network, DS62-MD4 Network/Modem Host Module 5. Select ‘C’ for the configuration menu. 6. Select the HOST module. You should see a menu similar to (Figure 2). 7. Select the number for ‘Login Setup’ option. You should see a menu similar to (Figure 3). 8. - Page 9 Logout...T Enter Request :c Select option ‘C’ for the configuration menu. Select the DS62 module option and the following menu is displayed: Figure 2 Copyright(C) Bay Technical Associates 2006 DS62 Ethernet Host module Revision F 2.10.05 Hardware 1.01 Status...1 Serial Port Configuration...2 Serial Port Device Name...3...
-
Page 10: Attention Character
DS62-Network, DS62-MD4 Network/Modem Host Module Attention Character If no Baytech power strips are to be controlled through this Data Server, skip this step. Pressing the Attention Character 5 consecutive times will access the network main menu. The Default is a semi- colon (;). -
Page 11: Network Port Configuration
DS62-Network, DS62-MD4 Network/Modem Host Module Radius Configuration Radius is used to authenticate logins for the serial and the network ports if passwords and user names are enabled on the DS. If the Radius server rejects either the username or password or does not respond, the DS will display “Invalid Password”. -
Page 12: Cabling
DS62-Network, DS62-MD4 Network/Modem Host Module Cabling RJ-45 Cables and Adapters DS62 EIA-232 RJ-45 Signal EIA 232 Signal Signal Direction Adapters Signals Listed are the pin specifications for the BayTech cable and adapters and the terminal COM ports: Signal RS-232 Port (DS) Handshake, Line Driver Inactive State = High: +12V when power is applied. -
Page 13: Adapters
DS62-Network, DS62-MD4 Network/Modem Host Module Adapters 9FRJ45PC (With Cisco Interface) 9FRJ45PC-1 (Without Cisco Interface) RJ08X007 Figures 1 and 2 provide visual representation of an RJ-45 receptacle and plug. -
Page 14: Detail Operations And Configurations
Configuration menu and will be asked to ‘Accept’ changes. If you type ‘Y’ for YES and press <cr>, the changes take effect immediately for the serial port. For the Ethernet port you must do a Unit Reset to get the changes to take effect. (C) 2005 Bay Technical Associates Current configuration Make Changes external modem connections, allow 10 seconds for reset. -
Page 15: Unit Configuration Menu
DS74 module #2...2 DS-RPC module #5...3 Enter Request : Select the number of the host module and the following menu is displayed: Copyright(C) Bay Technical Associates 2006 DS62-MD4 Ethernet Host module Revision F 2.10.05 Hardware 1.01 Status...1 Serial Port Configuration...2 Serial Port Device Name...3... -
Page 16: Ip Address
DS62-Network, DS62-MD4 Network/Modem Host Module Installed Modules :01,02,05 Attention Character is ... ; Disconnect Time Guard is... Disabled Port ID Echo is... Disabled Module Name is... DS62 Network Connectivity & Login Configuration: Ethernet Address... IP Address... 0.0.0.0 Subnet Mask... 0.0.0.0 Default Gateway... -
Page 17: Enter Request
DS62-Network, DS62-MD4 Network/Modem Host Module Serial Port Configuration Handshaking, Baud Rate, Word Size, Stop Bits, and Parity are configured through either the serial or Ethernet ports using the menus. RTS and DTR Line Drivers can only be configured through the phone line via a modem. -
Page 18: Baud Rate
DS62-Network, DS62-MD4 Network/Modem Host Module via binary, it is very likely that these values could be transmitted as data and the transmission would fail. 2. Hardware Handshaking: This style uses actual hardware lines. Like the TX and Rx lines, the RTS/CTS and DTR/DSR lines work together. -
Page 19: Stop Bits
DS62-Network, DS62-MD4 Network/Modem Host Module Stop Bits The Stop Bits are used to signal the end of communication for a single packet. Since the data is clocked across the lines and each device has its own clock, it is possible for the two devices to become slightly out of sync. -
Page 20: Serial Port Device Name
DS62-Network, DS62-MD4 Network/Modem Host Module DTR Line Driver Inactive State is: High High ? (Y/N, CR for no change): Serial Port Device Name Select a port and type the new name. Current device name: EIA-RS232 Enter device name for serial port ((1 - 16 char., CR to end) : Attention Character Pressing the Attention Character 5 consecutive times will access the network main menu. -
Page 21: Login Setup Menu
DS62-Network, DS62-MD4 Network/Modem Host Module Port ID Echo is...Disabled Disable Port ID Echo...1 Use Module, Port Number...2 Use Device Name...3 Exit...X,CR Enter Request : Login Setup Menu This menu allows the admin user to enable or disable the Access Control, Manage Users, Direct Port Connection, Radius, and TACACS configuration. -
Page 22: Add User
DS62-Network, DS62-MD4 Network/Modem Host Module User Management Menu To change user password or port access, enter number of user. To add/delete user, select appropriate menu choice. SNMP V3 requires passwords that are between 8 and 31 characters long Enter request, CR to exit menus. A)...Add user 1)...root Enter Request :... - Page 23 DS62-Network, DS62-MD4 Network/Modem Host Module Select the Change Password option to change the user password, the Host Module displays the following: User name: root Enter old password (CR if none)>******* Enter new password (<= 31 characters)>******* Confirm by re-entering new password>******* Password change successful.
-
Page 24: Delete User
DS62-Network, DS62-MD4 Network/Modem Host Module Enter port list (mod.port,mod.port), ALL for all ports, NONE for no ports: 2.1,3.2,3.3 Port access for user1 X = has access | mod 2 | mod 3 | | 1234 | 1234 Enter an incorrect port the DS displays: Enter port list (mod.port,mod.port), ALL for all ports, NONE for no ports: Input Error Delete User... -
Page 25: Tacacs Configuration
DS62-Network, DS62-MD4 Network/Modem Host Module Radius login is...Disabled Enable ? (Y/N), CR for no change) : Select “Radius Server Address” to assign a specific radius server IP addresses. Radius Server IP Address is: 0.0.0.0 Enter radius server address in dotted decimal form : Select “Radius Backup Server Address”... - Page 26 DS62-Network, DS62-MD4 Network/Modem Host Module To enable TACACS for logins do the following: • Enable TACACS from the TACACS configuration menu. • Enter the IP address of the TACACS server • Enter the IP address of the backup TACACS server if any. •...
-
Page 27: Network Port Configuration
DS62-Network, DS62-MD4 Network/Modem Host Module DS62 usernames as backup login is Disabled Enable ? (Y/N), CR for no change) : Select “TACACS Encryption Enable” to turn TACACS+ encryption off or on. Sending unencrypted TACACS packets is useful for troubleshooting but should not be used under normal operations. TACACS encryption is...Enabled Enable ? (Y/N), CR for no change) : Select “TACACS Server Port to assign a more secure port, default is TCP 49. -
Page 28: Subnet Mask
DS62-Network, DS62-MD4 Network/Modem Host Module Network setup : Ethernet Address... IP Address... Subnet Mask... Default Gateway... Connection Inactivity Timeout (mins): Disabled Carriage Return Translation: Enabled Break Length (msecs): DHCP is Disabled Telnet is Enabled SSH host keys are set to factory default IP Address...1 Subnet Mask...2 Gateway Address...3... -
Page 29: Gateway Address
DS62-Network, DS62-MD4 Network/Modem Host Module Select 2) to enter the Subnet Mask followed by <cr>. Failure to enter the address in the decimal form causes the DS to display the following until it is entered correctly. Default Subnet Mask is 0.0.0.0. Enter Subnet Mask in dotted decimal form : Gateway Address The Gateway is the address of a router to connect to other parts of a network. -
Page 30: Dhcp/Telnet/Ssh
DS62-Network, DS62-MD4 Network/Modem Host Module DHCP/Telnet/SSH Dynamic Host Configuration Protocol (DHCP) is a communications protocol that lets network administrators manage centrally and automate the assignment of Internet Protocol (IP) addresses in an organization's network. Default setting is DISABLED. DHCP is...Disabled Enable ? (Y/N), CR for no change) : Telnet is a user command and an underlying TCP/IP protocol for accessing remote devices. - Page 31 DS62-Network, DS62-MD4 Network/Modem Host Module Filter Management Menu Enter request or CR,X to exit menu. A)...Add Rule E)...Enable IP Filtering D)...Delete Rule V)...View Rules F)...Flush Rules C)...Set Default Target Enter Request : Select A) to add a rule. Type an IP address, select whether to drop or accept the address. The DS will display the following: Please enter a single ip address filter or an ip address block in ip/<blockmask>...
-
Page 32: Snmp Configuration
DS62-Network, DS62-MD4 Network/Modem Host Module Are you sure you want to delete all filters? (Y/N) Enter Request :y All filers have been deleted. Select D), Delete Rule to delete a specific rule. The DS displays: Delete Filter Menu Enter rule number to delete rule, 'M' to view more rules, or 'X' to exit menu. -
Page 33: Read/Write Community String
DS62-Network, DS62-MD4 Network/Modem Host Module Accept changes ? (Y/N) : The SNMP Trap Host is a trap management station that receives and processes traps. Traps are system alerts that the Baytech device generates when certain events occur. By default, no trap manager is defined, and no traps are issued. -
Page 34: Web Server Configuration
DS62-Network, DS62-MD4 Network/Modem Host Module If you have SNMPv3 software, only the newer firmware will have this option. Selecting this option the DS displays, Default is Disabled. SNMPv3 only is DISABLED. Enable? (Y/N): Select this option to enable a SNMP trap to be sent if an authentication attempt failed, the DS displays, Default is Disabled. -
Page 35: Module Name
DS62-Network, DS62-MD4 Network/Modem Host Module Web Connection Inactivity Timeout is Enter timeout, in minutes (<=120, 0 to disable) : Module Name This option allows the admin users to change the modules name. Module Name is: DS62-MD4 Enter Module Name (32 chars max). DS Management These options are independent of the power strip’s Alarm Thresholds. -
Page 36: External Alarm Threshold
DS62-Network, DS62-MD4 Network/Modem Host Module Sel M/P Identifier 1 2/1 DS3ADE Enter the Selection number and the unit will display one of the following dependent on the alarm: Enter threshold value in tenths of unit measurement (degrees,%,etc.): Enter voltage threshold value in tenths of a volt: Enter low current threshold value in tenths of an amp: NOTE: M/P = Module number and Port number;... -
Page 37: Outlet Groups
DS62-Network, DS62-MD4 Network/Modem Host Module Option 1 and 3 sets the temperature levels to the tenth of a degree. Option 2 and 4 enable the SNMP traps to be sent if the corresponding threshold had been exceeded. Sel Type 1 Contact 2 Temperature External Sensor2 999/En 320/En N/A Select 2), ‘All Sensors’... - Page 38 DS62-Network, DS62-MD4 Network/Modem Host Module Select 1), List Outlet Groups to list any outlet groups, the DS display: # Group Name 1 Router GP-A 2 Server Row 3 Radius 4 Server backup Select 2), Add Group to add a specific outlet group, the DS display: List up to four outlets in the following form mod.port.outlet,mod.port.outlet 2.1.1,2.1.2,2.1.3,2.1.4 The DS displays the following and asks for a name for the new Group:...
-
Page 39: Firmware / Config Download
DS62-Network, DS62-MD4 Network/Modem Host Module Delete ALL outlet groups? (Y/N): y Note: There will be no confirmation the groups have been deleted. Select option 1 from the Outlet Group Configuration to verify all outlet groups were deleted. Group Name Strike ENTER to continue Firmware / Config Download This option allows the admin to flash upgrade the firmware to the Host module through an FTP client. -
Page 40: Enable Ssl Cert Upload
DS62-Network, DS62-MD4 Network/Modem Host Module Enable SSL Cert Upload Selecting this option allows the admin to upload an SSL Certificate to the DS unit via ftp. The filename of the certificate must be (ssl.pem). An SSL certificate is used by the unit to create secure web connections. -
Page 41: Restore Configuration Defaults
DS62-Network, DS62-MD4 Network/Modem Host Module ***error in config upload file or transfer operation*** NOTE: This part of the program is derived from the DS62 module program, thus the DS62 reference. Restore Configuration Defaults This option allows the admin to restore the DS configuration to factory defaults. NOTE: The network default IP Address, Subnet, and Gateway is 0.0.0.0 Select Restore Configuration Defaults and the DS displays the following: ENABLING THIS WILL ERASE ALL CONFIGURATION BACK TO FACTORY... -
Page 42: Display Configuration Error Log
DS62-Network, DS62-MD4 Network/Modem Host Module /var/confupload file created and ready for ftp retrieval Waiting to send configuration file ---------------------------------------------------------------------------- ------------------------------- At this point FTP the file to your computer. Successful file retrieval and the DS displays: get of configuration file complete Unsuccessful file retrieval and the DS displays: ***error in config upload file or transfer operation*** Display Configuration Error Log... - Page 43 DS62-Network, DS62-MD4 Network/Modem Host Module +----+------+-----------------+------+------+------+------+---------+----+----+ |Port|Device| Device | Type | Name +----+------+-----------------+------+------+------+------+---------+----+----+ 2 | MODEM| Host V90 Modem +----+------+-----------------+------+------+------+------+---------+----+----+ Handshaking...1 Baud Rate...2 Word Size...3 Stop Bits...4 Parity...5 Enter Request : Select “Handshaking” and the DS displays with the following: Default is None Select handshaking: 1 For None...
-
Page 44: Rings To Auto Answer
DS62-Network, DS62-MD4 Network/Modem Host Module Select stop bits: 1 For 1 2 For 2 Enter Request : Select “Parity” the DS displays the following: Default is None. Select parity: 1 For None 2 For Even 3 For Odd Enter Request : Rings to Auto Answer Select “Rings to Auto Answer”... -
Page 45: Status Menu
DS62-Network, DS62-MD4 Network/Modem Host Module Modem Device Name: Host V90 Modem Enter Device Name (<= 16 characters): Caution: Once you make a change to any of the Configuration options, you have to back out of the Configuration menu and will be asked to Accept changes. Accept changes ? (Y/N) :y Changes accepted. -
Page 46: Logged Users
DS62-Network, DS62-MD4 Network/Modem Host Module eth0 Link encap:Ethernet inet addr:192.168.2.136 UP BROADCAST RUNNING MULTICAST RX packets:0 errors:0 dropped:0 overruns:0 frame:0 TX packets:0 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:100 Base address:0x840 Link encap:Local Loopback inet addr:127.0.0.1 UP LOOPBACK RUNNING RX packets:0 errors:0 dropped:0 overruns:0 frame:0 TX packets:0 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 Press ENTER to continue... -
Page 47: Route Setup
• Genmask, It defines how closely an address must match the network destination, octet by octet, to use the route. • Iface, is the interface used to reach the network gateway, in this case the interface is the Baytech network card. Kernel IP routing table Destination Gateway 192.168.2.0... -
Page 48: Unitinfo Database
DS62-Network, DS62-MD4 Network/Modem Host Module Enter a PID number and press ‘Enter’ to terminate the process. IMPORTANT: If a process is terminated, the functionality of the unit maybe interrupted. To reestablish the unit’s functionality, power the unit off than back on. UnitInfo Database unitInfo->portUser 0 unitInfo->cfgUser 0... -
Page 49: Troubleshooting
DS62-Network, DS62-MD4 Network/Modem Host Module Troubleshooting: Functional Solutions: 1. No menu serial port: a. DS power is on and cable connected to EIA232 serial port. b. Verify the cable and adapter has the correct pin out, RJ08X007 and 9FRJ45PC-1. c. Cisco Rollover cables have the same pin out as RJ08X007. d. -
Page 50: Ds62 And Ds62-Md4 Reset Procedure
DS62-Network, DS62-MD4 Network/Modem Host Module e. From your PC create a terminal session to the serial port. Default setting is 9600, 8, 1, no parity, no flow. f. Type several random characters to see them echoed in the telnet/modem session. g. -
Page 51: Baytech Product Warranty
DS62-Network, DS62-MD4 Network/Modem Host Module BayTech Product Warranty Bay Technical Associates (BayTech) warrants that its products will be free from defects in materials and workmanship under normal use for a period of two years from date of purchase (or from date of shipment from BayTech if proof of purchase is not provided). -
Page 52: Technical Support
6. Information about cables and adapters being used (type, length, place of purchase) 7. The name of the software emulation program being used 8. Printout of the configuration status (if possible) Bay Technical Associates, Inc. 5239 A Avenue Long Beach Industrial Park Long Beach, MS 39560 Telephone: 800-523-2702 or 228.563.7334... -
Page 53: Return Authorization Process
NOTE: If the RA number is not on the outside of the box, the package will be returned back to the sender or will sit in Receiving until the customer calls in regarding status of RA. 4. Ship the unit by insured, prepaid carrier to the following address: Bay Technical Associates 5239 A Avenue Long Beach Industrial Park...
