MCR80 radiator
#6 X 7/8" Philips screw type B
Nylon washers

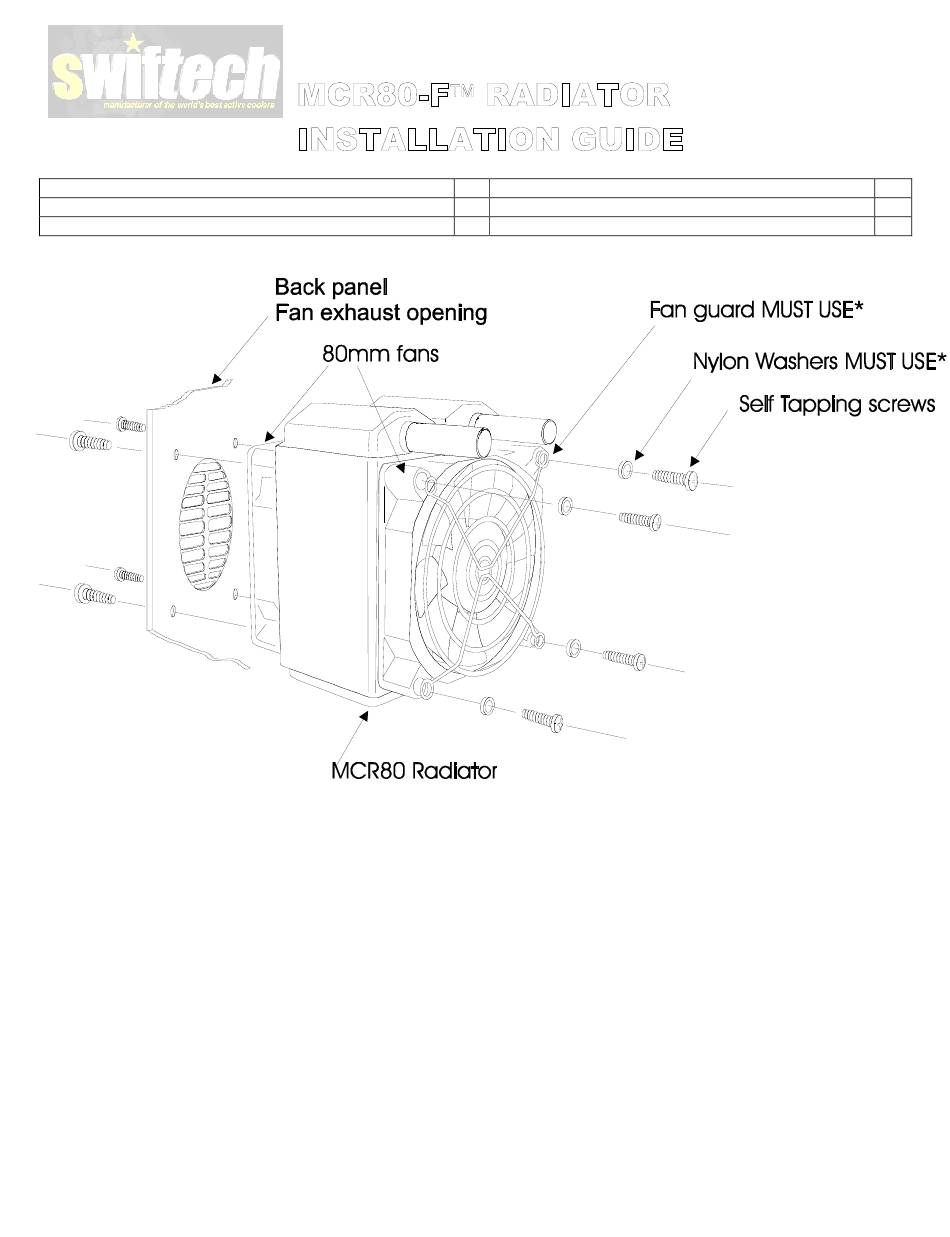

Note of caution regarding the inlet/outlet side of the radiator:
*
The fan guard and nylon washers MUST BE INSTALLED when using the provided self-
tapping screws. They are necessary to allow sufficient clearance between the tip of the
screws and the radiator core. Failure to use them will systematically result in permanent
damage to the radiator, as the screws will otherwise punch a hole in the core channels.
Users are advised that such damage is not covered under our warranty.
Likewise, if fans other than the provide 80x80x15mm fans are installed, users should
carefully check the clearance remaining between the retention screws and the radiator
core.
Page 1 of 2
th
Swiftech Inc., 1703 E. 28
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
Packing list
1
80mm fan guard
8
80x80x15mm fan
4
Double snap grip hose clamp size C
1
2
2
Advertisement
Table of Contents
Related Manuals for swiftech MCR80-F
Summary of Contents for swiftech MCR80-F
- Page 1 Swiftech Inc., 1703 E. 28 St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769 Packing list MCR80 radiator 80mm fan guard #6 X 7/8” Philips screw type B 80x80x15mm fan Nylon washers Double snap grip hose clamp size C...
- Page 2 Swiftech Inc., 1703 E. 28 St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769 Installing the tubing: It is usually easier to install the tubes before the radiator is fastened to the case. Cut sufficient length of tubing to connect to the rest of the circuit and tighten the clamps to the radiator inlet and outlet.
