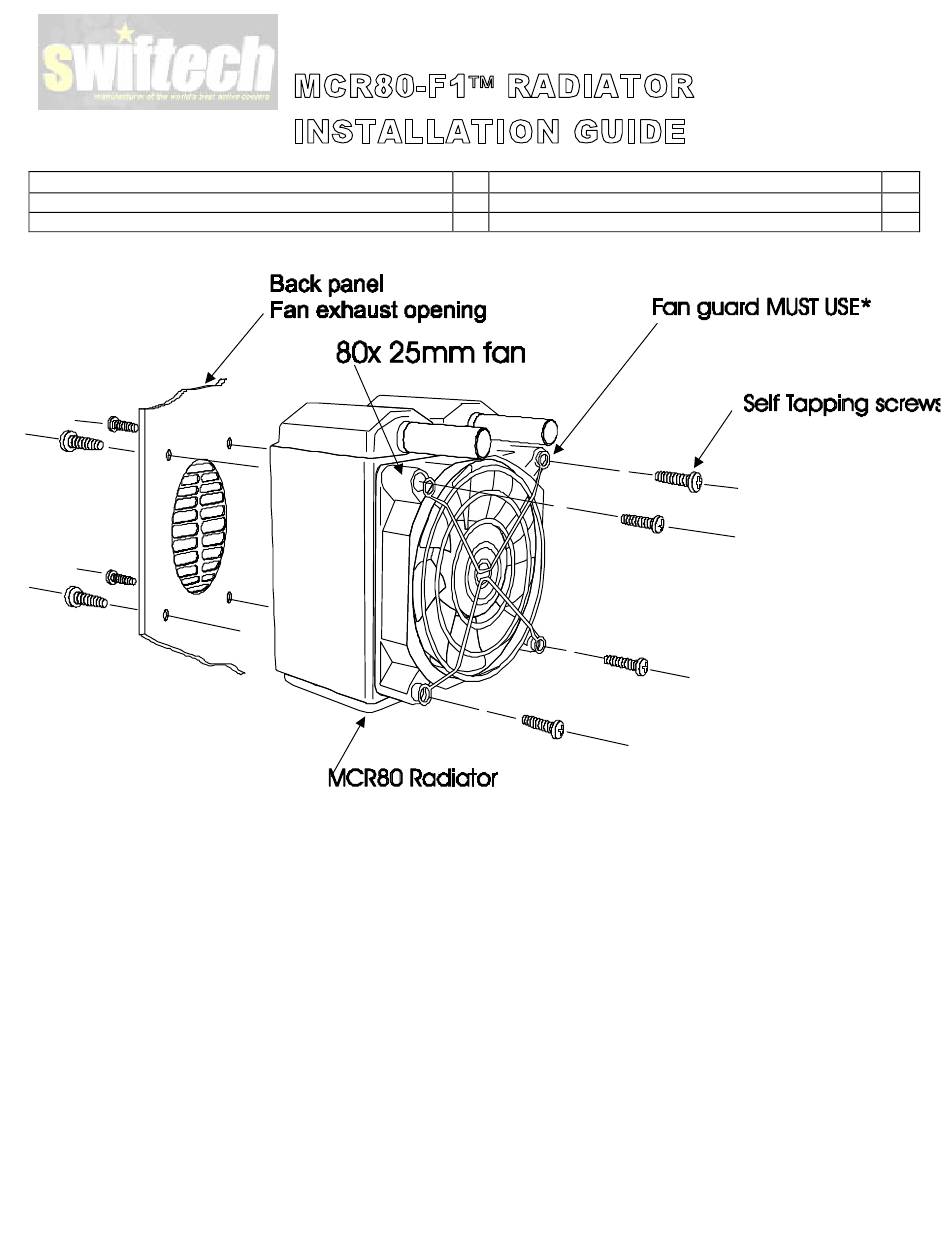

MCR80 radiator
#6 X 1 1/4" Philips screw type B
#6 x 3/8" Philips screw type B
Note of caution regarding the inlet/outlet side of the radiator:
*
The fan guard MUST BE INSTALLED when using the provided self-tapping screws. It is
necessary to allow sufficient clearance between the tip of the screws and the radiator
core. Failure to use the fan guard will systematically result in permanent damage to the
radiator, as the screws will otherwise punch a hole in the core channels. Users are
advised that such damage is not covered under our warranty.
Likewise, if fans other than the provide 80x80x25mm fans are installed, users should
carefully check the clearance remaining between the retention screws and the radiator
core.
Page 1 of 2
th
Swiftech Inc., 1703 E. 28
Packing list
1
80mm fan guard
4
80x80x25mm fan
4
Worm-drive clamps
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
1
1
2
Advertisement
Table of Contents
Related Manuals for swiftech MCR80-F1
Summary of Contents for swiftech MCR80-F1
- Page 1 Swiftech Inc., 1703 E. 28 St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769 Packing list MCR80 radiator 80mm fan guard #6 X 1 1/4” Philips screw type B 80x80x25mm fan #6 x 3/8” Philips screw type B...
-
Page 2: Electrical Connection
Swiftech Inc., 1703 E. 28 St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769 Electrical connection: Once the radiator is installed inside the case, the final step is to connect the molex connector to your computer power supply.
