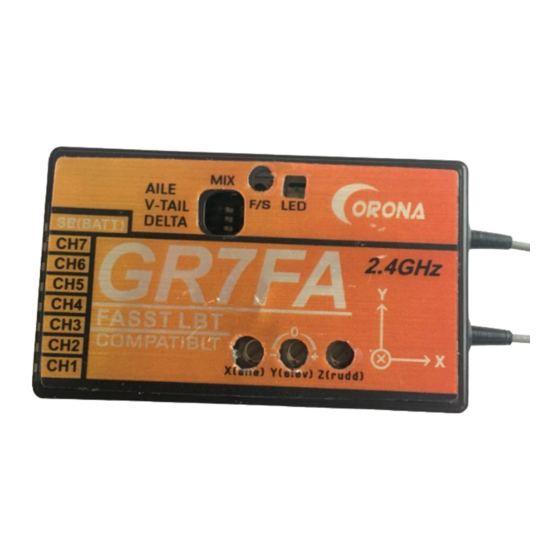

CORONA GR7FA Instruction Manual

Thank you for purchasing CORONA's GYRO-Embedded FASST compatible receiver. This
production can supply enhancement smooth with FASST link in the flight.

Compatibility:

CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with
FUTABA FASST 2.4GHz transmitters, such as TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG,
10CG, 12FG,14SG,18MZ

Feature:

 Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer
 Independent simple gyro gain adjustment for Aileron, Elevator and Rudder
 S.BUS output support expanding servo channels.
 Support gyro function switch on and off in flying by Switching signal of CH5

Specifications:

 Voltage Range :3.6~8.5V
 Operating Current: 70mA max
 Operation temperature: -10~70 degC
 Latency: 14mS @ FASST multi-channel mode /16mS @ FASST 7ch mode
 Sensitivity: about -96dBm
 Weight: 16g

Bind procedure:


Turn on the FASST transmitter

Connect the battery to the receiver while pressing receiver's F/S button.

The Dual-color LED's continuous will cycle through the following:
o
Red LED light (searching radio signal)
o
Green LED light (acquired the radio signal)
o
Red LED off (bind ok)
o
Green LED flashes 10 times (ID store in memory)
o
Green LED lights solid (normally operation)

Installation Guide:

 Make sure that your plane has good status before installing GR7FA and other electrical device
on it.
 The receiver need to be firmly mounted near the gravity of the plane by double side tape,
refer to illustration below.

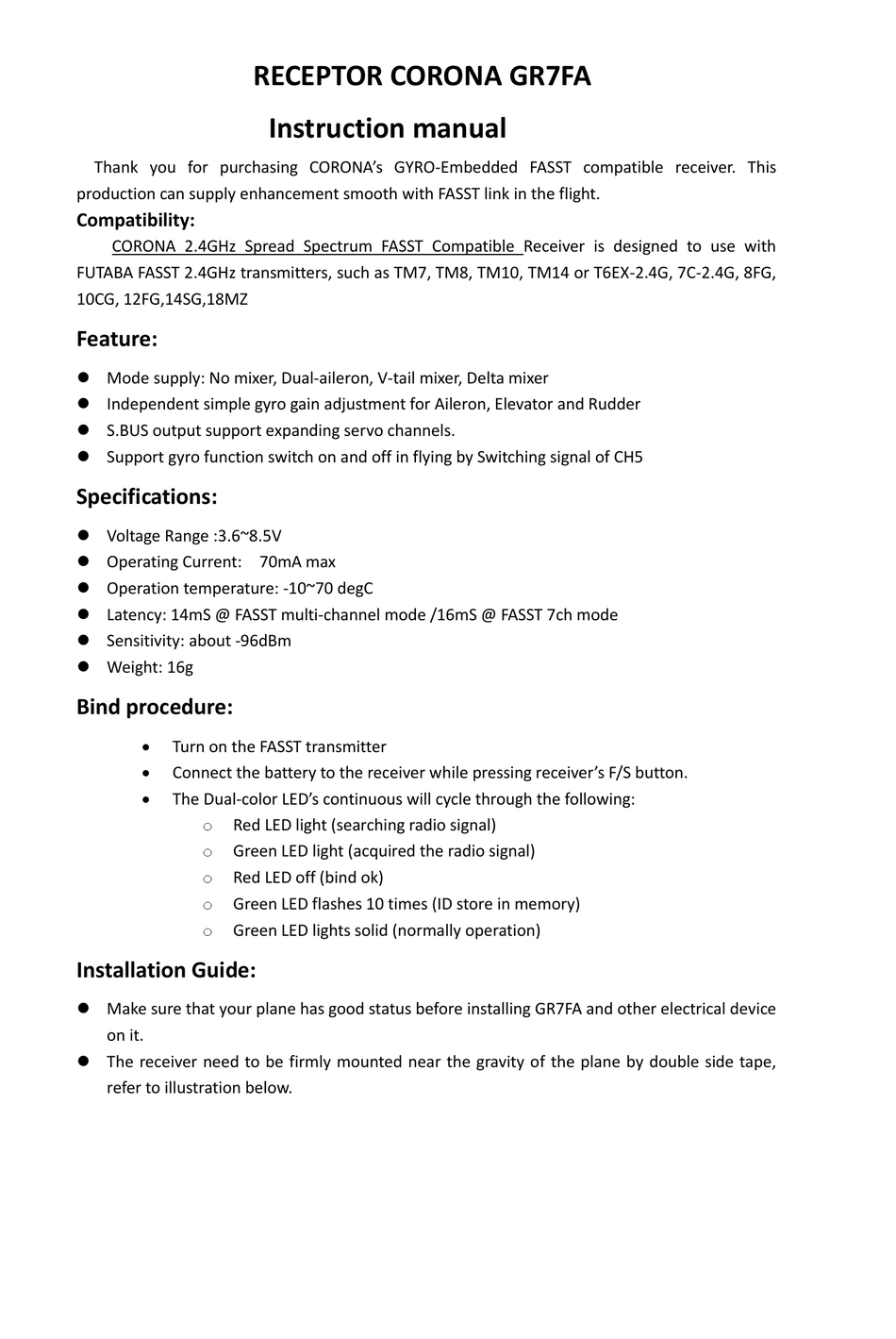

RECEPTOR CORONA GR7FA
