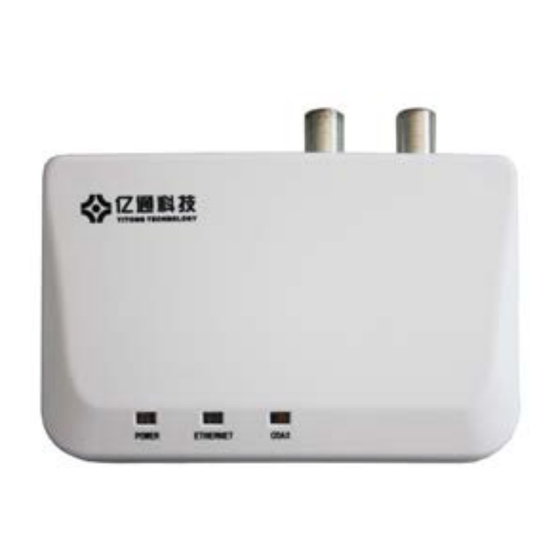

- Page 1 Coaxial-to-Ethernet ConversionKit Bonded MoCA 2.0 Network Adapter Model#YTMC-51N1-M2B User Guide...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Getting Started Introduction Package Contents Requirements Features Connecting the Adapters Connecting the First Adapter Connecting Additional Adapters Management Software Specifications Notices Warranty Important Safety Instructions FCC Class B Equipment Technical Support... -
Page 3: Getting Started
Bonded MoCA 2.0 Network Adapter Getting Started Introduction Congratulations for purchasing the Yitong Technology YTMC-51N1-M2B Bonded MoCA 2.0 Network Adapter. The Adapter is a simple, flexible solution for extending a home network. By leveraging the ubiquity of coaxial cabling within the modern home, the Adapter provides an Ethernet Internet port anywhere a coaxial connection is available. -
Page 4: Package Contents
Bonded MoCA 2.0 Network Package Contents • YTMC-51N1-M2B Bonded MoCA 2.0 Network Adapter • Coaxial cable • Power adapter • Quick Start Guide • Ethernet cable Requirements • Available coaxial port in installation areas • Available electrical wall socket in installation areas Features •... -
Page 5: Connecting The Adapters
Bonded MoCA 2.0 Network Connecting the Adapters Connecting the Adapter is a relatively simple process. First, connect one Adapter to the TV or set-top box, the broadband modem or router, and the coaxial network to establish the Internet signal. Then, additional Adapters can be installed throughout the home or office at any location Ethernet Internet access is needed, and an available coaxial port is available. - Page 6 Bonded MoCA 2.0 Network 4. Connect the other end of the coaxial cable installed in step 3 to the COM coaxial port on the side of the Adapter 5. Connect one end of an Ethernet cable into the Ethernet port of the modem/router.
- Page 7 Bonded MoCA 2.0 Network 7. Plug the provided power adapter into the Power port on the side of the Adapter. 8. Plug the other end of the power adapter (external, 5V/12V DC, 0.5A) into an electrical outlet. When complete, the setup should look similar to the figure below: The Internet signal is now being delivered across the coaxial network.
-
Page 8: Connecting Additional Adapters
Bonded MoCA 2.0 Network Connecting Additional Adapters If necessary, additional Adapter scan be placed at locations around the home or office that need an Ethernet Internet connection, but currently only have a coaxial port. To connect additional Adapters: 1. Find a coaxial wall port near the desired location and unplug the coaxial cable connected to the TV or set-top box. - Page 9 Bonded MoCA 2.0 Network 6. Connect the other end of the Ethernet cable into the Ethernet port on the side of the Adapter. 7. Plug the provided power adapter into the Power port on the side of the Adapter. 8. Plug the other end of the power adapter (external, 5V/12V DC, 0.5A) into an electrical outlet.
- Page 10 Bonded MoCA 2.0 Network When complete, the setup should look similar to the figure below: The device connected to the Ethernet port is now connected to the Internet via the coaxial network. Repeat this process to install additional Adapters through out the home.
-
Page 11: Management Software
Bonded MoCA 2.0 Network Management Software The adapter has software for management. Management software download link: http://en.yitong-group.com/products_list/pmcId=33.html You can use the software to inquire, manage and upgrade. You will able to set some planned configurations such as frequency range modification, transmission rate option, IP address configuration, Ethernet information... -
Page 12: Specifications
Bonded MoCA 2.0 Network Specifications Model Number YTMC-51N1-M2B LAN MoCA (v. 2.0; up to 1.4 Gbps throughput) LAN Ethernet Port 10/100/1000 (1) LAN Connections COM Frequency Range - Extended D-band: 1125MHz~1675MHz; Full Port Range: 5MHz~2150MHz CATV Frequency Range - 5MHz~1002MHz... -
Page 13: Notices
Bonded MoCA 2.0 Network Notices Warranty This product has a one-year Limited Hardware Warranty and 120-day free software updates from date of purchase. Local Law This Limited Warranty Statement gives the customer specific legal rights. The customer may also have other rights which vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world. -
Page 14: Fcc Class B Equipment
Bonded MoCA 2.0 Network Coaxial Cable If applicable, the coaxial cable screen shield needs to be connected to the Earth at the building entrance per ANSI/NFPA70, the National Electrical Code (NEC), in particular Section 820.93, “Grounding of Outer Conductive Shield of a Coaxial Cable, ”... -
Page 15: Technical Support
Bonded MoCA 2.0 Network Technical Support Trouble shooting The COAX status LED is not lit after installing 2 adapters: This indicates that no coax network has been formed. Try the following: Confirm that the COM port on the adapter is connected to the coax outlet on the wall Try another coax outlet in a different room to see if the adapters connect Check to see if a cable or terrestrial TV signal is available on both cable wall...
