Summary of Contents for Intech Micro 2100-R2
-

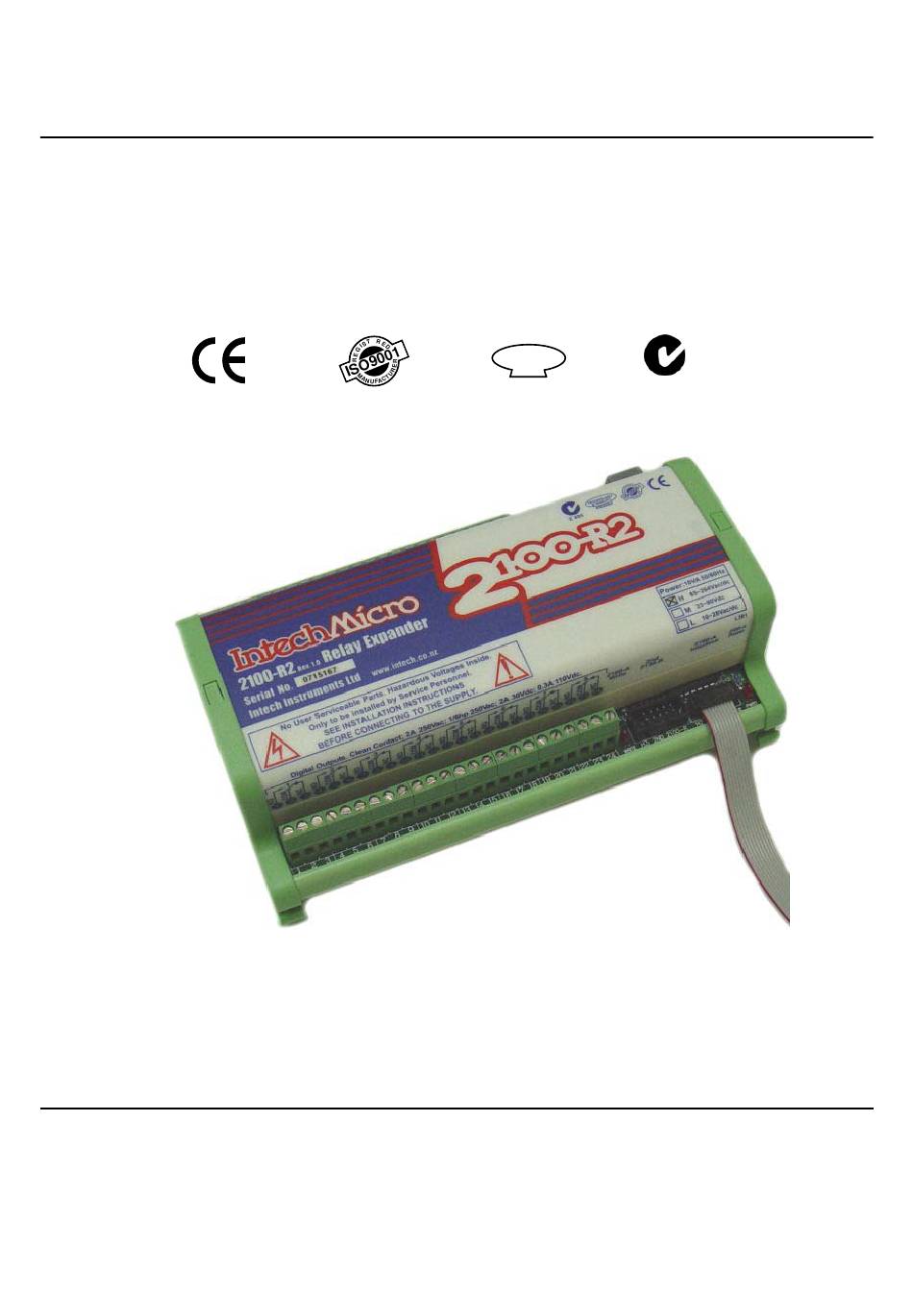

Page 1: Installation Guide
INTECH Micro 2100-R2 REV 1.0 TECHNOLOGY & QUALITY Z985 Installation Guide. 14.08-1... -
Page 2: Section A. Description, Ordering And Specifications
Section A. Description, Ordering and Specifications. 2100-R2 Installation Guide Index. Section A. Description, Ordering and Specifications. Index. Page 2 Features and Ordering Information. Page 3 Specifications. Page 4 Dimensions. Page 4 Terminals and layout. Page 5 Section B. Jumpers and LED Functions Tables. H1 Power Supply Settings. - Page 3 INTECH Micro 16 Channel Relay Ouput Expander. 2100-R2 Rev 1.0 Features. TECHNOLOGY & QUALITY 16 Digital, Isolated, Relay Outputs. Z985 Cascade option for a 2nd 2100-R2. Enables 32 Digital, Isolated, Relay Outputs. Cost Effective Output Expansion for 2100-A and 2100-A Easy Programming Via Microscan Maps.
- Page 4 -Weight 800g. Includes Packaging. Note 1. Contact INTECH INSTRUMENTS for more detailed programming information. Product Liability. This information describes our products. It does not constitute guaranteed properties and is not intended to affirm the suitability of a product for a particular application. Due to ongoing research and development, designs, specifications, and documentation are subject to change without notification.
- Page 5 Interface Connector H1: SUPPLY VOLTAGE H2. A16 SELECTOR Interface Connector Earth ( ) WARNING. Neutral (-) Power LED 1 High Voltages May be Phase (+) Present in This Area. Only adjust jumpers with power OFF. Intech INSTRUMENTS LTD www.intech.co.nz 14.08-5...
-
Page 6: Section B. 2100-R2 Jumpers And Led Functions Tables
Section B. 2100-R2 Jumpers and LED Functions Tables. CAUTION: Dangerous voltages may be present. The 2100-R2 has no user serviceable parts. Protective enclosure only to be opened by qualified personnel. Remove ALL power sources before removing protective cover. * Refer to ‘2100-R2 Terminals and Layout’ for the location of the following jumpers. 2100-R2 H1 Power Supply Settings. -
Page 7: Section C. Output Connection Diagrams
Section C. Output Connection Diagrams. 2100-A Relay Output Expansion - Using 2100-R2 Relay Expansion. Output relay expansion is available using the 2100-R2, 16 relay output expansion module. These relay outputs can only be used as general purpose alarms generated by the Scada. 2100-ARI 2100-R2 Relay Expander 2100-R2 Relay Expander... - Page 8 2100-A Rev1.1 Relay Output Expansion - Using 2100-R2 Relay Expansion. Output relay expansion is available using the 2100-R2, 16 relay output expansion module. This allows the 2100-A stand alone as a 16 channel controller / alarm unit. The 2100-R2 relay outputs can be used for any combination of control and alarm functions.
- Page 9 2100-R2 with 2100-A Relay Output Allocation Table for Single Action Controller. 16 controllers, one relay per controller. 2100-R2 Relay Output Connection Example for Single Action Controllers. Note 1. With relays NOT energized, and ‘Normally Off’ state 2100-R2 selected (refer Note 3) HEATING NO = Normally Open.
- Page 10 2100-R2 with 2100-A Relay Output Allocation for Dual Action Controller. Eight controllers, two relays per controller. 2100-R2 Relay Output Connection Example for Dual Action Contollers - Single 2100-R2. Power 2100-R2 HEATING 1 Controller 1 Controller 5 (Relay 1) (Relay 9) HEATING 5 COOLING 1 Controller 1...
- Page 11 2100-R2 Relay Output Connection Example for Dual Action Contollers - Cascaded 2100-R2s. Power 2100-R2 (Second) HEATING 9 Controller 9 Controller 13 (Relay 1) (Relay 9) HEATING 13 1 2 1 2 1 2 1 2 1 2 3 COOLING 9 1 2 3 Controller 9 Controller 13...
-
Page 12: Section D. Wiring And Installation
CAUTION: Dangerous voltages may be present. The 2100-R2 has no user serviceable parts. Protective enclosure only to be opened by qualified personnel. Remove ALL power sources before removing protective cover. Intech INSTRUMENTS LTD www.intech.co.nz Christchurch Ph: +64 3 343 0646...
