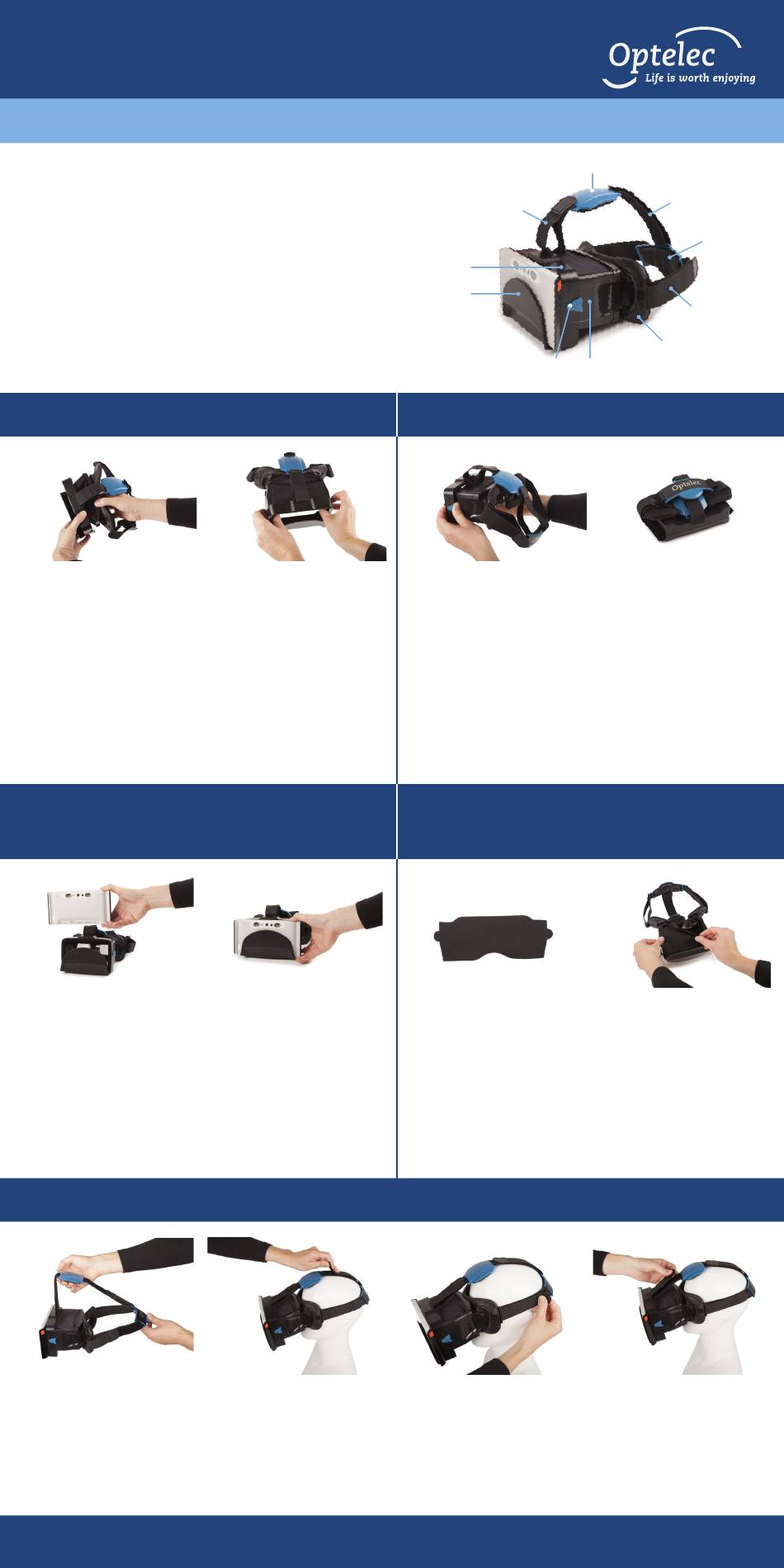

Optelec Compact 6 HD Wear Manual

Compact 6 HD Wear
Introduction
The foldable Compact 6 HD Wear accessory
turns your Compact 6 HD video magnifier
into a hands-free, wearable solution.
1. Front head band
2. Top head support
3. Back head band
4. Back head support
5. Side head bands
6. Front panel
Unfolding the Wear
Hold the face pad with
one hand and the front
panel with your other
hand. Unfold the Wear
so that the side walls
are parallel.
Inserting the Compact 6 HD
into the Wear
Slide the Compact 6
HD into the holder with
the Compact's screen
facing the front panel
and the camera facing
outward.
Head mounting
Make sure the
headbands are loose
enough to easily place
the Compact 6 HD
Wear over your head.
UDC-02236A
7. Holder
8. Release Button
9. Side walls
10. Soft Face Pad
Push the back of both
side walls into position
by pressing them
outwards, until you
hear them click behind
the lock. The side walls
are locked when the
Wear feels firm.
The unit is in the right
position when it is
placed symmetrically
in the holder and the
top of the Compact 6
HD is aligned with the
top of the front panel.
Adjust the back band
for comfortable
position and fit.
1
6
7
8
Folding the Wear
Release the side wall
locks simultaneously
by pushing the
triangular release
button in the direction
depicted by the arrow
and push the side
walls symmetrically
inside.
Covering the bottom of the
Wear
If you want to block
the light coming from
below, use the
supplied bottom cover.
The bottom cover is
adhesive Velcro and
sticks to the bottom of
the side walls.
Adjust the side bands
for comfortable
position and fit.
2
3
4
5
10
9
Slide the face pad
towards the front panel
to collapse the Wear
and fold the top head
support first and then
the back head support.
Turn the unit upside
down and place the
cover against the
walls. Make sure that it
covers the bottom and
stays in place.
Adjust the front band
to balance the weight
of the Compact 6 HD
Wear, and finish the
mounting.
