Revision: 2.0.0
2018-10-19

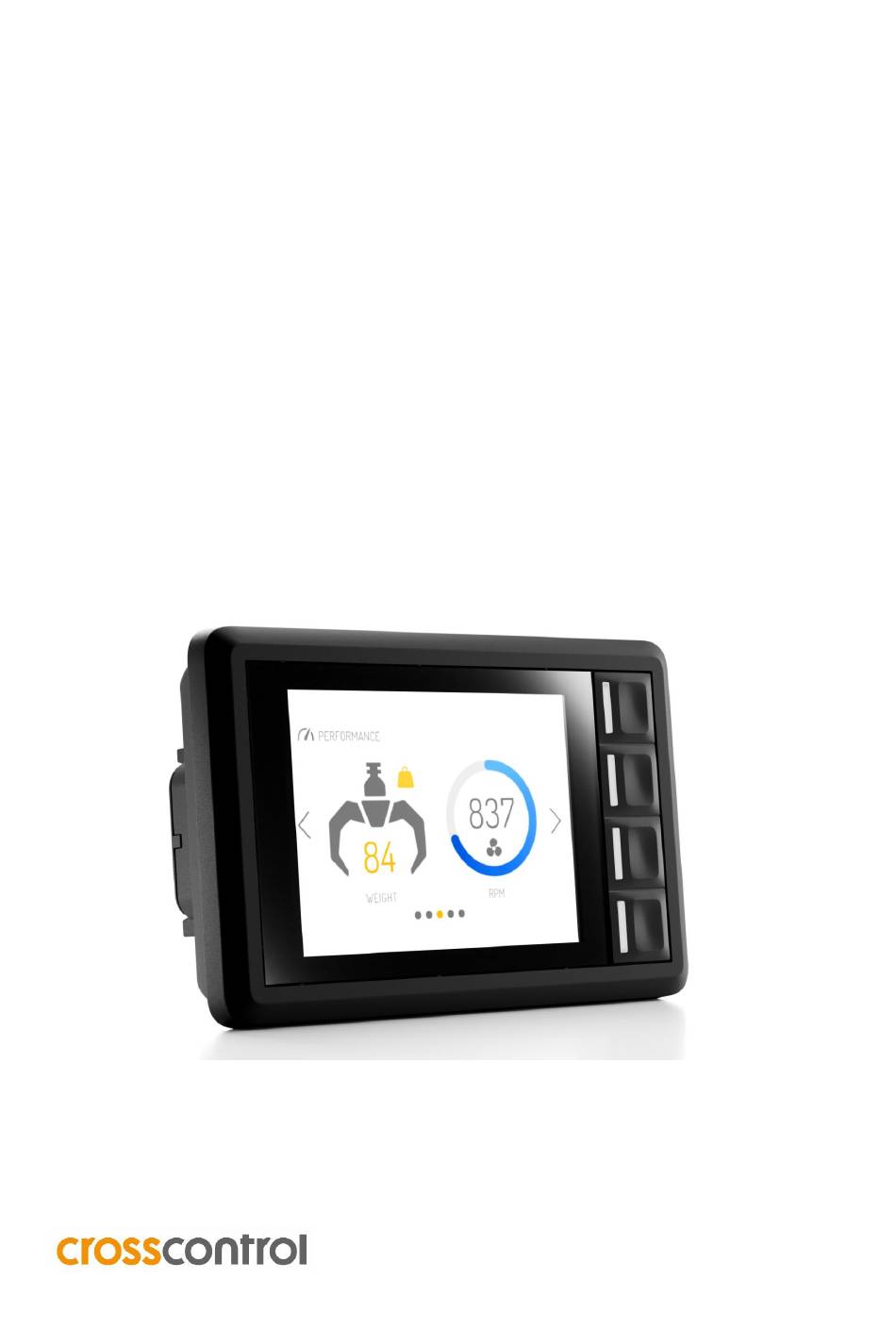

CCpilot VI
Technical Manual
www.crosscontrol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCpilot VI and is the answer not in the manual?

Questions and answers

Related Manuals for crosscontrol CCpilot VI

Summary of Contents for crosscontrol CCpilot VI

  • Page 1 Revision: 2.0.0 2018-10-19 CCpilot VI Technical Manual www.crosscontrol.com...

  • Page 2: Table Of Contents

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 Contents Revision history ..........................3 1. Introduction ..........................4 1.1. Product models .......................... 4 1.2. Document conventions ......................4 1.3. Identification..........................5 1.4. Environmental resistance ......................5 2. Product overview .........................5 2.1. Front side view ..........................5 2.2.

  • Page 3: Revision History

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 Revision history Comments Revision Date Issued by 2.0.0 2018-10-19 Lars Olsson www.crosscontrol.com...

  • Page 4: Introduction

    2018-10-19 1. Introduction CCpilot VI is a 3.5" full-colour display with Linux operating system. The open LinX software platform offers a choice of powerful tools for application development. This, together with a QVGA high brightness display and hardware accelerated 2D, 3D and vector graphics, enables fast design of premium user interfaces.

  • Page 5: Identification

    Technical support and Service/Repair needs. Figure 1: Identification labels 1.4. Environmental resistance The CCpilot VI product has been designed to manage tough environmental demands. Much effort has been put into designing and selecting system components to provide a reliable and robust device.

  • Page 6: Rear Side View

    Soft key numbering. Display with anti-glare glass Figure 2: CCpilot VI front side view 2.2. Rear side view The product has 2 connectors for external interfaces. Connectors are of type Deutsch DTM-12. On the rear side you also find the buzzer sound outlet, a Gore-Tex ventilation membrane and mounting holes for either a fastener in accordance with AMPS hole pattern (RAM 2.43”...

  • Page 7: Mounting And Handling

    This chapter contains recommendations for installation, handling and maintenance of the product. 3.1. Mounting CCpilot VI supports two different mounting methods, a RAM mount or a panel mount. These two mounting methods are described separately below. For both fastening methods, use the appropriate M5 x 0.8 button head screw of type MRT (Torx) The recommended torque for the screws is 1.5-2.0 Nm.
  • Page 8 Technical Manual 2018-10-19 Ensure that CCpilot VI is mounted to a smooth, flat surface. Fastening the unit to an uneven surface may stress the enclosure, damage the outer flange or possibly even flex the circuit board inside, leading to a premature failure.

  • Page 9: Connecting To Power Supply

    2018-10-19 3.2. Connecting to power supply This chapter describes how the CCpilot VI is preferably connected to the power supply of the equipment it is installed in. The principle is the same for vehicular and stationary installations. Carefully read through the following sub-chapters. They are critical for designing and adapting the electrical system of the equipment in which the CCpilot VI is installed.

  • Page 10: Cable Installation

    (S2) is closed and shut down when the switch is opened. Note that the on/off behavior of the CCpilot VI described here is the default configuration. Its response to the on/off signal may be altered using the CCAux API, see chapter 4.1 for more details.

  • Page 11: Special Considerations

    When using shielded cables for Ethernet, the shield is preferably connected/grounded at the other end of the cable (and remains unconnected close to the CCpilot VI device). Below are recommendations for inserting cable shields and coaxial cables into Deutsch DTM plugs to achieve robust connections and retaining IP classification of the device.

  • Page 12: Handling And Maintenance

    Always consider personal safety when installing and operating the product. For example, in vehicle installations, CrossControl does not recommend that the product is being actively operated by the driver when a risk of injury to people or damage to property is present.

  • Page 13: Transportation

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 3.6. Transportation When transporting the device it is recommended to use the original packaging. Make sure that protective caps are used on all non-mated connectors. The storage temperature interval [-30°C to +80°C] must be met.

  • Page 14: Basic Operation

    When the device enters operational state the soft key backlight will stop flashing and be turned on. 4.2. Turning OFF and suspending There are several ways to turn off the CCpilot VI device and also alternatives to enter suspend mode instead of completely shutting down the device.
  • Page 15 Suspend mode and wakeup. When performing any of the above, the CCpilot VI device will shut down. The soft key backlight will flash and the device will beep to indicate that releasing the soft key configured for shutting down will result in the device starting to shut down.

  • Page 16: Adjusting The Screen Brightness

    CCAux API. See the software guide for details. 4.2.3. Forced Shutdown If the CCpilot VI is not responding, a forced shutdown can be performed by pressing and holding soft keys 1 and 4 simultaneously until the device is switched off.

  • Page 17: Error Codes

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 4.5. Error codes The internal buzzer is used for signalling error codes when the device cannot start due to a hardware failure. When this happens, the device will remain shut off, but indicates the failure reason by beeping the buzzer in a special pattern.

  • Page 18: Interface Overview

    5.1. Front panel 5.1.1. Soft keys CCpilot VI has four (4) software configurable soft keys. The soft keys may be used for user application input, turning the unit on/off or controlling the backlight. Reference to the software documentation for details on how configuration is done.

  • Page 19: Usb

    5.5. USB CCpilot VI has one (1) USB port. This port supports an USB OTG interface, i.e. acting as both host and device. Using the port in USB device mode is only for OS updates through a connected PC with appropriate tool installed.

  • Page 20: Analog Inputs

    5.7. Analog inputs CCpilot VI has three (3) fixed analog inputs with 0-5V range and 25 kΩ input impedance to ground. 5.8. Low side outputs CCpilot VI has two (2) low side outputs. These two self-protected, low-side switched PWM outputs have a maximum current rating of 1 A and can be used to control external loads such as a buzzer, relay or indicator lamps.

  • Page 21: Bluetooth

    5.9. Bluetooth CCpilot VI models with P/N C000144-01 and C000144-02 have a Bluetooth module to facilitate wireless communication to and from the device. The Linux based operating system in the CCpilot VI includes a software Bluetooth stack for easy application development including Bluetooth functionality.

  • Page 22: Connectors

    Use caution and avoid plugging/unplugging of connectors when the device is powered up. Always replace damaged cables. If a connector pin becomes bent the interface may not function correctly and the device should be returned to CrossControl for repair. 6.1. Connector layout Note that descriptions herein refer to the connectors located on the device and not the cable-side connectors which are attached to the device.

  • Page 23: Deutsch Dtm Connectors, General

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 6.2. Deutsch DTM connectors, general Use caution and avoid plugging/unplugging Deutsch DTM connectors while the device is powered up. If a connector pin becomes bent the interface may not function correctly and the device should be returned to the manufacturer for repair.

  • Page 24: Specifications

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 7. Specifications 7.1. Technical data Temperature specification Operating -25 to +70 °C Storage -30 to +80 °C Kernel Main Processor ® NXP™ i.MX6 SoloX: ARM 32-bit, 800 MHz, Cortex Co-processor ® STMicroelectronics STM32F071VB, Cortex...
  • Page 25 CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 USB interfaces Type 1x USB 2.0 compatible host ports Speed Full-speed (12 Mbps) and Hi-speed USB (480 Mbps) is supported. 5.0 V, 0.5 A per port, internally over-current (typically 0.7 A) and short- VBUS supply circuit to ground protected.
  • Page 26 Soft key backlight is used for status notification, such as blinking at Status notification 2 Hz during start-up, etc. Software Operating system CCLinux, Kernel version 4.1.38 CCAux API, CCSettingsConsole. Refer to the CCpilot VI Software Additional software Guide and Programmer’s guide for details. Display Size www.crosscontrol.com...

  • Page 27: Environmental Specifications

    Enclosure Ingress Protection IEC 60529:2014 IP66, IP67 Any changes or modifications to the device not expressly approved by CrossControl could void the environmental classification, warranty, and user's authority to operate the equipment. 7.3. EMC specification The CCpilot VI device has been tested for Electromagnetic Compatibility according to the following standards.

  • Page 28: Weight And Dimensions

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 +37V +20V -150V +150V -12V +123V, Ri = 2Ω ± 8 kV ESD immunity ISO 10605:2008 Contact ± 6 kV Level Modulation Radiated RF immunity ISO 11452-2:2004 200-2000 30 V/m 80%AM, 1kHz ISO 11452-4:2005/Cor.1:2009...
  • Page 29 CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 Figure 5: CCpilot VI dimensions. www.crosscontrol.com...

  • Page 30: Technical Support

    CrossControl. CrossControl respects the intellectual property of others, and we ask our users to do the same. Where software based on CrossControl software or products is distributed, the software may only be distributed in accordance with the terms and conditions provided by the reproduced licensors.

  • Page 31: Index

    CCpilot VI Revision: 2.0.0 Technical Manual 2018-10-19 For end-user license agreements (EULAs), copyright notices, conditions, and disclaimers, regarding certain third-party components used in the device, refer to the copyright notices documentation. Index Analog input, 20, 25 Introduction, 4 Application example, 9...
