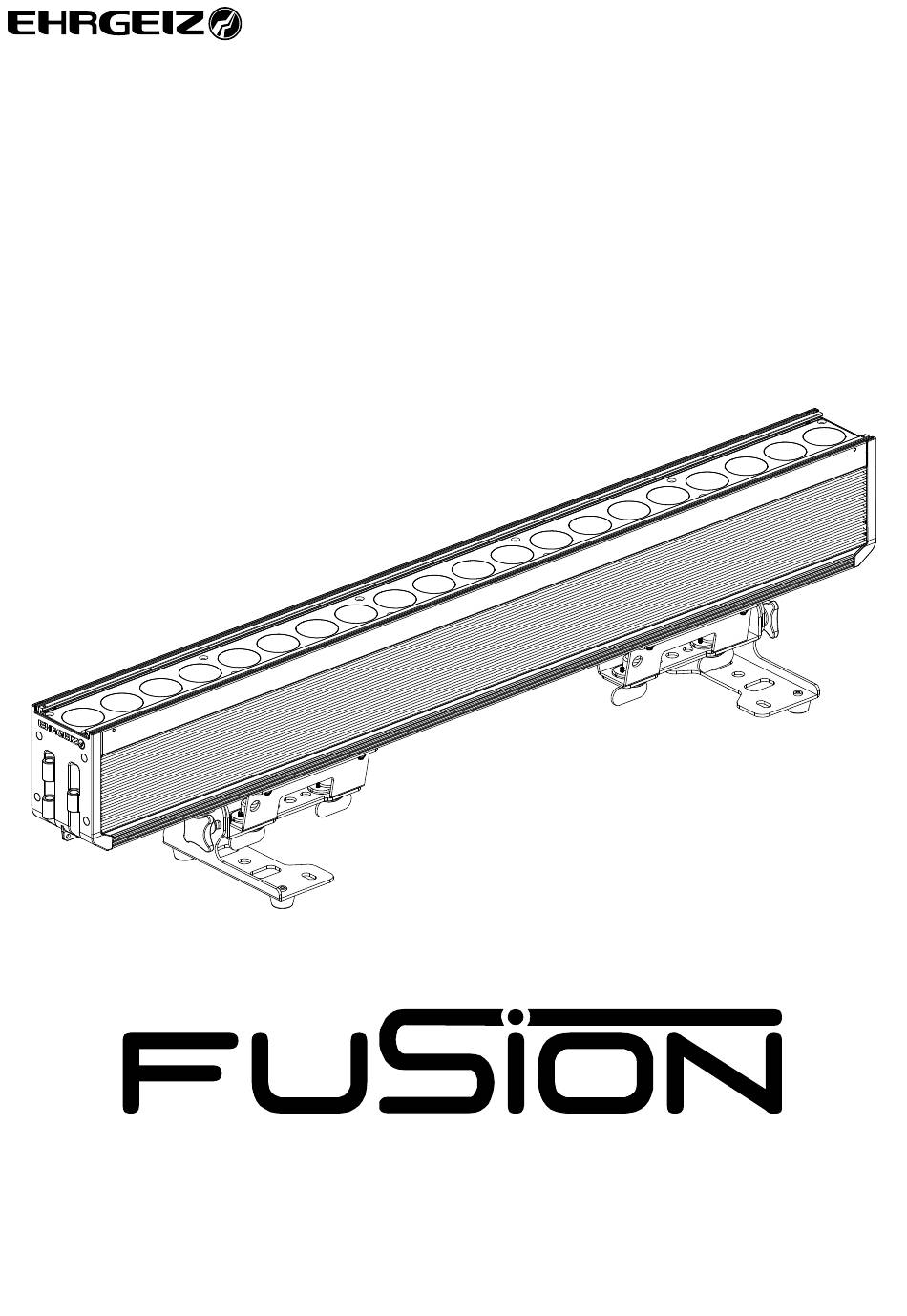

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS USER MANUAL Introduction ............1 Safety Instructions ..........1 Delivery Contents ..........3 Fixture Dimensions ..........3 Installations ............4 Structural Connection ........4 Horizontal Installation on the floor ..... 4 Horizontal hanging with tilt bracket ....5 Horizontal hanging with Omega Bracket ..... 5 Safety attachment .......... -
Page 3: Introduction
You have chosen a reliable product with outstanding features. The device is easy to use and is made of high quality components. Every Ehrgeiz Product is checked before shipping to secure you are able to receive a great product without compromise. This is not a toy. - Page 4 Introduction → Safety Instructions Positioning: The fixture must be positioned at least 0.2m minimum distance to illuminate objects. Keep all inflammable materials at least 0.2m from this fixture. Allow to place the fixture on an inflammable surface. The maximum ambient temperature of 40°C may not be exceeded. The exterior of this fixture can reach a very high temperature during operation.
-
Page 5: Delivery Contents
Introduction → Delivery Contents Delivery Contents You received your Fusion 2 with the following content Fusion 2 20x15W Osram LED Bar with 6° beam angle • powerCON TRUE1® Input cable Input cable with Neutrik TRUE1 and Schuko plug • Glare Shield Shield to avoid looking directly into the fixture from the side •... -
Page 6: Installations
Installations → Structural Connection Installations Your Fusion 2 can be installed in every kind of following positions. Please see the explanations and rely to the instructions for a safe operation and secure handling. Structural Connection The Fusion 2 can be connected using the included quick-release pins. Place the devices next to each other. -
Page 7: Horizontal Hanging With Tilt Bracket
Installations → Horizontal hanging with tilt bracket Horizontal hanging with tilt bracket You can attach the Fusion 2 to a Truss or Pipe. Notice that the tilt bracket should face down from the hanging structure. Use the centered holes in the Tilt Bracket... -
Page 8: Connections
Connections Mains & DMX Fusion 2 offers standard powerCON TRUE1 as well as fully IP65 rated 5 pin XLR connectors for the Mains and DMX connection. Please only use high quality cables fitting the local regulations and connection standards. We only recommend the usage of H07 RN-F 3G2.5 on Original Neutrik powerCON TRUE1 for mains connection and digital 110 Ohm DMX cable with original Neutrik 5 pin XLR HD. -
Page 9: Dmx
When the W-DMX receiver is installed, enable it with the option in the service Menu (only needs to be done once and does not set back when you set the device to “factory default” To establish a connection, enable the W-DMX Option and simply use the “Link” Option in the Fusion 2 Menu. After that, set your transmitter to Link Mode. -
Page 10: Operations
Menu control Your Fusion 2 has an easy to read and setup OLED display and Menu. It is programmed with a lot of built in functions as well as DMX Modes for different applications. Please notice that the display will flip automatically while you turn the fixture (Can be disabled in the menu). -
Page 11: Menu Map
Operations → Menu map Menu map Adress 1-XXX Set the DMX Adress Standard - 12 Advanced - 17 Pattern - 27 RGBW - 4 Set the desired DMX Mode. Mode compressed - 6 For detailed information see DMX Modes on page 13. Pixel –... - Page 12 Operations → Menu map Linear* Theatrical Choose the Dimmer Curve. Dimmer Curve For detailed information see Dimmer Curves Appendix page Square Law Inverse Square Fast* Dimmer Speed Select the behavior of the Dimmer Smooth Off* 1 minute Shut-off Choose after which time the display backlight will time turn off.
- Page 13 Operations → Menu map Test Run / Cancel* Runs a test program with all colours and all single LEDs Sequence Alone* Choose Master to send out all 3 internal programs to the DMX line if you run any program Master Master / Slave 1* Choose Slave 1 to replay the first program sent by a...
-
Page 14: Software Updates
Software updates Your Fusion 2 can be updated via the DMX connection, so no need to open it. If you experience an issue which could probably be solved by a Firmware Update, please contact your Ehrgeiz Dealer for further instructions. -
Page 15: Ir Control
Operations → IR Control IR Control The IR remote provides these functions: Increase colour intensity Colour 0% / Colour 100 % Decrease colour intensity Choose a color Increase speed / intensity Decrease speed / intensity Choose an internal program auto Choose if program does a chase or fade;... -
Page 16: Dmx Modes
Operations → DMX Modes DMX Modes You can set up your Fusion 2 in 8 different DMX Modes: Standard Page 15; Uses 12 DMX channels Advanced Page 15; Uses 17 DMX channels Pattern Page 16; Uses 27 DMX channels RGBW Page 16;... -
Page 17: Standard
Operations → DMX Modes Standard Function Colour Wheel (see Colourwheel channel chart) Green Blue White Shutter effects (see Shutter effects channel chart) Dimmer Pattern Pattern Speed Pattern Fade Control (see Control channel chart) Advanced Function Colour Wheel (see Colourwheel channel chart) Red fine Green Green fine... -
Page 18: Pattern
Operations → DMX Modes Pattern Function Colour Wheel (see Colourwheel channel chart) Green Blue White Shutter effects (see Shutter effects channel chart) Dimmer Control (see Control channel chart) Pattern 1 Pattern 1 Speed Pattern 1 Fade Pattern 1 Red Pattern 1 Green Pattern 1 Blue Pattern 1 White Pattern 1 Shutter... -
Page 19: Compressed
Operations → DMX Modes Compressed Function Green Blue White Shutter effects (see Shutter effects channel chart) Dimmer Pixel Function Colour Wheel (see Colourwheel channel chart) Green Blue White Shutter effects (see Shutter effects channel chart) Dimmer Pattern Pattern Speed Pattern fade Control (see Control channel chart) Red 1 Green 1... -
Page 20: Pixel Rgbw
Operations → DMX Modes Pixel RGBW Function Red 1 Green 1 Blue 1 White 1 Red 2 Green 2 Blue 2 White 2 … Red 20 Green 20 Blue 20 White 20 Pixel Dim Function Colour Wheel (see Colourwheel channel chart) Green Blue White... -
Page 21: Services
Contact your Ehrgeiz distributor for repair Maintenance There are no user-serviceable parts inside your Fusion 2. If problems occur, contact your Ehrgeiz dealer or a qualified Ehrgeiz Service technician. Use a slightly moist and smooth cloth to clean the device. Do not use any aggressive detergents. -
Page 22: Appendix
Appendix → Specifications Appendix Specifications Light Source Electrical Specification • 20 x 15W Osram® RGBW LEDs • Electronic auto-sensing switching power supply • LED Life Expectancy: approx. 20.000 hours • Input voltage: 100–240V AC, 50-60 Hz • Max. power consumption: 330 W Optical System Rigging •... -
Page 23: Exploded Drawing
Appendix → Exploded drawing Exploded drawing 27 28 15 16... -
Page 24: Exploded Drawing Accessory
Appendix → Exploded drawing accessory Exploded drawing accessory... -
Page 25: Spareparts
200198 PSU 20336 Standfoot with Tilt Function (Set of 2) 200199 terminal block 200161 LED Fusion 2 RGBW 20x15W 200201 back plate 200251 Diffusor filter Black Tube 200203 chassis connector 5pin XLR male IP65 200271 Vertical Adapter Plate (w/o Omega Bracket) 1... -
Page 26: Colourwheel Channel Chart
Appendix → Colourwheel channel chart Colourwheel channel chart Value Function Value Function Colourwheel rotation effects No Function / 0 - 5 RGBW Colour mixing Coulourwheel rotation 171 - 185 forward (fast - slow) 6 - 10 LEE 790-Moroccan Pink 11 - 15 LEE 157-Pink 186 - 190 Coulourwheel rotation stop... -
Page 27: Control Channel Chart
Appendix → Control channel chart Control channel chart Value Function Value Function 0 - 55 Reserved 181 - 185 Fixture Reset 56 - 60 Dimmer Speed: Smooth Factory default 186 - 190 (except DMX Address & Mode) 61 - 65 Dimmer Speed: Fast 66 - 70 Reserved... -
Page 28: Pattern Channel Chart
Appendix → Pattern channel chart Pattern channel chart Your Fusion 2 has static as well as animated patterns. Static Patterns Pattern Value Pattern Value 000 – 005... -
Page 29: Animated Patterns
Appendix → Pattern channel chart Pattern Value Pattern Value Animated Patterns All Animations are available in 4 different Settings: Standard Reversed Inverted Inverted reversed The values provide these 4 alignments. VIII... - Page 30 Appendix → Pattern channel chart Value Pattern Value Pattern Value Pattern 120 / 121 / 122 / 080 / 081 / 124 / 082 / 125 / 126 / 092 / 093 / 094 / 128 / 129 / 130 / 132 / 084 / 096 /...
-
Page 31: Dimmer Curves
Appendix → Dimmer Curves Value Pattern Value Pattern Value Pattern 152 / 154 / 144 / Random Animations: 145 / (Second Value means inverted) 146 / 156 / Random 1 Pixel 158 / Random 2 Pixels 140 / 160 / Random 3 Pixels 141 / 142 /... - Page 32 Ehrgeiz Lichttechnik GmbH Im Stöckmädle 27 D- 76307 Karlsbad - Germany Tel.: +49 7248 947 90 10 Fax: +49 7248 947 90 12 Web: www.ehrgeiz.com...
