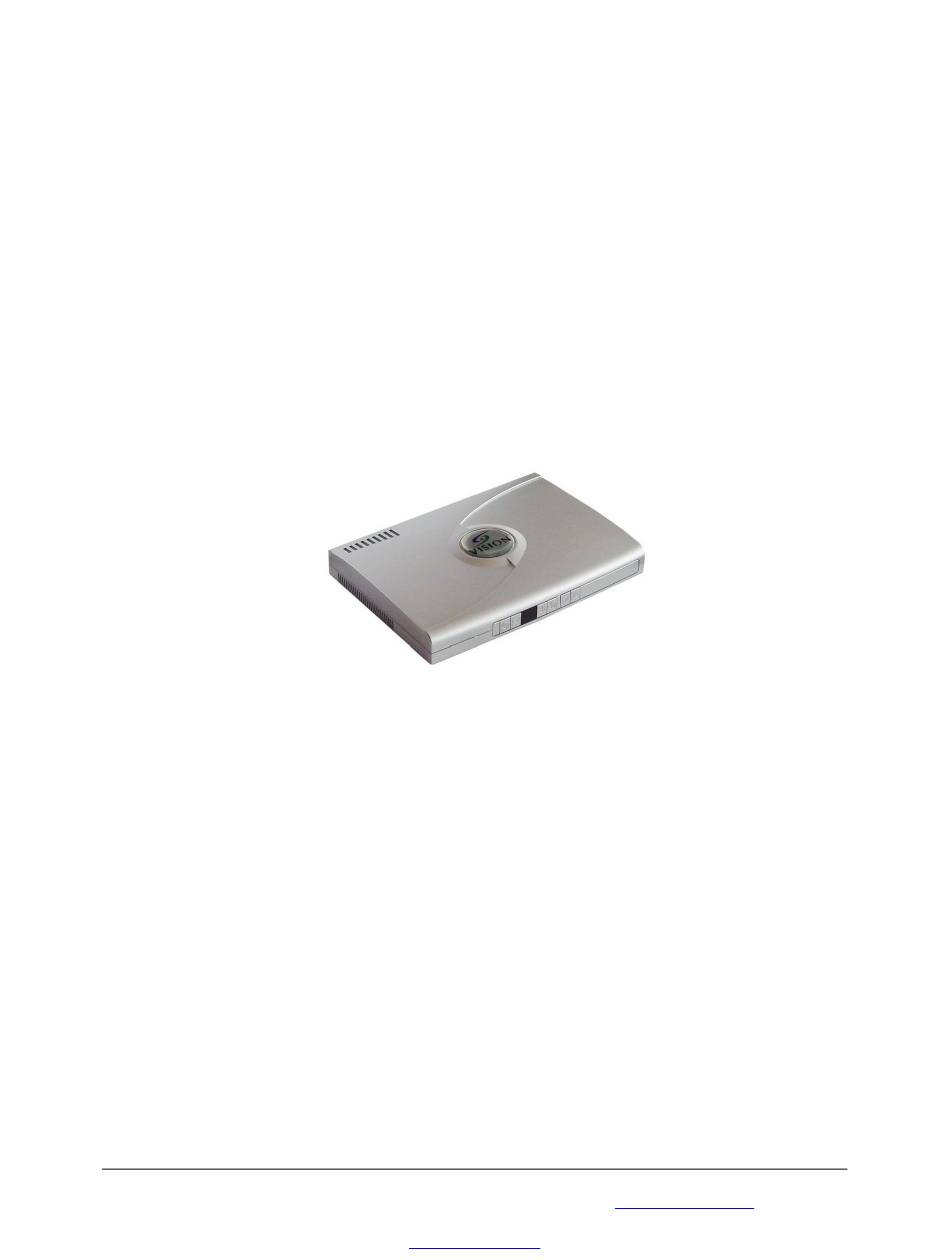

- Page 1 VIVID TV BOX VTB-104 Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 2 HDTV-ready TV Sets, resulting in dramatically improved video image quality. The Vivid VTB-104HDTV TV box employs frame-buffering technology, which can significantly increase the quality of images by doubling the standard video lines. It converts the standard NTSC or PAL analog video signal from 15.75KHz up to 31.5KHz horizontal scan rate and provides 480p, 576p or 720p line resolutions for HDTV-ready displays, as well as VGA, SVGA and XGA for PC-compatible displays.
- Page 3 Features • Plug & play! No software driver required, no need to uncover the PC case. • De-interlace function provides high video quality and it gives sharp stable video outputs. • Supports HDTV outputs for 480i, 480p, 576i, 576p, 720i, and 720p. •...
- Page 4 Operation Controls and Functions Front Panel POWER- Press this button to switch the unit On or Off. VIDEO SOURCE SELECTION- Select the video source between TV/Cable, S-Video, AV, Component (Y, Cb, Cr) or PC. 3. POWER LED / INFRARED RECEIVER- Lights when the TV BOX is powered up and ready to operate.
- Page 5 Video-In - Please connect the external video from VCR, LD/VCD/DVD or video game console to the Video In port. S-Video- Please connect it to the S-Video In port when the external Video device is S-Video. 6.7.8. Component (Y, Cb, Cr) Input- Please connect them to the Component (Y, Cb Cr) In port when the external video device has Y, Cb, Cr Output’s support.
-
Page 6: Installation
System Installation Installation 1. To prevent damage to your equipment due to ground potential influence, make sure that all devices on the installation are properly grounded. Consult your dealer for technical details if necessary. 2. Please turn off the power of all devices before connection. To install the TVBOX for the analog TV and A/V device connection, please refer to the diagram below. - Page 7 Operation Instructions Initial Settings For all function settings of the TV BOX, you can use the supplied remote control unit. Please refer to the following steps below: 1. Install 2 AAA batteries into the Remote Control. 2. Power on the unit or press the Power button on the Remote Control 3.
- Page 8 Source Select Sub-Menu provides TV, AV, S-VIDEO, YCbCr mode selections. 1.In the SOURCE Sub Menu, press button to choose the Video Source; TV; AV; S-video; YCbCr. 2. Press “ENTER” to select the source. 3. Press “EXIT” to return to the Main “MENU”. 4.
- Page 9 The SOUND Sub-Menu provides BASS, TREBLE, BALANCE adjustment modes. 1. In the SOUND Sub MENU, Press button to choose the required item. 2. Press “Enter” to select the item. 3. To adjust the selected item by button. 4. When finished, press “Exit” to return to SOUND Sub MENU. 5.
- Page 10 Channel Edit The CH EDIT function provides CHANNEL ADD/ERASE, CH NAME, CH SWAP functions. Channel Add/Erase Select the “CHANNEL EDIT” function on the TV Function Screen by pressing the button. Press the “Enter” button to enter the function. Press to move channel up and down. Press to select “ADD”...
- Page 11 After entered the CHANNEL NAME function, Press “Enter” and start to edit the channel name. Channel Swap Press and “Enter” button to enter the CHANNEL SWAP function. The current channel shows at the left side (CH1) and press button to move to the CH2 and press button to move to the channel you want to swap.
