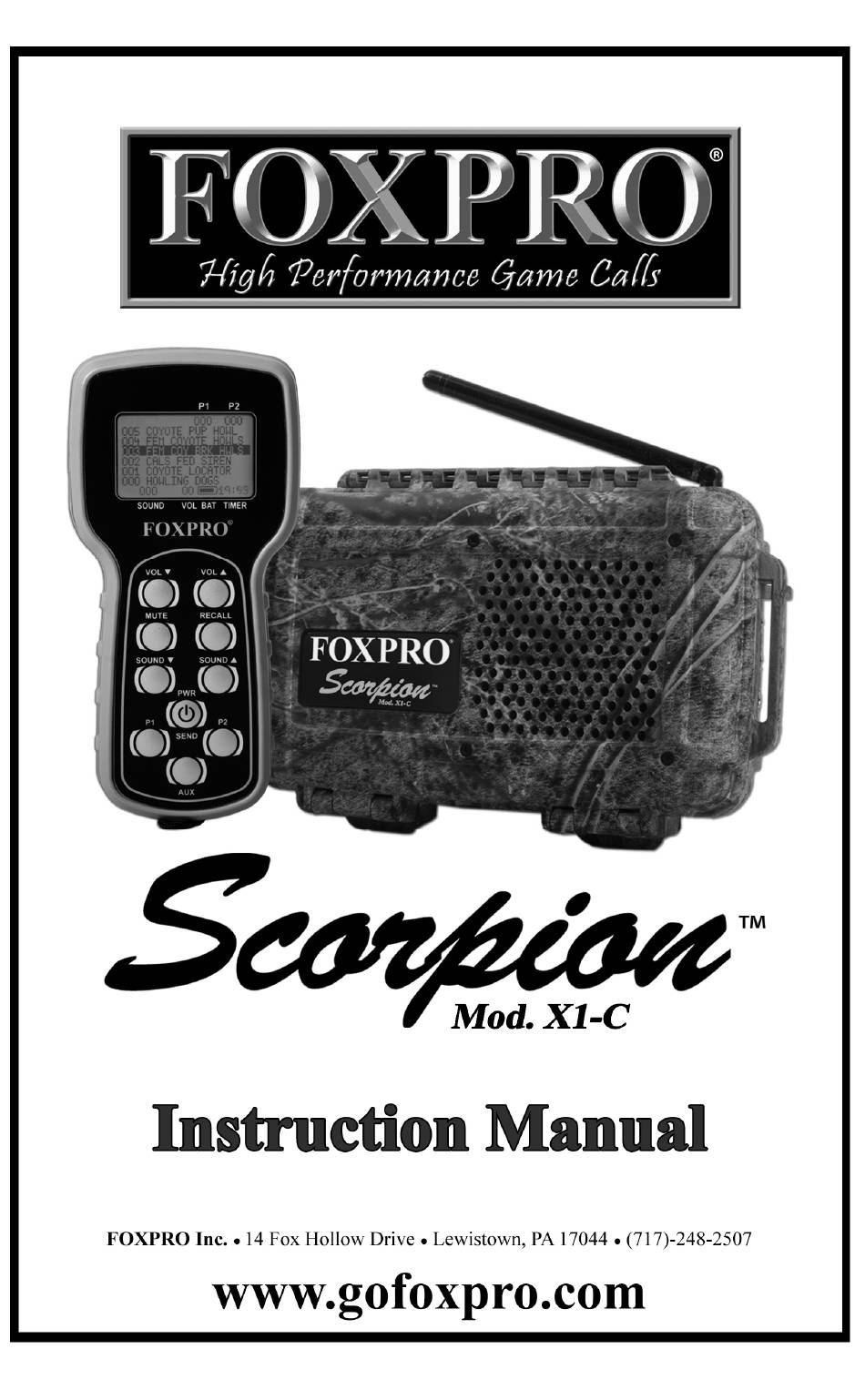

Foxpro Scorpion X1-C Instruction Manual

Hunting game call wireless
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Foxpro Scorpion X1-C

Summary of Contents for Foxpro Scorpion X1-C

  • Page 2 General Inquiry E-mail: sales@gofoxpro.com Stay up to date with the latest sounds by visiting our online sound library. Watch for ® new products and upgrades from FOXPRO . Visit us online: www.gofoxpro.com This manual, the animal sounds stored in your caller, and animal sounds purchased from ®...

  • Page 3: Table Of Contents

    Table of Contents Getting Started ........................4 What’s in the Box? ...................... 4 Scorpion X1C: First Glance ..................4 Scorpion X1C: Requirements ..................5 TX9 Remote: First Glance ................... 7 TX9 Remote: Requirements ..................7 Quick Start Guide ......................... 7 Playing Sounds ......................

  • Page 4: Getting Started

    WARNING: To avoid personal injury and product damage, read all operating instructions and safety precautions in this guide before using the FOXPRO Scorpion X1C digital game call system. A digital copy of this file can be downloaded from: http://www.gofoxpro.com/resources/manuals/FOXPRO_Scorpion X1C.pdf 1-1 What’s in the Box?

  • Page 5: Scorpion X1C: Requirements

    1-3 Scorpion X1C: Requirements The Scorpion X1C digital game call is shipped without batteries. It requires 4 ‘AA’ batteries. FOXPRO recommends the use of high quality alkaline batteries for the best performance. Installing Batteries in the Scorpion X1C Access the battery holder by unlocking the latches on the front of the Scorpion X1C.
  • Page 6 The battery enclosure features cavities for the 4 ‘AA’ batteries. Place the batteries into each battery cavity while observing polarity as indicated. Secure the top of the battery enclosure to its original position with the screw. Close the Scorpion and secure the latches.

  • Page 7: Tx9 Remote: First Glance

    1-4 TX9 Remote: First Glance The following chart corresponds to a graphic below that depicts the TX9 remote. Number Description Volume down Mute Sound down P1 (Preset 1) Auxiliary Lanyard loop P2 (Preset 2) Power / Send Sound up Recall Volume up 1-5 TX9 Remote: Requirements The TX9 remote control operates on a single 9V battery.

  • Page 8: Playing Sounds

    Playing Sounds Turn on the Scorpion X1C by placing the power switch to the on position. Turn on the TX9 remote control by pushing and holding the power/send button for 2- 3 seconds. You will see the LCD panel light-up and display the sound list. Use the sound up or down arrow button to cycle through the sound list.

  • Page 9: Auxiliary Jack Function

    Remember that damage to your Scorpion X1C ® caused by improper use of the “AUX” jack is not covered by the warranty, nor will FOXPRO liable for damage to any device connected to this jack.

  • Page 10: Connecting And Using External Speakers

    Connecting and Using External Speakers The external speaker jacks on your Scorpion X1C accept a standard 3.5mm plug. When choosing an external speaker it is recommended to use one with an impedance rating of 8-ohms. NOTE: Be sure the Scorpion X1C is turned OFF before connecting an external speaker! To connect an external speaker, plug the connector of the external speaker into one of the external speaker jacks (see image below).

  • Page 11: Tx9 Detailed Information

    removing the red shunt and replacing it on the two pins to the right, the audio is routed to the external speaker jacks only. 5. TX9 Detailed Information The Scorpion X1C features the TX9 remote control. The TX9 includes a graphic display (no printed sound lists), two custom preset buttons that provides you with one button access to your most commonly used sounds, volume level indicator, recall button, an elapsed timer, and battery level indicator for the transmitter battery.

  • Page 12: Reverse Text Mode

    IMPORTANT NOTE NOTE: When you activate FOXBANG it will automatically use the previous sensitivity setting. The factory default sensitivity is medium. You may need to adjust this in order to get the right setting for your firearm. If you are using a large caliber (.30-06), you would want to select a lower sensitivity.

  • Page 13: Getting New Sounds

    Scorpion X1C. The website is located at: http://www.gofoxpro.com Once you are at the site, access the “FOXPRO Sounds” option from the main menu and click on one of the sound pack options. You can purchase 4 sounds of your choice, 8 sounds of your choice, and 16 sounds of your choice.
  • Page 14 "Browse Library" button, you can browse the sounds stored at that location. Your sound library will probably be empty by default. You need to obtain sounds and place them into your library folder in order to install them into your FOXPRO game call. Connect your micro SD card to your computer Launch the programming utility If you do not see your new sounds under the "Source Sound Files"...

  • Page 15: Transferring A New Playlist To The Tx9

    7. Product Care & Maintenance In order to help get years of trouble free service with your FOXPRO game call, it is strongly recommended that you read and understand the following points. Many of these are considered proactive or preventative.

  • Page 16: Troubleshooting

    prolonged periods, be sure that you keep it in a dry location not susceptible to drawing moisture. Remove batteries prior to storage or extended periods of inactivity! All batteries, whether alkaline or rechargeable, should be removed from the game calls, decoys, and remote controls prior to storage or periods of inactivity.

  • Page 17: Maximizing Remote Range

    TX9 remote does not turn on Install a new 9V battery. Having trouble with Check out FOXPRO’s website for detailed programming programming new sounds information for your Scorpion X1C. Solutions for many common issues can be found there.

  • Page 18: Fcc & Ic Information

    Try to elevate the caller off of the ground by approximately three feet. This can • greatly maximize your overall remote control range. Try to avoid situations where the Scorpion X1C is placed at a lower elevation than the • remote control—the caller should always be higher.

  • Page 19: Warranty Statement

    FOXPRO Authorized Retailer. Return the unit prepaid and packaged securely along with proof of purchase to the address shown below.
