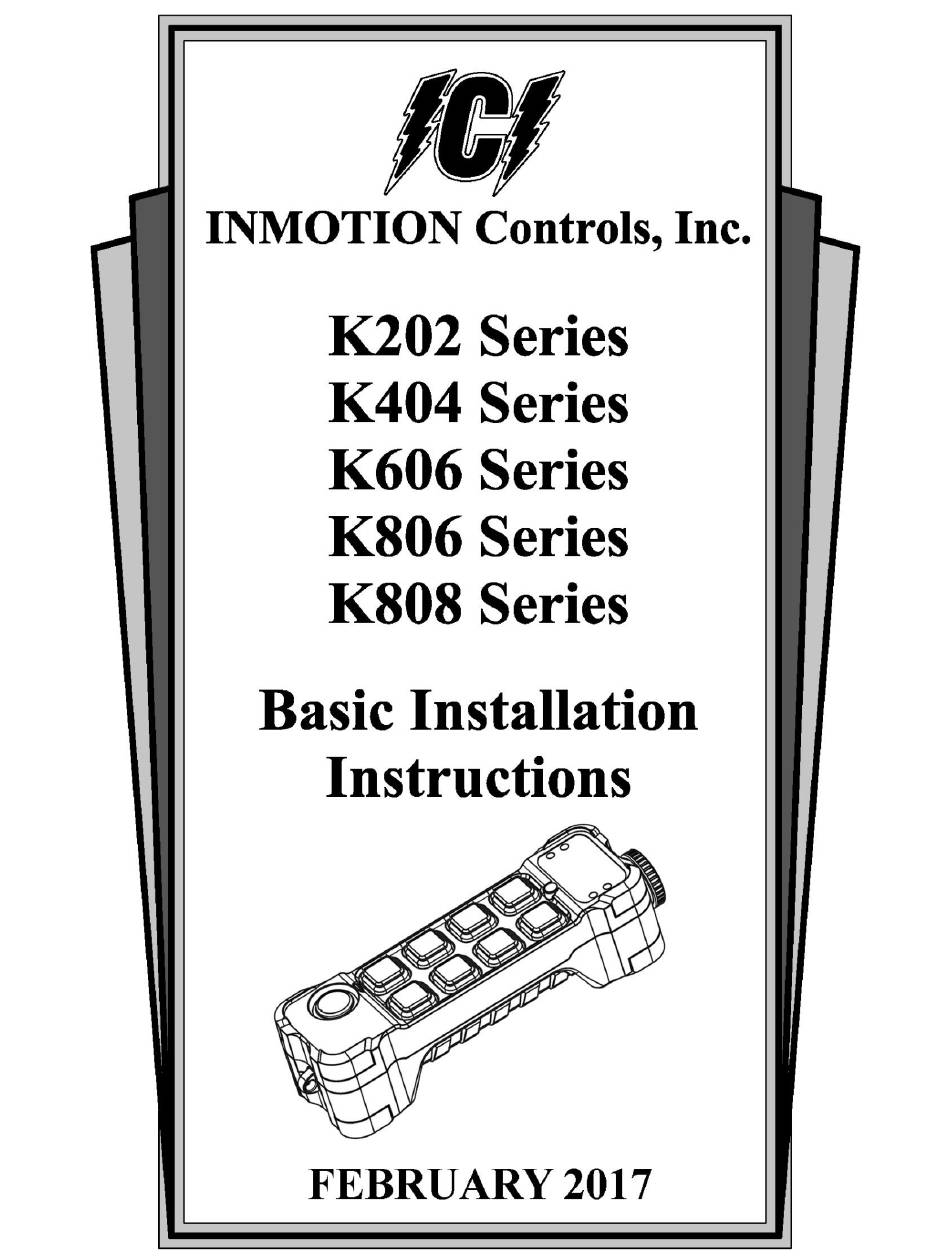

Page 2: Table Of Contents
Chapter 5: Accessories Guarantee, service, repairs and maintenance Inmotion Controls, Inc. products are covered by a guarantee/warranty against material, construction and manufacturing defects. During the guarantee/warranty period, Inmotion may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Inmotion Controls, Inc. -
Page 3: Chapter1: Customer Information
Chapter 1: Customer Information Thank you for purchasing an Inmotion Controls, Inc. radio remote control. READ ALL INSTRUCTIONS CAREFULLY BEFORE MOUNTING, INSTALLING AND CONFIGURATING THE PRODUCT. This manual includes general information concerning the operation of the radio remote control transmitter. -
Page 4: Chapter2: General Description
Chapter 2: General Description The K series transmitter comes in different versions, featuring 2, 4, 6, or 8 pushbuttons. The transmitter also features 2-step pushbuttons. Both steps of each pushbutton can operate different functions like controlling the speed of a movement, step 1: slow, step 2: fast. Start/ Horn switch The K series transmitter has a Start/Horn pushbutton on the left side. -
Page 5: General Description
Chapter 2: General Description Changing the batteries: BATTERY TYPE: 2 x 1.5V(LR6 AA) Technical Data Transmitter Frequency Range 433.0525~434.7775MHz Modulation method 4GFSK Typical operating range 300 feet Control system PLL (Phase Lock Loop) Antenna impedance 50 ohms Typical response time for commands 50ms~100ms Power Supply LR6 (AA) 1.5Volt x 2... -
Page 6: Chapter 3: Receiver
Chapter 3: Receiver WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver. Technical Data Receiver Frequency 433.0525~434.7775MHz Modulation Method 4GFSK Sensitivity -112dBm@baud 1.2K bps Control System Antenna impedance 50 ohms... - Page 7 Chapter 3: Receiver WARNING! DO NOT FLUSH MOUNT THE RECEIVING ASSEMBLY. PLEASE MAINTAIN PROPER CLEARANCE AS SHOWN. PLEASE USE THE SUPPLIED MOUNT! K202 Wiring Diagram...
- Page 8 Chapter 3: Receiver K404 Wiring Diagram K606 Wiring Diagram...
- Page 9 Chapter 3: Receiver K806 Wiring Diagram K808 Wiring Diagram...
- Page 10 Chapter 3: Receiver Receiver Dimensions (Not to scale)
-
Page 11: Chapter 4: Troubleshooting
Chapter 4: Troubleshooting... -
Page 12: Chapter 5: Accessories
Chapter 5: Accessories Pushbutton Protector Waterproof Case Lanyard...
