Thank you for your purchase, we hope you enjoy your new Tortuga! SAB Avio Team SPECIFICATIONS 81 cm This is the semi-scale 1/8 model of the KR84 Tortuga ROBODRONE Version that fought in the Kemp battle of 513 Wing Span : 84 cm Set up suggested:...
Chapter 2, Important Notes IMPORTANT NOTES *This radio controlled airplane is not a toy. *This radio controlled airplane can be very dangerous. *This radio controlled airplane is a technically complex device which has to be built and handled very carefully. *This radio controlled airplane must be built following these instructions.
Page 5
Chapter 4 - In the box Inside the box Fuselage Canopy Manual Inside the Box Fuselage Canopy Bags Bags Manual Main Box The assembly process is described in the following chapters. Each chapter provides you with the bag number you will need for that chapter.
Page 6
Chapter 5, Propulsion System Assembly BAG 1 Motor Mount Assembly 28mm Motor 36mm Motor Motor Flanged Option S0045 S0046 S0034 S0035 BAG 1.1 BAG 5.1 BAG 1.2 BAG 5.1 Tortuga Fuselage Motor Frame (S0045-S) Inclinate about 2° the motor mount. It is possible to set the right inclination of motor shaft just adding washers between Motor Frame and Motor Mount.
Page 7
Chapter 6, Canard System Assembly BAG 2 Servo Rod Assembly (S0039-S) Canard Mechanics Assembly Uniball M2 Plastic Ball Linkage M2 (S0039-S) Spacer (S0021-S) Socket Head Cap M3x10mm Canard Servo Machenics (S0039-S) (S0021-S) Set Screw M2x22mm Approx 43mm Canard Servo Assembly Micro servo size : 23mm Uniball M2 Canard...
Page 8
Chapter 7, Aileron Servo Assembly BAG 3 Aileron Servo Linkage Assembly ...x2 (S0039-S) Approx 88mm Clevis Plastic Ball Linkage Linkage Rod M2x56mm Note: Use epoxy to glue in the servo mount. Check the suggested Aileron Servo Mount Assembly ...x2 position in according to the size of your servo. Nut M2 Uniball M2 Servo Mount...
Page 9
Chapter 8 - Rudder Positioning BAG 4 Aileron Servo Cover Positioning Cover Stick (HC525-S) Aileron Servo Cover (S0037-S) Rudder Positioning NOTE: Rigid Vertical Rudder (S0031-S) Suggest: To avoid dirtying the joining area, it is recommended to protect it with paper tape during the gluing operation.
Chapter 8, Canopy Lock System Assembly BAG 5 Motor Installation Main Fuselage Assembled Find better holes for motor coupling. Drill if necessary to facilitate installation. Motor Assembled Motor Mount Flat Head Cap (S0046-S) Screws M3x10mm [HC135-S] Flat Head Cap M3x8mm Motor [HC134-S] Washer...
Chapter 9, First Flight BAG 6 Center of Gravity Position Velcro Tape 36x100mm (HA045-S) Battery Battery Strap 205mm L 16mm W (HA044-S) Set the Battery in order to get the correct position of the Center of Gravity (CG) shown in figure 1. The right CG position allow to fly with an excellent stability.
Chapter 11, Spare Parts Rigid Vertical Rudder Canopy [S0031-S] [S0032-S] - 1 x Canopy. - 2 x Rigid Vertical Rudder. - 1 x Plastic tube 2,5x 4x40mm. Canard Motor Mount ( 36mm Motor Diameter) [S0033-S] [S0035-S] 1 x Motor Frame - 1 x Motor Mount.
Page 14
Chapter 11, Spare Parts Canard Servo Mechanics [S0021-S] - 1 x Canard Servo Mecanics. - 2 x Linkage Ball M2. - 2 x Uniball M2. - 2 x Socket Head Cap M3x10mm. - 1 x Set screw M2x22mm. - 1 x Spacer. Motor Mount ( 28mm Motor Diameter) [S0045-S] 1 x Motor Frame...
Page 16

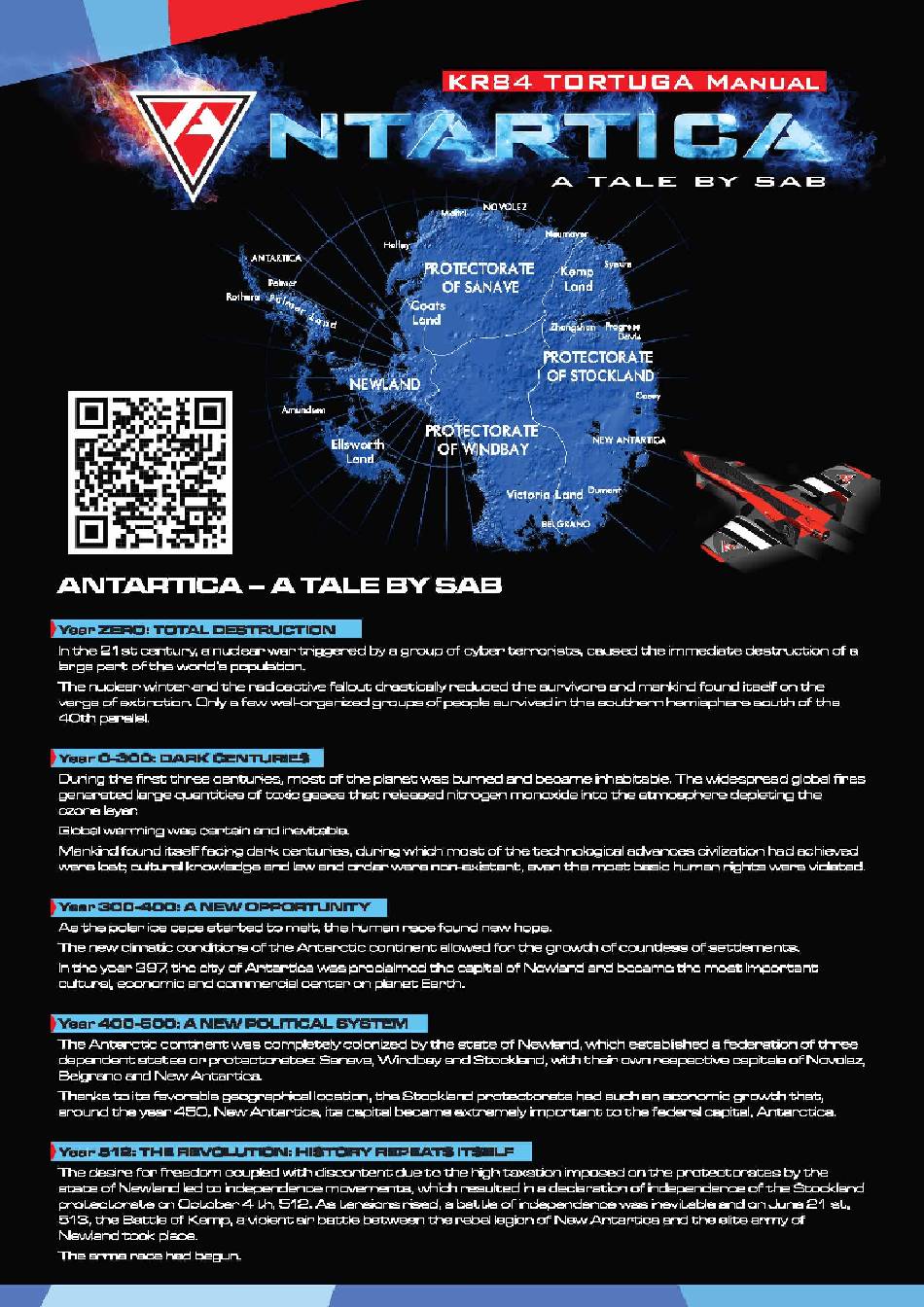

The attack was scheduled for June 21st, 513, the first day of winter, which later became famous as "dark day". Thanks to intelligence acquired by the secret service of New Antartica, the rebel legion had prepared itself ahead of the attack and this led to the historic sky battle of Kemp.
