Classic Cooktop and European Base

Assembly Instructions

Need help?

Do you have a question about the Euro Base and is the answer not in the manual?

Questions and answers

Summary of Contents for Arteflame Euro Base

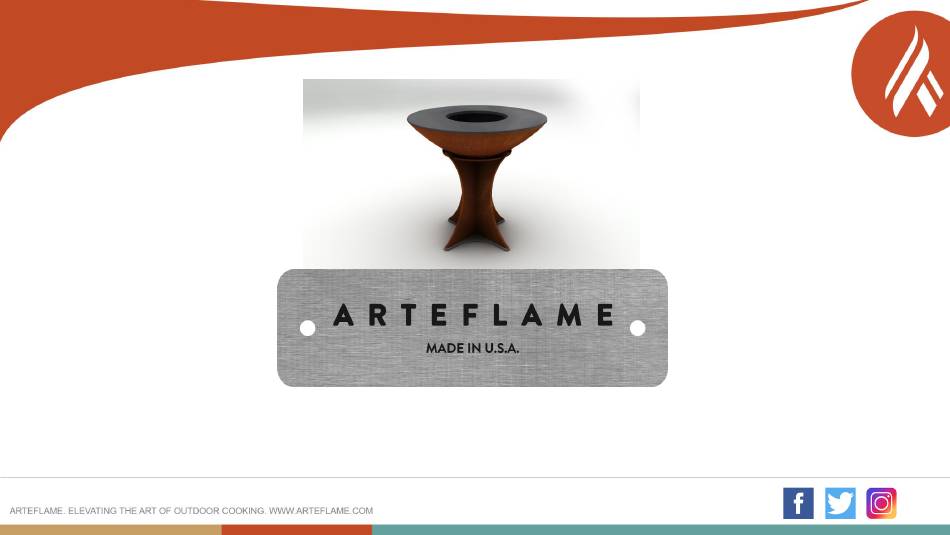

Page 1 Classic Cooktop and European Base Assembly Instructions...
Page 2 Arteflame style. Assembly is simple and complete assembly requires two people. The following instructions are for the assembly of the Arteflame with the Euro base. (Instructions for the short or tall Euro base are the same except for one piece.) When you first unpack your grill, you will find the components of the Euro style •...
Page 3 The Euro Base is made up of five pieces pictured • clockwise from the top left: One CORTEN locking ring • • One stainless steel, notched star footing base • One CORTEN cross key • Two CORTEN legs One with Arteflame badge, notch facing •...
Page 4 Arteflame Euro Base Assembly 6 quick steps for 2 persons We recommend holding all parts by their edges while wearing gloves.
Page 5 Step 1: Place the stainless steel, notched • star footer where you would like your Arteflame to be. Make sure this footer is as level as possible. • Step 2: Place the first leg without the Arteflame badge, notch facing up, onto the footer so that the tabs on the legs fit into the slots of the footer.
Page 6 Step 3: Have the other person place the second leg with the • Arteflame badge, notch facing down, over the first leg and slide it straight down so that the two notches slide into each other. Gently push the legs until both legs fit into the holes of the footer.
Page 7 Step 4: Make sure the intersection of the two legs is flush and flat • where they cross at the top. • Once they are flush, both legs are properly seated in the footer.
Page 8 Step 5: Place the CORTEN cross key on top of the • interlocking legs, ensuring it sits flat and flush with the top of the legs and can be pushed into place.
Page 9 Step 6: Place the CORTEN locking ring on top of the • legs and cross assembly, making sure it sits flat and even.
Page 10 Arteflame Bowl & Cooktop Assembly 3 quick steps for 2 persons...
Page 11 • The Arteflame Classic 40 Bowl is made up of two pieces; The laser cut carbon steel cooktop • (approximately 150 pounds) • The spun Arteflame CORTEN bowl (approximately 45 pounds) • Moving these parts into place requires a 2x4. It is a two person job using the lifters...
Page 12 Step 7: Using the cooktop lifter tool, insert the steel cooktop lifter into the center hole • and slide a 6+ foot 2x4 through the top. With two people, lift the cooktop and set it to the side in a safe place out of the way. NEVER install the cooktop by hand holding it on the outside rim as fingers can...
Page 13 • Step 8: With two people, lift the Arteflame bowl by the inside ring so the patina doesn't get disturbed. Place it on top of the base as level as possible.
Page 14 • Step 9: Place the cooktop on the bowl using the lifting tool. The cooktop slightly overhangs the bowl evenly on all sides. Always use the included lifting tools. If the lifters can't be used, position the bowl by lifting it through the center hole ONLY. DO NOT lift it by the outer edge as your fingers could get pinched between the bowl and the cooktop.
Page 15 Your fully assembled Arteflame grill is now • complete! Make sure your Arteflame is as level as possible so all excess grease will always flow into the middle and into the fire. You are now ready to build your fire and start the •...
Page 16 • If you ordered your Arteflame with a grill grate, there will be a grate lifting tool included. This lifting tool looks like a handle with a large hook. • The lifting tool slides in between the center slots of the grill grate.
Page 17 Never use wood from furniture, pallets or any other materials that can contain chemicals, veneer or paint. Grilling Tips: When using your Arteflame for the first time, it is good practice to build a fire that burns for at least an hour.
Page 18 Any oxidation that does form can easily be removed using steel wool and re-oiling the cooktop. The more your Arteflame is used, the better the cooktop will be protected by the oil that you use on it. This oil will actually impregnate the cooktop and prevent oxidation.
Page 19: Maintenance
An optional stainless steel lid is available from our store as well. Grilling Tips: Once the Arteflame has cooled down and the fire is out, it can be cleaned. Make sure all ashes and unburned wood pieces are completely cold. You can use a paper cup to scoop out the ashes.
Page 20 STORAGE It is not necessary to store your Arteflame indoors. Your Arteflame can be left outside year round. When left outside, make sure to clean out your Arteflame before using it. Debris like leaves, twigs or snow can accumulate in it.
