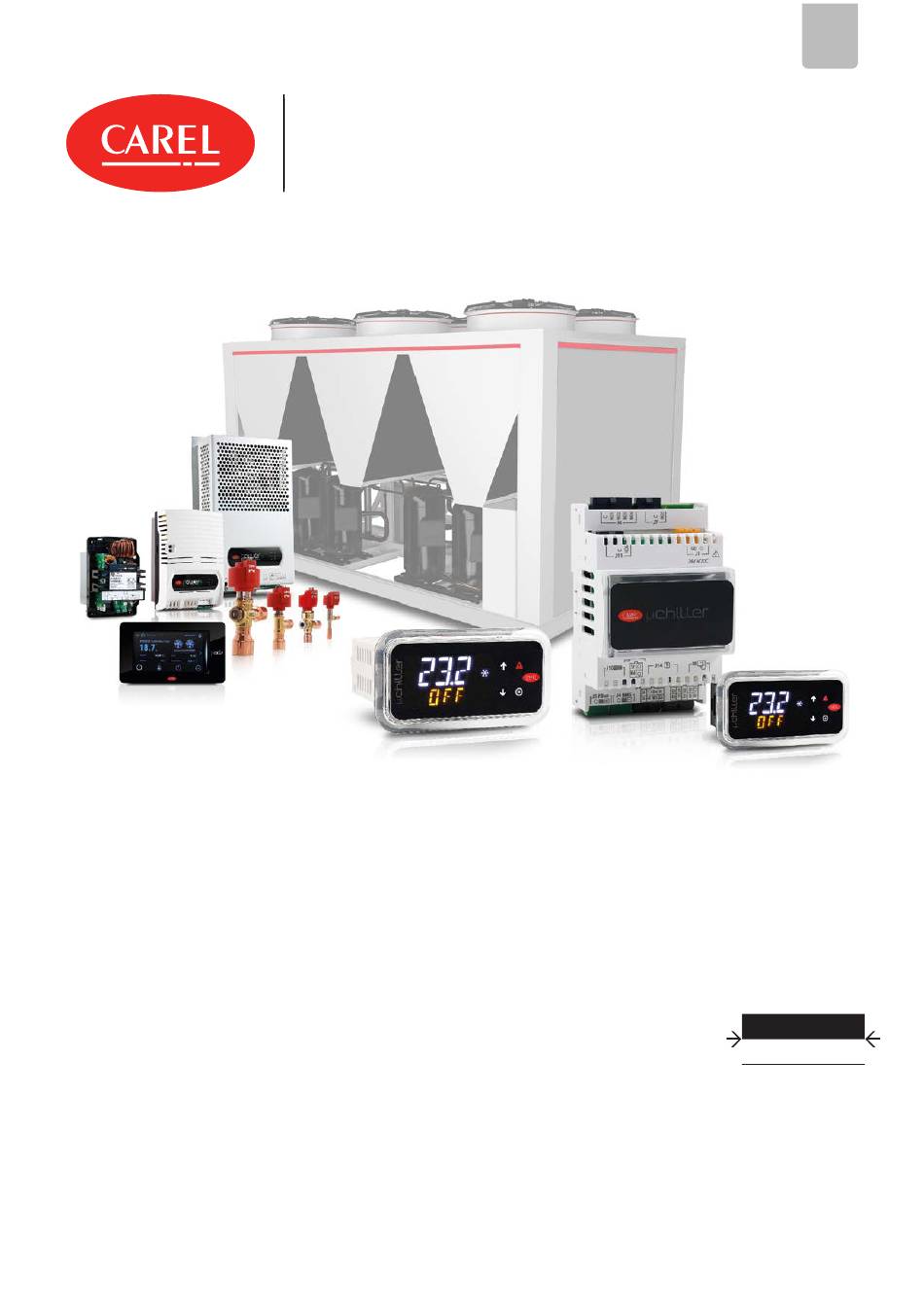

USER MANUAL

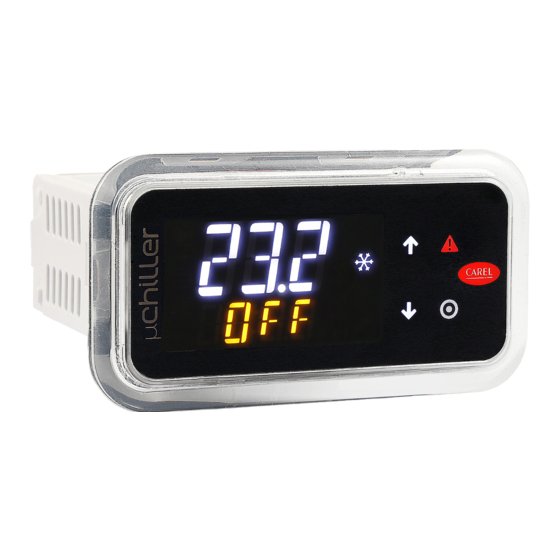

µChiller
Controller for Chiller / Heat Pump
µChiller
+0300053EN - ENG
Up to date version available on
www.carel.com
ENG
LEGGI E CONSERVA
QUESTE ISTRUZIONI
READ AND SAVE
THESE INSTRUCTIONS
