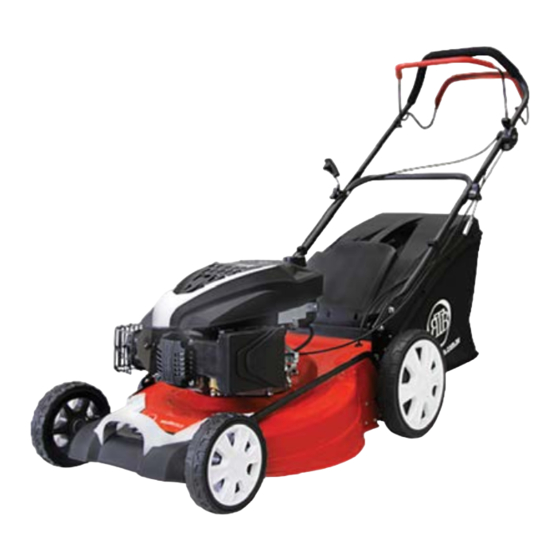

- Page 1 OWNER’S MANUAL Assembly & Operating Instructions SELF PROPELLED LAWN MOWER MODEL NO. BBT-SP70...
-
Page 2: To The Owner
Please do NOT return the Lawn Mower without first contacting the Customer Support Department at bbt@bbta.com.au. If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this Lawn Mower, please contact our Customer Support Department. SAVE THESE INSTRUCTIONS WWW.BBTA.COM.AU BBT-SP70... -
Page 3: Table Of Contents
Spark Plug ................................15 Air Filter ................................15 Adjusting the Transmission Cable ........................15 Storage .................................15 SPECIFICATIONS ............................16 WARRANTY & SERVICE ........................17 EXPLODED DIAGRAM & PARTS LIST....................18-21 Component Parts Diagram ..........................18 Engine Parts Diagram ............................20 YOU MAY ALSO LIKE ...........................22 BBT-SP70 WWW.BBTA.COM.AU... -
Page 4: Important Safety Information
Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine. WARNING! Your Responsibility—Restrict the use of this power machine to persons who have read, understood and will follow the warnings and instructions in this manual and on the machine. SAVE THESE INSTRUCTIONS! WWW.BBTA.COM.AU BBT-SP70... -
Page 5: Key To Symbols
Remove the spark plug before carrying out repairs. CAUTION! Tool surfaces can be hot. DO NOT use in the rain. Blades continue to rotate after the engine stops. Rotating blades are capable of amputating hands and feet and throwing objects. BBT-SP70 WWW.BBTA.COM.AU... -
Page 6: Safety Information
DO NOT tilt the mower when starting. If the mower needs to be tilted for starting then do not tilt it more than absolutely necessary and lift only the part that is furthest away from the user. • DO NOT start the machine by standing in front of the ejection. WWW.BBTA.COM.AU BBT-SP70... -
Page 7: Maintenance And Storage
Regularly check that the bolts, nuts and screws are properly tightened for safe use of the mower. • Always use hearing protection. Prolonged exposure to noise can cause hearing loss. • DO NOT expose yourself or others to exhaust fumes. BBT-SP70 WWW.BBTA.COM.AU... -
Page 8: Fuel Handling
Intended Use • This BBT 21” self-propelled lawn mower is designed for natural grass mowing. Any other use is prohibited. • This mower is suitable for private use in a garden or plot. It is designed for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. -
Page 9: Parts Location
2. Upper handle bar 3. Operator control lever 4. Plate 5. Lower bar 6. Flap Grass catcher 8. Recoil starter 9. Cutting height adjustment lever 10. Oil tank 11. Fuel tank 12. Flap of the side discharge 13. Side discharge BBT-SP70 WWW.BBTA.COM.AU... -
Page 10: Assembly
(3). C. User Plate » Insert the small plate in its dedicated location (both side). » Install the user plate. Screw the plate in place with the provided 4 screws provided (the holes are below the user plate). WWW.BBTA.COM.AU BBT-SP70... - Page 11 Release the flap so that it will close back to cover the mulching plug G. Cutting Height Adjustment » Push the lever outward to disengage it from the housing. Move it forwards or backwards to adjust the height. BBT-SP70 WWW.BBTA.COM.AU...
-
Page 12: Oil And Fuel Filling
Before tilting the mower to maintain the blade or drain the oil, empty the fuel tank. • NEVER fill the fuel tank in and enclosed space or while the engine has cooled down for at least 15 minutes after use. WWW.BBTA.COM.AU BBT-SP70... -
Page 13: Operation
Turn off the mower when taking long breaks during work. • Turn off the mower and wait for the blades to stop turning completely before moving or carrying the machine. • Clean your mower after each use as described in the section “Cleaning and Maintenance”. BBT-SP70 WWW.BBTA.COM.AU... -
Page 14: Maintenance & Storage
WARNING Use only original spare parts. Poor quality replacement parts can cause serious damage to your mower and affect your safety. Contact our service agent to obtain specifications regarding the correct the correct original spare parts. WWW.BBTA.COM.AU BBT-SP70... -
Page 15: Spark Plug
Clean and maintain the mower (as explained above) before storage. • The mower must be parked and stored in a safe location, out of humidity and away from flammable or dangerous material. • Store the mower out of reach of children. BBT-SP70 WWW.BBTA.COM.AU... -
Page 16: Specifications
Equivalent vibration value 6 m/s² K = 1.5 m/s² Technical Data is subject to change without notice. Always wear hearing protection when operating your machine. There is a risk of hearing loss if no hearing protection is worn. WWW.BBTA.COM.AU BBT-SP70... -
Page 17: Warranty & Service
Parts purchases, consumable components and accessories such as chains, carry bags, batteries, hoses, grinding discs, covers, belts, cable, wheels and blades are not covered by standard warranty. Spare Parts Spare parts are available. Please see our website (www.bbta.com.au) or contact us at bbt@bbta.com.au for more details. BBT-SP70... -
Page 18: Exploded Diagram & Parts List
EXPLODED DIAGRAM & PARTS LIST Component Parts Diagram DESCRIPTION DESCRIPTION SP-SP70-001 Blade bolt SP-SP70-045 Bracket SP-SP70-002 Butterfly type washer SP-SP70-046 Round rod SP-SP70-003 Swing blade SP-SP70-047 Square neck bolt SP-SP70-004 Blade holder SP-SP70-048 Side discharge SP-SP70-005 Washer SP-SP70-049 Plug SP-SP70-050... - Page 19 EXPLODED DIAGRAM & PARTS LIST BBT-SP70 WWW.BBTA.COM.AU...
-
Page 20: Engine Parts Diagram
EXPLODED DIAGRAM & PARTS LIST Engine Parts Diagram DESCRIPTION DESCRIPTION SP-SP70ENG -001 SP-SP70 ENG-056 Sleeve SP-SP70 ENG-002 Muffler cover SP-SP70 ENG-057 Pressing plate SP-SP70ENG -003 Muffler assembly SP-SP70 ENG-058 Hexagon flange bolts SP-SP70ENG -004 Heat insulation gasket of muffler SP-SP70 ENG-059... - Page 21 EXPLODED DIAGRAM & PARTS LIST BBT-SP70 WWW.BBTA.COM.AU...
-
Page 22: You May Also Like
YOU MAY ALSO LIKE Chainsaws Cultivators / Tillers Mulchers / Chippers Log Splitters COPYRIGHT © BIGGER BOYZ TOYZ AUSTRALIA PTY Unit 2/3 Delta Place Albion Park Rail NSW 2527 BBT-SP70-MNL1804...
