LGMedSupply LG QUAD Combo Quick Reference Manual

LG QUAD Combo
™
PAGE 4

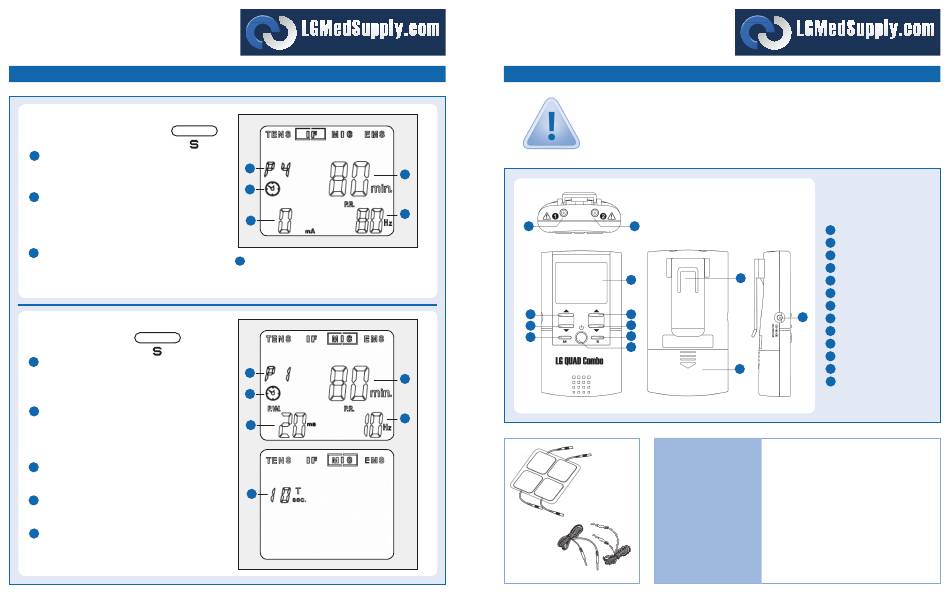

IF SETTING

Use 4 electrodes when using the Interferential mode. Press
the S button to enter and cycle through to each setting state.
1 SET THERAPEUTIC PROGRAM
There are 4 programs available in IF therapeutic mode. The therapeutic program can be
selected by pressing the s and t buttons. The mode you selected will show up on the
top of liquid crystal display.
SET TIMER
2
Press the S button to enter this setting. The treatment time is adjustable from
1 to 60 minutes or Continuous. Press the s and t buttons to adjust setting. You
can set the timer to "Continuous" mode by pressing the s control when it shows
60 minutes. The output will be shut off when time is up. If in continuous mode, you
need to manually turn off device.
3 SET INTERFERENCE FREQUENCY (OPTIONAL)
Channel 1 has 4000 Hz fixed fundamental frequency. Channel 2 has selectable
frequency from 4001 to 4150 Hz; Interference frequency is adjustable from
1 Hz to 150 Hz. Only "P4" has this parameter setting. Press the S button to enter this
menu, and then press the s and t buttons to adjusting the setting.

MICROCURRENT SETTING

Press the S button to enter and cycle through
to each setting state.
1 SET THERAPEUTIC PROGRAM
There are 3 programs available in MIC therapeutic program: Constant, Pulse Width
Modulation, and Pulse Rate Modulation. The therapeutic program can be selected
by pressing the s and t buttons. The mode you selected will show up on the top of
LCD Display.
2 SET TIMER
Press the S button to enter this setting. The treatment time is adjustable from
1 to 60 minutes or Continuous. Press the s and t buttons to adjust setting. You
can set the timer to "Continuous" mode by pressing the s control when it shows
60 minutes. The output will be shut off when time is up. If in continuous mode, you
need to manually turn off device.
3 SET PULSE WIDTH
Pulse Width is adjustable from 2ms to 200ms. Press the S button to enter this menu,
then press the s and t buttons to adjusting the setting.
4 SET PULSE RATE
Pulse rate is adjustable from 1 Hz to 150 Hz. Press the S button to enter this menu,
and then press the s and t buttons to adjusting the setting.
5 SET CYCLE TIME (OPTIONAL)
Cycle time is adjustable form 5 to 30 seconds. Only modulation mode has this
parameter setting. Press S button after scrolling through and completing all settings
to start the therapy program. The the s and t buttons can be used to increase
s or decrease t the intensity level.
PROBLEMS WITH YOUR DEVICE?
Please see pages 37 and 38 of your LG QUAD Combo™ Instruction Manual for troubleshooting tips.
Live Pain Free, Live Good Today!
QUICK REFERENCE GUIDE
1
2
2
4
3
SET CYCLE TIMER
4
Press S button after scrolling through and completing all settings to start the therapy
program. The the s and t buttons can be used to increase s or decrease t the
intensity level.
1
2
2
4
3
5
LG QUAD Combo
™
QUICK REFERENCE GUIDE
The purpose of this guide is to assist you in correctly operating your LG QUAD Combo™ unit. This
device should only be used under the continued supervision of a healthcare professional. This guide
is not intended to replace or substitute the LG QUAD Combo™ Instruction Manual. PLEASE READ THE
INSTRUCTION MANUAL COMPLETELY BEFORE USING THIS DEVICE. Read, understand and practice
the contraindications, warnings, cautions and operating instructions found on pages 8 – 13 on your
instruction manual. Always follow the operating instructions prescribed by your healthcare provider.
1 2
Top
6
3 7
4 8
9
5
10
Front

DEFINITIONS

TENS
Transcutaneous Electrical
Nerve Stimulator

ELECTRODES

IF
(4 SETS)
Interferential
MIC
Microcurrent
EMS

LEAD WIRES

Electrical Muscle Stimulation/
(2 SETS)
Neuromuscular Stimulation
For more information about your LG QUAD Combo™ unit, please visit us online at lgmedsupply.com or call 1-888-633-7360.
Live Pain Free, Live Good Today!

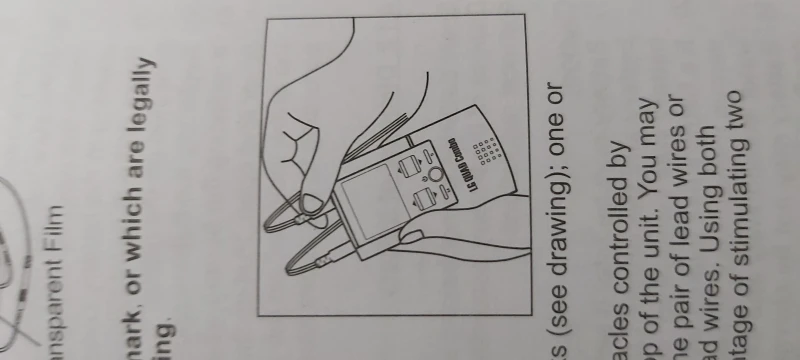

LG QUAD
COMBO
1 Channel 1 output socket
2 Channel 2 output socket
3 Channel 1 intensity increase button
4
Channel 1 intensity decrease button
11
5
Mode (M) selection button
6 LCD display
7
Channel 2 intensity increase button
13
8
Channel 2 intensity decrease button
9
Parameter (S) selection button
10
Power on/off button
11
Belt clip
12 12
Battery compartment cover
13
AC/DC adapter receptacle
Back Side

INDICATION FOR USE

The TENS / IF / MIC modes are often prescribed for:
• Symptomatic relief of chronic pain
• Post traumatic pain
• Post surgical pain
The EMS mode is often prescribed for:
• Relaxation of muscle spasms
• Increase of blood flow circulation
• Prevention of disuse atrophy
• Muscle re-education
• Maintaining or increasing range of motion
• Immediate post-surgical stimulation of lower
leg muscles to prevent venous thrombosis
Do not use this device for undiagnosed pain
syndromes until consulting a physician.
PAGE 1
UNIT
™
