Omnia.9sg
Stereo Generator with Psychoacoustically-Controlled
Distortion Masking Clipper
Quick Start Setup Guide
SW Version 3.19.39
For part numbers: 2001-00420-000, 2001-00495-000
ATTENTION!
This quick start guide is intended to aid with basic deployment of the Omnia.9sg.
For further support and/or questions please contact support@telosalliance.com
1490-00124-002 --- QUICK START GUIDE: OMNIA.9 SG
Omnia Audio • 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omnia.9sg and is the answer not in the manual?

Questions and answers

Related Manuals for Omnia Omnia.9sg

Summary of Contents for Omnia Omnia.9sg

  • Page 1 SW Version 3.19.39 For part numbers: 2001-00420-000, 2001-00495-000 ATTENTION! This quick start guide is intended to aid with basic deployment of the Omnia.9sg. For further support and/or questions please contact support@telosalliance.com 1490-00124-002 --- QUICK START GUIDE: OMNIA.9 SG Omnia Audio • 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION ABOUT YOUR NEW PRODUCT We know you’re eager to get your new gear up and running. But first, The Telos Alliance strongly suggests you use an Uninterruptible Power Supply (UPS), with power line filtering, to prevent damage in case of electrical storms or power surges.

  • Page 3: Telos Alliance Limited Warranty

    Telos Alliance Limited Warranty Telos Alliance Radio Division has an industry-leading five-year warranty. As a company, we are This Warranty covers “the Products,” which are defined as the various audio equipment, parts, software and commited to our products and the pursuit of providing better quality to our customers. accessories manufactured, sold and/or distributed by or on behalf of TLS Corp.

  • Page 4: Physical Installation

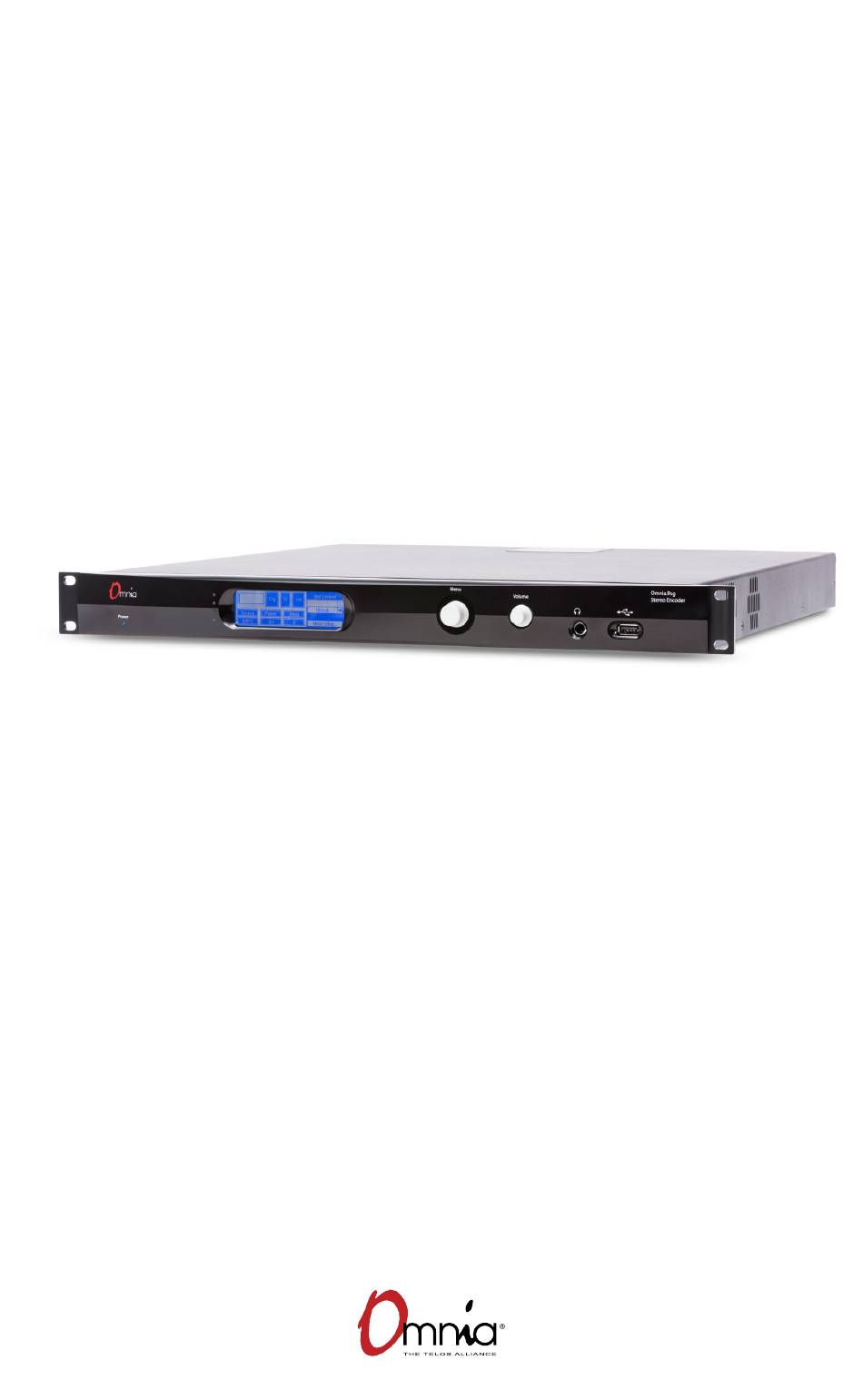

    Omnia.9sg is a slim 1RU design so it doesn’t take up much vertical rack space, but it is deep. Accordingly, you may wish to enlist the help of an assistant when racking it up and ensure there’s nothing to obstruct it toward the back of the rack.

  • Page 5: Unlocking The Unit

    In the event of a power or system failure, Omnia.9sg provides a hard relay bypass. When the bypass relay is engaged, MPX Input 1 is directly connected to MPX Output 1 while MPX Input 2 is directly connected to MPX Output 2.

  • Page 6: Front Panel Leds

    24-hour duration. While front panel navigation is always an option, primary setup and configuration is much more easily accomplished via the free NfRemote software application available from the Omnia.9sg product page on the TelosAlliance.com website. All screenshots and visual references within this document are taken directly from the NfRemote interface.
  • Page 7 Configuring Network Settings and Installing NfRemote Connect Omnia.9sg to your local network via the rear panel Ethernet connection. The unit is set up to receive an IP address via DHCP by default. Navigate to System > System Configuration > IP Configuration from the Main Menu and verify that an IP address has been assigned.
  • Page 8 When the NfRemote connection screen appears, enter the IP address and password of your Omnia.9sg. You may also fill in a “friendly” name in the Comment field to help identify the unit. Be sure to click on the dropdown menu to the far right of the connection window and choose the correct input method (local mouse, remote desktop/VM, touch screen, etc.)
  • Page 9 FM processor. Accordingly, increasing this control increases clipper drive. By default, this control is set to +12.5dB as it is presumed Omnia.9sg will normally be fed from an Omnia.9 using the “FM Pre-final L/R” patchpoint output which has been attenuated by the same amount to provide adequate headroom.
  • Page 10 Details of other controls are explained in the full manual. Using the Omnia Direct™ Output If the AES outputs will be used to feed an Omnia Direct signal, navigate to the Omnia.9sg > Stereo Generator > Digital Output menu and choose the appropriate source to feed the digital output.
  • Page 11 | OMNIA.9sg - QUICK START SETUP GUIDE Adjusting FM Diversity Delay If the output of Omnia.9sg needs to be delayed to match an HD signal, the adjustment can be made in the Omnia.9sg > Stereo Generator > Input Adjust menu. Separate adjustments are provided for the digital and analog inputs.
  • Page 12 The Telos Alliance • 1241 Superior Ave. • Cleveland, Ohio 44114 USA • +1.216.241.7225 • TelosAlliance.com Omnia Audio • 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2018 TLS Corp., All Rights Reserved. O18/4/15018...
