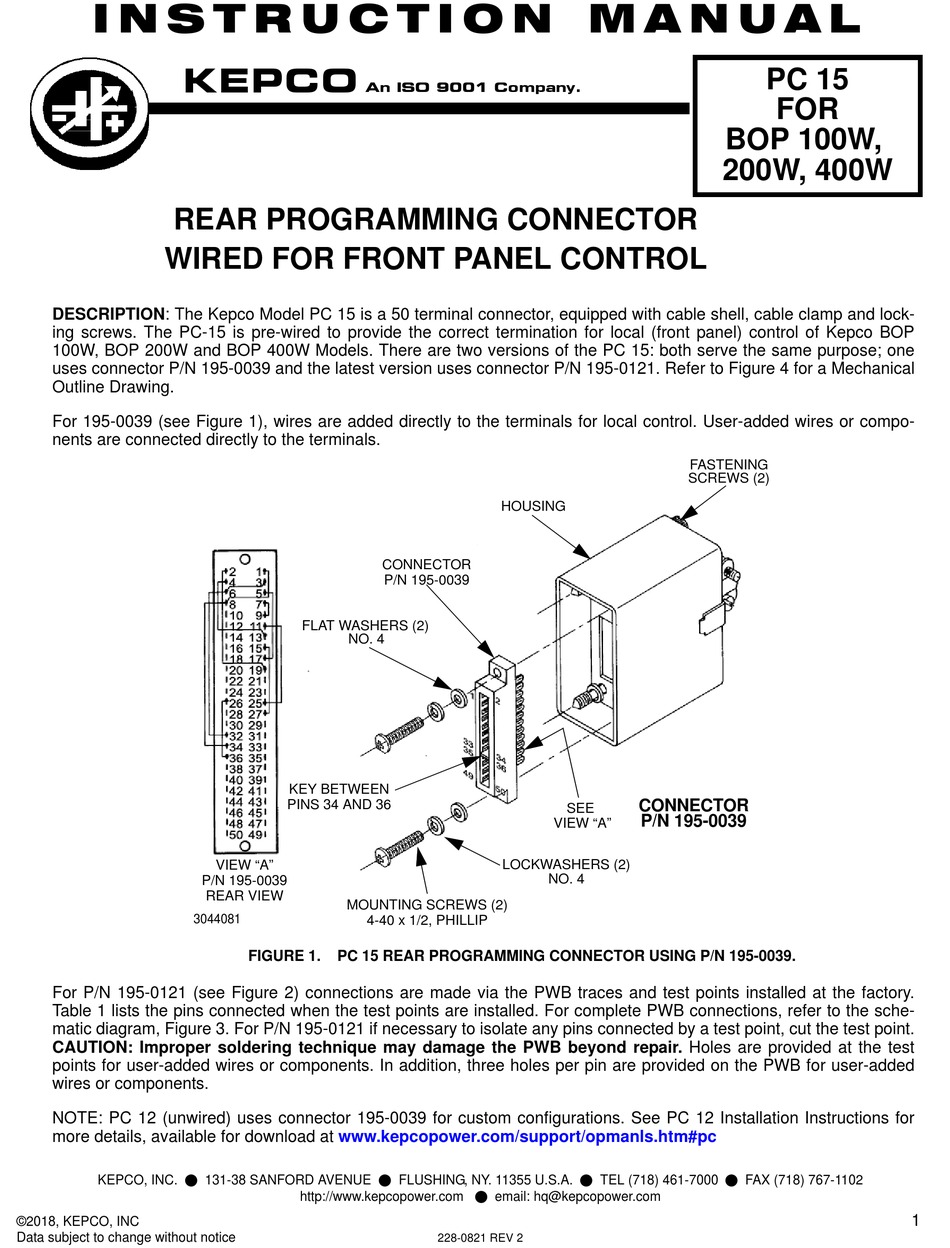

I N S T R U C T I O N M A N U A L
KEPCO
REAR PROGRAMMING CONNECTOR
WIRED FOR FRONT PANEL CONTROL
DESCRIPTION: The Kepco Model PC 15 is a 50 terminal connector, equipped with cable shell, cable clamp and lock-
ing screws. The PC-15 is pre-wired to provide the correct termination for local (front panel) control of Kepco BOP
100W, BOP 200W and BOP 400W Models. There are two versions of the PC 15: both serve the same purpose; one
uses connector P/N 195-0039 and the latest version uses connector P/N 195-0121. Refer to Figure 4 for a Mechanical
Outline Drawing.
For 195-0039 (see Figure 1), wires are added directly to the terminals for local control. User-added wires or compo-
nents are connected directly to the terminals.
3044081
For P/N 195-0121 (see Figure 2) connections are made via the PWB traces and test points installed at the factory.
Table 1 lists the pins connected when the test points are installed. For complete PWB connections, refer to the sche-
matic diagram, Figure 3. For P/N 195-0121 if necessary to isolate any pins connected by a test point, cut the test point.
CAUTION: Improper soldering technique may damage the PWB beyond repair. Holes are provided at the test
points for user-added wires or components. In addition, three holes per pin are provided on the PWB for user-added
wires or components.
NOTE: PC 12 (unwired) uses connector 195-0039 for custom configurations. See PC 12 Installation Instructions for
more details, available for download at
KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000  FAX (718) 767-1102
©2018, KEPCO, INC
Data subject to change without notice
An ISO 9001 Company.
FLAT WASHERS (2)
NO. 4
KEY BETWEEN
PINS 34 AND 36
VIEW "A"
P/N 195-0039
REAR VIEW
MOUNTING SCREWS (2)
4-40 x 1/2, PHILLIP
FIGURE 1.
PC 15 REAR PROGRAMMING CONNECTOR USING P/N 195-0039.
www.kepcopower.com/support/opmanls.htm#pc
http://www.kepcopower.com   email: hq@kepcopower.com
HOUSING
CONNECTOR
P/N 195-0039
VIEW "A"
LOCKWASHERS (2)
NO. 4
228-0821 REV 2
BOP 100W,
200W, 400W
FASTENING
SCREWS (2)
CONNECTOR
SEE
P/N 195-0039
PC 15
FOR
1
