I — Description
The Kepco Model PC 12 is a 50 terminal connector, equipped with
cable shell, cable clamp and locking screws. The PC 12 is
designed to provide the correct termination for Kepco equipment
with 50-pin, dual, edge-printed circuit rear connectors.
TABLE 1. KEY POSITIONS AND ASSOCIATED OPERATOR MANUALS FOR PC 12
MODEL GROUP
OPERATOR MANUAL
ATE 1/4 Rack
ATE 1/2 Rack
ATE 3/4 Rack
ATE FULL Rack
BOP 100W, 200W, 400W
KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000  FAX (718) 767-1102
©2018, KEPCO, INC
Data subject to change without notice
An ISO 9001 Company.
KEPCO MODEL PC 12 MATING CONNECTOR

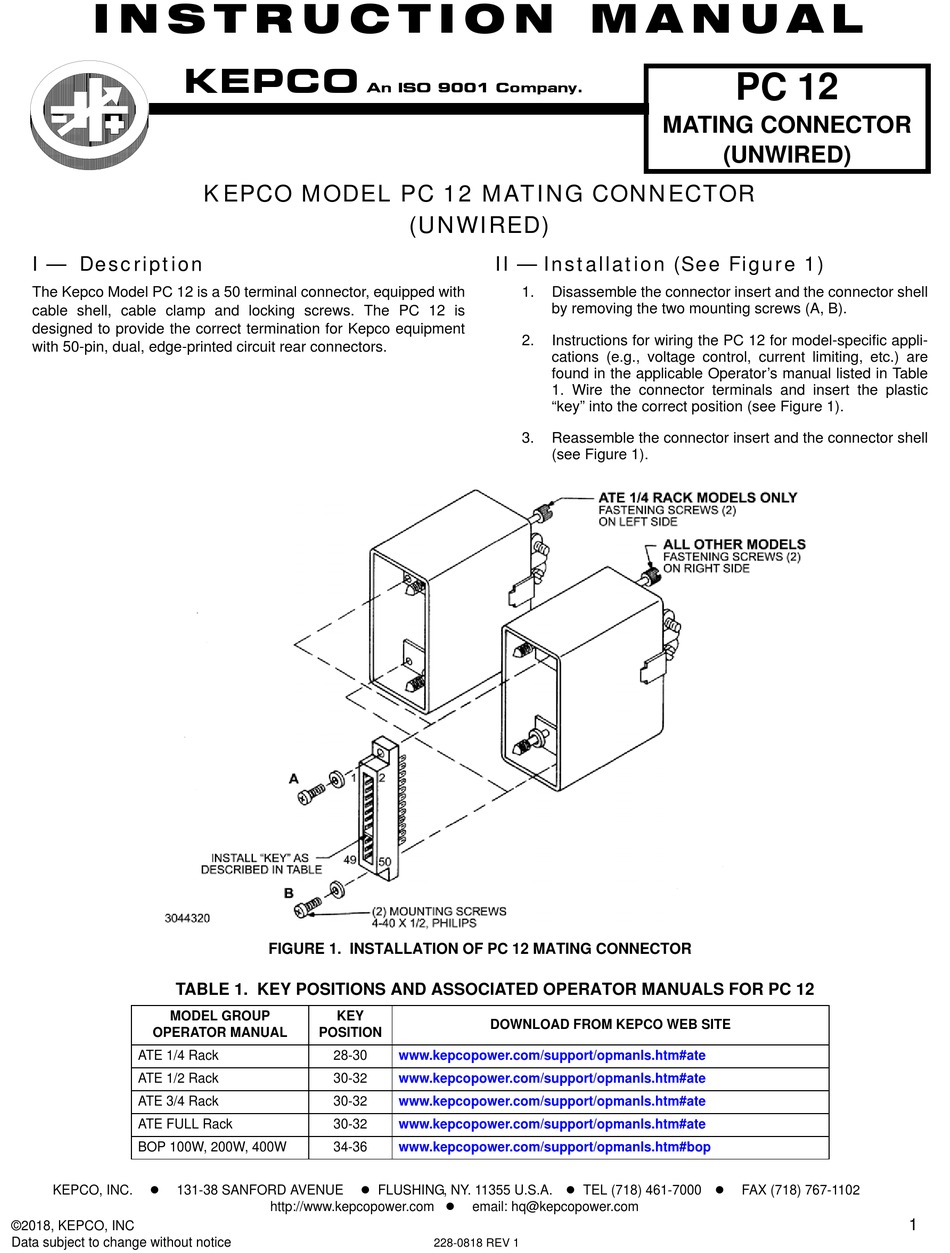

FIGURE 1. INSTALLATION OF PC 12 MATING CONNECTOR
KEY
POSITION
28-30
30-32
30-32
30-32
34-36
http://www.kepcopower.com   email: hq@kepcopower.com
(UNWIRED)
II — Installation (See Figure 1)
1. Disassemble the connector insert and the connector shell
by removing the two mounting screws (A, B).
2. Instructions for wiring the PC 12 for model-specific appli-
cations (e.g., voltage control, current limiting, etc.) are
found in the applicable Operator's manual listed in Table
1. Wire the connector terminals and insert the plastic
"key" into the correct position (see Figure 1).
3. Reassemble the connector insert and the connector shell
(see Figure 1).
DOWNLOAD FROM KEPCO WEB SITE
www.kepcopower.com/support/opmanls.htm#ate
www.kepcopower.com/support/opmanls.htm#ate
www.kepcopower.com/support/opmanls.htm#ate
www.kepcopower.com/support/opmanls.htm#ate
www.kepcopower.com/support/opmanls.htm#bop
228-0818 REV 1
