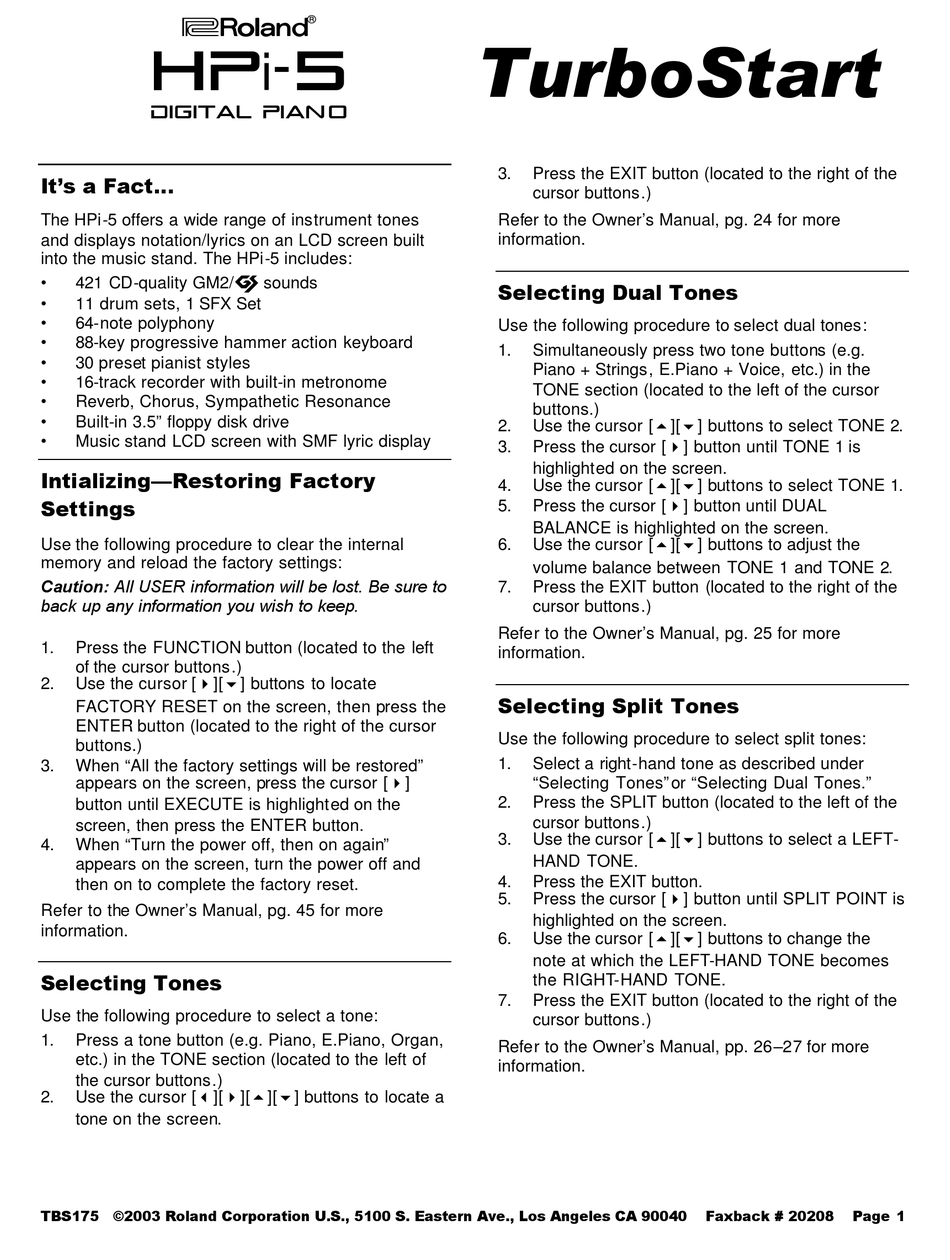

Roland HPi-5 TurboStart Manual

®ÂØÒňÎ
HPi-5
digital pian o
It's a Fact...
The HPi-5 offers a wide range of instrument tones
and displays notation/lyrics on an LCD screen built
into the music stand. The HPi-5 includes:
• 421 CD-quality GM2/© sounds
• 11 drum sets, 1 SFX Set
• 64-note polyphony
• 88-key progressive hammer action keyboard
• 30 preset pianist styles
• 16-track recorder with built-in metronome
• Reverb, Chorus, Sympathetic Resonance
• Built-in 3.5" floppy disk drive
• Music stand LCD screen with SMF lyric display
Intializing—Restoring Factory
Settings
Use the following procedure to clear the internal
memory and reload the factory settings:
Caution: All USER information will be lost. Be sure to
back up any information you wish to keep.
1. Press the FUNCTION button (located to the left
of the cursor buttons.)
2. Use the cursor [4][6] buttons to locate
FACTORY RESET on the screen, then press the
ENTER button (located to the right of the cursor
buttons.)
3. When "All the factory settings will be restored"
appears on the screen, press the cursor [4]
button until EXECUTE is highlighted on the
screen, then press the ENTER button.
4. When "Turn the power off, then on again"
appears on the screen, turn the power off and
then on to complete the factory reset.
Refer to the Owner's Manual, pg. 45 for more
information.

Selecting Tones

Use the following procedure to select a tone:
1. Press a tone button (e.g. Piano, E.Piano, Organ,
etc.) in the TONE section (located to the left of
the cursor buttons.)
2. Use the cursor [3][4][5][6] buttons to locate a
tone on the screen.
TBS175 ©2003 Roland Corporation U.S., 5100 S. Eastern Ave., Los Angeles CA 90040
®
TurboStart
3. Press the EXIT button (located to the right of the
cursor buttons.)
Refer to the Owner's Manual, pg. 24 for more
information.
Selecting Dual Tones
Use the following procedure to select dual tones:
1. Simultaneously press two tone buttons (e.g.
Piano + Strings, E.Piano + Voice, etc.) in the
TONE section (located to the left of the cursor
buttons.)
2. Use the cursor [5][6] buttons to select TONE 2.
3. Press the cursor [4] button until TONE 1 is
highlighted on the screen.
4. Use the cursor [5][6] buttons to select TONE 1.
5. Press the cursor [4] button until DUAL
BALANCE is highlighted on the screen.
6. Use the cursor [5][6] buttons to adjust the
volume balance between TONE 1 and TONE 2.
7. Press the EXIT button (located to the right of the
cursor buttons.)
Refer to the Owner's Manual, pg. 25 for more
information.
Selecting Split Tones
Use the following procedure to select split tones:
1. Select a right-hand tone as described under
"Selecting Tones" or "Selecting Dual Tones."
2. Press the SPLIT button (located to the left of the
cursor buttons.)
3. Use the cursor [5][6] buttons to select a LEFT-
HAND TONE.
4. Press the EXIT button.
5. Press the cursor [4] button until SPLIT POINT is
highlighted on the screen.
6. Use the cursor [5][6] buttons to change the
note at which the LEFT-HAND TONE becomes
the RIGHT-HAND TONE.
7. Press the EXIT button (located to the right of the
cursor buttons.)
Refer to the Owner's Manual, pp. 26–27 for more
information.
Faxback # 20208 Page 1
