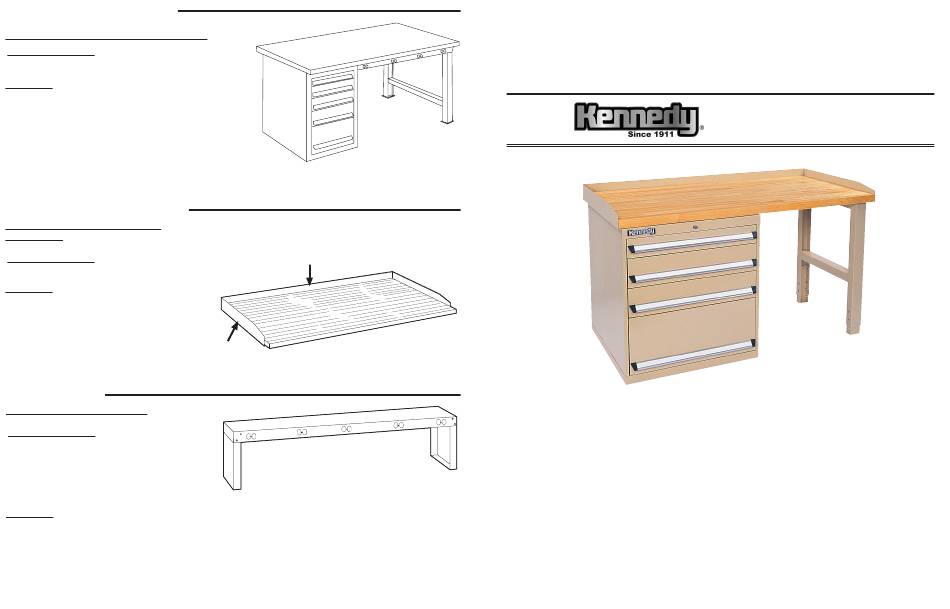

Kennedy MODULAR WORK STATION Assembly & Instruction Manual

ELECTRICAL PANEL ASSEMBLY

ELECTRICAL PANEL ASSEMBLY SUPPLY LIST

PARTS DESCRIPTION
Lag Screws
ASSEMBLY:
1. Remove required knock outs from electrical panel.
2. Align electrical panel to bottom front edge of work
top. Mark mounting holes pattern to the top.
Pre-drill 3/16" x 3/4" starter holes for lag screws.
3. Align electrical panel to the top and attach using
lag screws.

SIDE/BACK RETAINER ASSEMBLY

SIDE/BACK RETAINER ASSEMBLY
SUPPLY LIST
PARTS DESCRIPTION
(14) 14 x 5/8" Screws
ASSEMBLY:
1. Turn wood top upside down and place side and
back retainers.
2. Fasten with 14 x 5/8" screws.
3. Attach wood top to cabinet and/or legs.

RISER ASSEMBLY

RISER ASSEMBLY SUPPLY LIST

PARTS DESCRIPTION
(6) Hex Screws, 5/16" x 1"
(6) 5/16" x 3/4" x 5/64" Washers
(8) 1/4" x 20 Hex Nuts
(8) 1/4" Lock Washers
(8) 1/4" x 20 x 1/2" Pan Head Slotted Screws
(8) Washers
ASSEMBLY:
1. Attach riser top to sides using (2) each Pan
Head Screws, 1/4" Lock Washers and 1/4" x 20
Hex Nuts.
2. Align riser on wood top and fasten with
5/16" x 1" Hex Screws and 5/16" x 3/4" x 5/64"
Washers, (3) on each end.
Thank you for purchasing this Kennedy product. We produce value-built products for value
conscious users. We welcome any comments or suggestions you may have. Just call or write
the address below. We hope you will continue to find Kennedy the most complete source for
your tool storage needs.

BEFORE ASSEMBLY OF YOUR WORK STATION

56607
Check carefully to ensure that all parts listed below are included. If any are missing, please call 1-800-413-8665
and ask for the Sales Department. Do not discard packing material until assembly is complete.

TOOLS REQUIRED

7/16" Open End Wrench or Socket Wrench—Main Assembly
1/2" Open End or Socket Wrench—Steel Top Assembly
Drill and 3/16", 5/16" Drill Bit—Top Pilot Hole—Wood Top Assembly
24" Combination Square
56601
Kennedy Manufacturing Company • 1260 Industrial Drive • Van Wert, OH 45891
Phone 1-800-413-8665 • FAX 419-238-5644 • www.kennedymfg.com
MODULAR WORK STATION
ASSEMBLY INSTRUCTIONS
Part No. 527067, Rev. 8/09
