StetSom 6K5 ES User Manual

LEDS INDICATORS (TOP OF THE AMPLIFIER)

- BLUE LED (POWER) - RED LED (PROT) illuminates only when
lights when the power there is a problem in the functioning of
is on. the device.

SYSTEM TROUBLESHOOTING

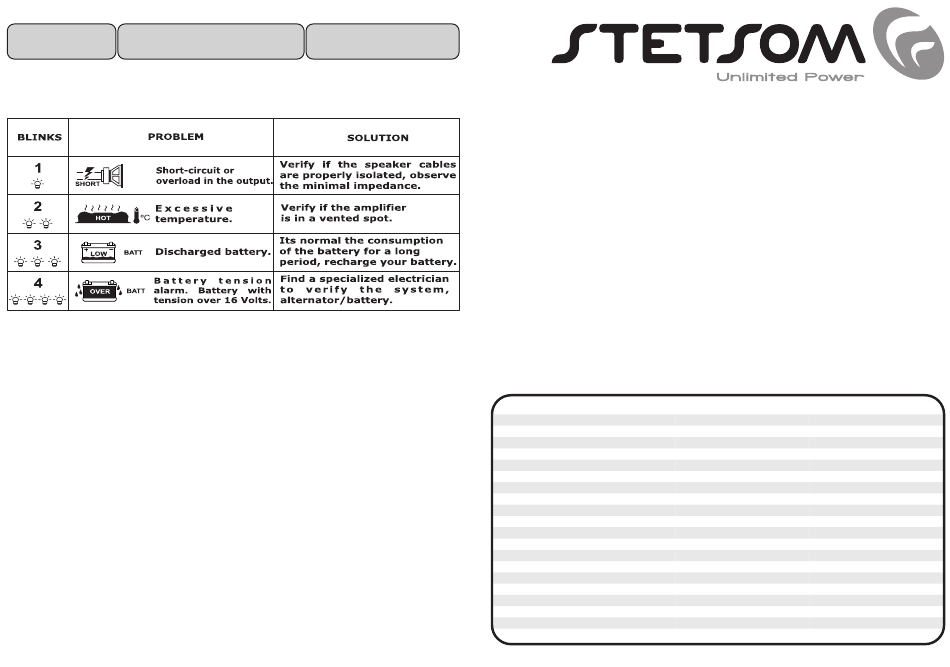

If some problem occurs, the amplifier will shut down and the RED LED will flash alternately with the BLUE LED. As
the problem occurred, the BLUE LED will blink a certain number of times. So we have a diagnosis according to the
table below:
Note: If only the RED LED blinks (BLUE LED OFF), turn on the device with the volume of CD/MP3-player down. If
the problem persists, please contact us.

WHAT TO DO IN CASE OF PROBLEMS

NOT TURN ON:
- The cables are not properly connected (terminals +BATT, GND and REM). Make sure that all
connections are mechanical and electrical contact.
- Fuses / breakers (external) are defective or burned. Pay attention to the correct value of the new fuse!
NO SOUND:
- The cables of the speakers or RCA plugs are not connected correctly.
- Check that the LEVEL control is not in the minimum.
NO SOUND/PROTECTION RED LED FLASHING:
- See diagnosis UP (SYSTEM TROUBLESHOOTING).
- The speakers or cables defectives thus check the speakers, cables and connections.
POOR SOUND QUALITY (DISTORTION):
- The speakers are overloaded, therefore decrease the level and redo the gain setting (See item 2 /
OVERVIEW).
WEAK BASS:
- Cables speakers (+) and (-) are reversed, speaker out of phase (see Section 7 / overview).
MOTOR NOISE, HORN, SIGNAL LIGHT, ETC:
- Use suppressive cables in ignition candles.
- Use capacitors in the alternator, horn and ignition.
- Pass the RCA cable away from any other cable, because it is more sensitive to interference.
- Connect to power (+12 V) to separate the sound system. Use a fuse to 30 cm from the battery for
protection.
- Make a good grounding of the amplifier. To do this removes the paint from the chassis of the vehicle at
the desired point. Screw the cable using a ground terminal. To protect from oxidation, insulate with
paint.
- Do not loop the ground wire. Avoid using several ground wires. Prefer a star connection, with all the
ground wires aside from a single point.
www.stetsom.com - export@stetsom.com
- RED LED (CLIP) flashes when
the amplifier output begin to
distort the sound.
USER'S GUIDE
DIGITAL LINE DIGITAL LINE

SPECIFICATIONS

Model:
Number of Channels:
RMS Power @ 13.8V 1 Ohm:
RMS Power @ 13.8V 2 Ohms:
RMS Power @ 13.8V 4 Ohms:
RMS Power @ 12.6V 1 Ohm:
RMS Power @ 12.6V 2 Ohms:
RMS Power @ 12.6V 4 Ohms:
Work Voltage:
Frequency Response:
Crossover LOW PASS:
Subsonic Filter Frequency:
Total Harmonic Distortion:
Signal to Noise:
Minimum input sensitivity:
Input Impedance
Minimum Work Impedance
Consumption / musical signal:
Consumption / BASS signal:
Dimentions (H x W x L):
Weight:
6K5 ES - 1 OHM
6K5 ES - 2 OHMS
6K5 ES – 1 OHM 6K5 ES – 2 OHMS
1 1
7.150 Watts -
4.420 Watts 7.200 Watts
2.500 Watts 4.550 Watts
6.500 Watts -
4.300 Watts 6.500 Watts
2.100 Watts 3.050 Watts
9,5 to 16V 9,5 to 15V
10Hz to 8KHz 10Hz to 8KHz
50Hz to 8KHz 50Hz to 8KHz
20 to 80Hz 20 to 80Hz
< 0,9% < 0,9%
> 90 dB > 90 dB
0,2V 0,2V
20K OHMS 20K OHMS
1 OHM 2 OHMS
3,5 to 293A 3,5 to 260A
3,5 to 586A 3,5 to 520A
75 x 310 x 456 75 x 310 x 456
6,6 Kg 6,6 Kg
Nov/12 / Rev 1A
