Technical specification
Mounting torque:
Operating temperature:
Media temperature:

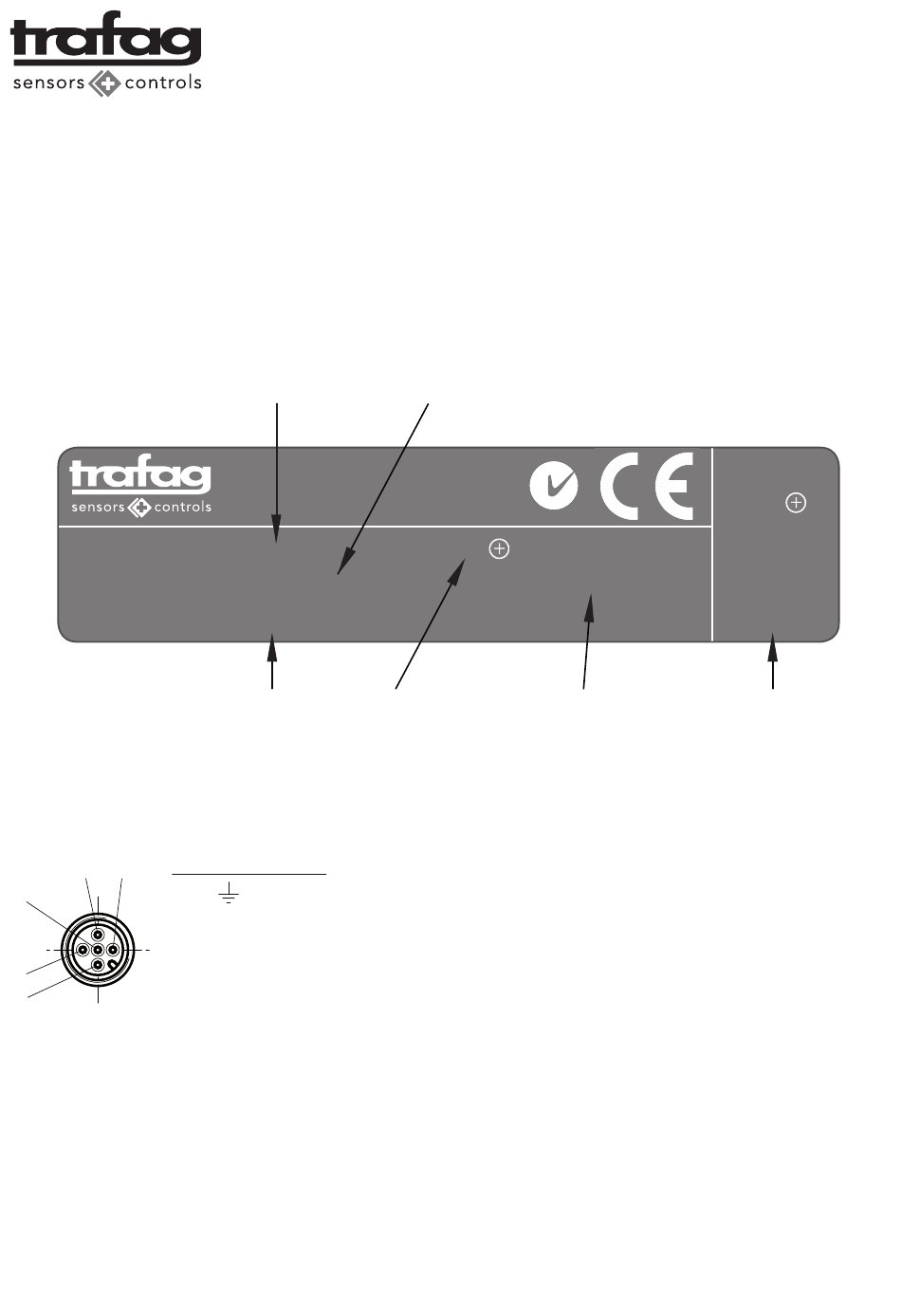

Type label description
Type
: 8270.XX.XXXX
Range : X...XXX XXXX-G
S/N
: XXXXXX-XXXXXXXXXX XXXXX
Pin Out
3
2
1
5
2
3
4
4
1
5
www.trafag.com
Instructions
max. 25 Nm
-40°C ... +125°C
-50°C ... +135°C
Type code
CANopen
CMP
DS404/165
Serial number
Supply voltage
V+
(24VDC)
V —
(0 VDC)
CAN_High
CAN_Low
CANopen Miniature Pressure Transmitter
Measuring range
US : 8...32 VDC
Out: CAN 20A/B
Output signal
CANopen-protocol
Output signal:
CANopen:
Device profile:
Baudrate:
Error control:
Node ID:
No. of PDO's:
PDO modes:
PDO linking:
PDO mapping:
No. of SDO's:
Emergency message:
CiA certified:
1 SHLD
2 US
3 GND
4 CAN-H
5 CAN-L
Pin assignment
CAN BUS (ISO 118982)
DS-301 V4.0
DS-404 V1.2
10kbit/s...1Mbit/s, Auto
Nodeguarding, Heartbeat
LSS (DSP 305 V2.0) full
implemented, proprietary
4 Tx
event-/time-triggered
remotely requested
sync (cyclic), sync (acyclic)
yes
yes
1 server
yes
yes
8270
CMP
