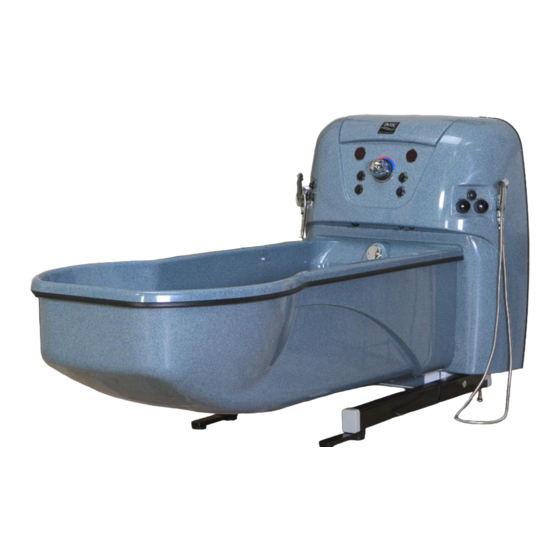

Penner Manufacturing PACIFIC Safe Operation & Daily Maintenance Instructions

Aqua-aire recumbent heightadjustable bath system 9700 & still bath
Hide thumbs
Table of Contents

Advertisement

Quick Links

P
ACIFIC
Aqua-Aire Recumbent Height-
Adjustable Bath System 9700
& Still Bath
Safe Operation & Daily Maintenance Instructions
PENNER MANUFACTURING, INC
101 Grant St.
Aurora, Ne 68818
www.pennerbathingspas.com
1-866-PENNERS
1-866-736-6377
1-800-732-0717
390750 Revision C 09/28/17
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PACIFIC and is the answer not in the manual?

Questions and answers

Related Manuals for Penner Manufacturing PACIFIC

Summary of Contents for Penner Manufacturing PACIFIC

  • Page 1 ACIFIC Aqua-Aire Recumbent Height- Adjustable Bath System 9700 & Still Bath Safe Operation & Daily Maintenance Instructions PENNER MANUFACTURING, INC 101 Grant St. Aurora, Ne 68818 www.pennerbathingspas.com 1-866-PENNERS 1-866-736-6377 1-800-732-0717 390750 Revision C 09/28/17...

  • Page 2: Table Of Contents

    Pacific Tub Technical Data • Stretcher/Transfer Lift Technical Description • Basic Components • Pacific Aqua-Aire Control Panels • Pacific Still Bath Control Panels • System Preparation (Before Bath) 11-13 • Transfer from Bed to Bath • Transfer At The Bathing Station •...

  • Page 3: Introduction

    • The Stretcher/Transfer Lift is designed to safely transport the resident to, into, and from the Pacific Bathing System. Its efficient benefits are also only realized if the system is operated and cared for properly.

  • Page 4: Symbols And Terms

    Type “B” Equipment CAUTION • The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Pacific Bath and Stretcher/Transfer Lift equipment, and may void the warranty. Left or Right •...

  • Page 5: Regulatory Data

    • An electrical circuit diagram can be found on the inside of the lid of the electrical box located inside the top lid of the Pacific Tub Panel. • Service parts and technical information are available by contacting your distributor or by calling one of the telephone numbers located on the front or back cover of this manual.
  • Page 6 The Pacific Bath is longer and wider to allow the use of an optional Stretcher/Transfer Lift for ease of care by the resident. A thermostatic mixing valve controls incoming water temperature.

  • Page 7: Basic Components

    The Stretcher/Transfer Lift is a mobile battery operated device designed for lifting residents into and out of the Pacific Bath. It is intended for use in nursing homes, hospitals, and assisted living facilities to aid in bathing residents under the direct supervision of trained staff.
  • Page 8 The Stretcher/Transfer Lift is a specially designed mobile stretcher to aid you in transferring your residents from their beds to the bathing room, and into the Pacific Bathing System. The stretcher on the Transfer Lift adjusts to enable lifting the resident into the Pacific Bath and obtaining efficient submersion to bathe the resident.

  • Page 9: Pacific Aqua-Aire Control Panels

    Pacific Aqua-Aire Bath Control Panels Temperature Control Knob (Fill/Shower) Fill/Shower Water-Temperature Readout Tub-Temperature Readout Tub Fill ON / AUTO OFF Button Tub Fill OFF Button Tub Height Up Button Tub Height Down Button Aqua-Aire ON/OFF Button Rinse Jets Button (On tubs with Aqua-Aire only, Push and Hold)

  • Page 10: Pacific Still Bath Control Panels

    Pacific Still Bath Control Panels Temperature Control Knob (Fill/Shower) Fill/Shower Water-Temperature Readout Tub-Temperature Readout Tub Fill ON / AUTO OFF Button Tub Fill OFF Button Tub Height Up Button Tub Height Down Button Disinfect Hand Spray Button (On/Auto Off) Hand Shower On/Auto Off (The unit has an adjustable time automatic shut-off)
  • Page 11 These bottles are located inside the top lid on the Pacific Bath Tub Panel. Replace a bottle before it runs out to avoid re-priming the system.
  • Page 12 Note: The Pacific Bath System is a large capacity tub. Fill only to the level required to obtain the desired submersion determined by the type of resident you are bathing.

  • Page 13: System Preparation (Before Bath)

    Preparation System (Before Bath) continued WARNING Do not overfill, splash, or spill water on the floor. Water on the floor could result in injury to the operator or resident. When filled, press the Fill Button again to stop the water flow.

  • Page 14: Transfer From Bed To Bath

    Adjust the incline BEFORE the resident has been transferred into the Pacific Bath. Failure to ensure the resident’s head is above water level, could result in injury to the resident or patient.
  • Page 15 Lock the casters once again and you are now ready to lower the resident into the Bath or raise the Pacific Bathing system up to the Stretcher/Transfer Lift whichever is safest for the resident and operator.
  • Page 16 Bathing system and/or the Stretcher/Transfer Lift. Before raising the Pacific Bath, ensure that all limbs are inside the Stretcher so that the limbs don’t get pinched between the tub rim and the bottom of the Stretcher frame. Raise the Pacific Bath button #6 to height that is ergonomically correct for you to bathe the resident.

  • Page 17: Bathing Procedure

    Bathing Procedure You are now ready to begin washing the resident. The suggested bathing time is 5 to 10 minutes. Bathing a resident more than 10 minutes is not recommended. To bathe the resident, use the following procedures: Start the Aqua-Aire (Aqua-Aire tubs) by pressing the on/off Button #8. Procedures applying to any water action do not apply to the ( Still Bath System).
  • Page 18 Bathing Procedure Continued Bathe the resident’s upper body as follows: a) Push the Shampoo Pump Plunger #14 and dispense (from shampoo dispensing spout) into your hand or into a washcloth. Then apply the Penner Shampoo & Body Wash directly to the resident’s body. b) Begin gently washing the resident’s upper body.
  • Page 19 Bathing Procedure Continued Note. Once the shower sprayer is activated, it will stay activated for a period of time and then automatically shut off. This time period (up to 10 minutes) is adjustable by maintenance personnel only. The shower sprayer will shut off when releasing the trigger.
  • Page 20 Bathing Procedure Continued The resident’s feet will be cleaned by the Aqua-Aire bubbling action) at the bottom of the tub. For Still Baths and extremely soiled feet, use the following procedure: a) Raise the Stretcher/Transfer Lift seat until the resident’s feet are at the same level as the outlet.
  • Page 21 Failure to take these precautions could result in injury to the resident or operator. Failure to take these precautions could also result in damage to either the Pacific Tub and/or the Stretcher/Transfer Lift. Turn off the Aqua-Aire button # 8, and remove the drain plug.
  • Page 22 If the bottom of the Stretcher/Transfer Lift will not clear the rim of the Pacific Bath, raise or adjust the height of the Stretcher/Transfer Lift to clear the rail two inches. Rinse the resident’s body with the shower sprayer.
  • Page 23 Raise the Stretcher/Transfer Lift to clear the edge of the Pacific Tub which is still in its lowest position. Move the Stretcher/Transfer Lift over the Pacific Tub, then lower into the...

  • Page 24: System Cleaning (After Every Bath)

    System Cleaning (After Every Bath) Clean and disinfect the Pacific Tub and Stretcher/Transfer Lift after every bath with Penner Cleaner/Disinfectant as follows: Note. Penner Cleaner/Disinfectant is a special non-abrasive cleaning and disinfecting solution that will not harm the tub’s fiberglass surface. Penner Cleaner/Disinfectant is the only cleaning solution designed and recommended for use with your Pacific Tub.
  • Page 25 System Cleaning (After Every Bath) WARNING Housekeeping personnel should wear protective glasses and gloves to prevent disinfectant from damaging their eyes or skin. If disinfectant gets on the skin or in the eyes, rinse thoroughly with plenty of water. Seek medical advice if irritation occurs.

  • Page 26: Daily Maintenance

    Then press and hold the rinse button (#9) until you see clear water (not soapy) coming out of the air jets. Release the rinse button. Finish rinsing the interior surfaces of the Pacific Bath and all surfaces of the Stretcher/Transfer Lift with the shower sprayer.
  • Page 27 Seek medical advice if irritation occurs. Perform the Daily Safety Checklist described in the following section before using the Pacific Bathing System. WARNING Failure to perform the daily safety checks and take corrective action, when required, prior to the operation of the equipment each day could result in injury to the resident or operator.

  • Page 28: Daily Safety Checklist

    The water temperature should be consistent with the thermometer reading and should not feel too hot or too cold. Check the Actuator operation by raising and lowering the Pacific Tub insuring a smooth motion with no grinding, binding, or rubbing anywhere.
  • Page 29 Pacific Recumbent Height Adjustable Bath System 9700. If you have any questions about the operation or maintenance of your Pacific Bath System, please contact your Penner Distributor. For your nearest Penner distributor, contact Penner Patient Care, Inc. at...
