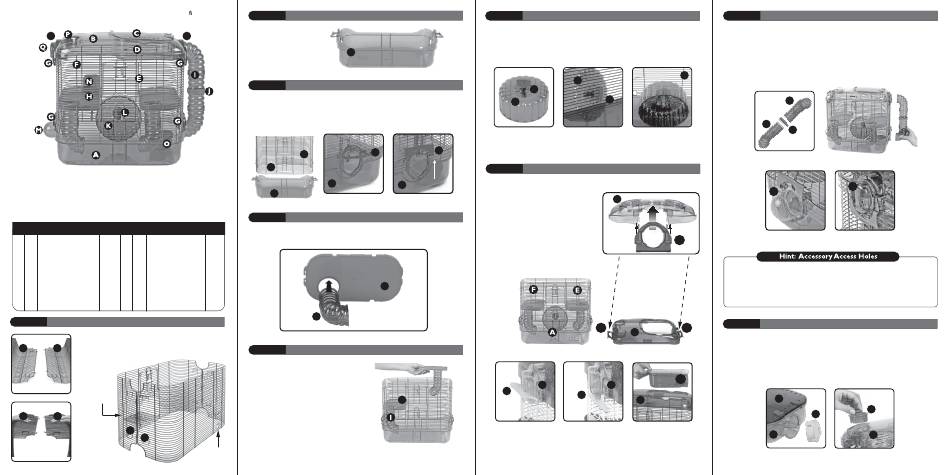

Kaytee CritterTrail Two Level Habitat Assembly Instructions page 2

Examine each part and identify each component using the parts identi cation list.
Habitat Measures/Dimensions de l'habitat /El hábitat mide: 16"(40.6cm) L x 10.5"(26.7cm) W x 16"(40.6cm) H
R R
CritterTrail
®
Two Level Habitat
Parts Identification: Item #100079217
QTY. KEY DESCRIPTION COLOR QTY. KEY DESCRIPTION
1 A 1 J
Scatter-less Base Purple Fun-nel Connector Ring
1 B 1 K
Roof Top Yellow Bubble Wave Wheel
C L
1 Petting Zone™ Lid Green 1 Wheel Connector Clip
D M
1 Petting Zone™ Base Yellow 1 Bubble Plug
E N
1 Front Wire Panel w/ Door Blue 1 Water Bottle
F O
1 Back Wire Panel Blue 1 Round Food Dish
G P
4 Side Latch Red 1 Petting Zone™ Cap
H Q
2 Comfort Shelf Red 1 Twist Lock Opening Cap
I R
4 Bubble Wave J-Tubes Blue 2 Roof Top Passageway
STEP 1
Connect the Wire Panels
Place the Front Wire Panel w/ Door (E) so the spring loaded door
latch opens downward. Place the Back Wire Panel (F) so that the
E F
opening for the bottle nozzle is on the bottom. Connect the Front
Wire Panel w/ Door (E) to the
Back Wire Panel (F) by
hooking the wire
into each other
(as pictured).
Door
opens
down.
E F
E
F
STEP 2 Fill Scatter-less Base with Bedding
Fill the Scatter-less Base
(A) with a liberal amount
of bedding material.
A
(Not Included)
STEP 3 Attach Wire Panels
Place the assembled Front Wire Panel w/ Door (E) and the assembled Back Wire
Panel (F) on to the Scatter-less Base (A). The Wire Panel Assembly should fit inside
the tabs of the Scatter-less Base (A). To secure, snap the two Side Latches (G) on the
Scatter-less Base (A) to the Wire Panel Assembly (E & F).
G
E
F
A
A
Unlocked
STEP 4 Assemble Comfort Shelves
COLOR Click-lock two blue Bubble Wave J-Tubes (I) into each of the circular openings on the
bottom of the Comfort Shelves (H).
Purple
Green
Yellow
Yellow
Blue
Green
H
Blue
Red
Red
I
STEP 5
Install Comfort Shelves
Install the assembled Comfort Shelves (H)
through the open top. Position the
right-side Comfort Shelf (H) with the
Bubble Wave J-Tube (I) facing the back of
the cage. Position the left-side comfort
shelf (H) with J-Tube (I) facing the front of
the cage. Place the Comfort Shelves on the
16 th wire bar from the bottom.
Opening
for bottle
nozzle.
STEP 6
Bubble Wave Wheel Assembly
Insert the Wheel Connector Clip (L) into the center hole of the Bubble Wave Wheel (K).
Install the Bubble Wave Wheel (K) through the open top. Attach the Bubble Wave Wheel
(K) to the center of the Back Wire Panel (F) between the fifth and sixth wire bars up from the
bottom. Twist the Connector Clip (L) half way to lock wheel into place.
K
L
K
Tip: To keep your Bubble Wave Wheel silent, place a drop of vegetable oil
directly on the spindle of the Wheel Connector Clip.
G
STEP 7
Roof Top Attachment and Petting Zone™
A
First, attach a Roof Top Passageway (R) with
Latch Assembly (G) to the left and right side
Locked of the Roof Top. Press firmly, the Assembly
snaps tightly into Roof Top.
Place the Roof Top (B) onto the top of the
assembled bottom portion of the habitat.
Line up the Roof Top (B) over the
assembled Wire Panel Assembly (E & F).
To secure, connect the two Side Latches
(G) on the Roof Top (B) to the Wire Panel
Assembly (E & F).
B
G
H
Unlocked
Next, insert the assembled Petting Zone™ (C/D) into the large hole on the Roof Top
(B) so that the opening in the Petting Zone is aligned with the hole in the Right Side
Passageway.
STEP 8
Using the Fun-nel™ Connector Ring (J) attach the remaining two Bubble Wave J-Tubes (I)
together. Slide the assembled tubes onto the circular openings on the right side. This will
allow your pet to have access to the Petting Zone™. Lock the Bubble Plug (M) into the
bottom circular opening on the left side. Slide the Twist Lock Opening Cap (Q) downward
into the top opening on the left side. To lock, turn the gap so it faces downward. To unlock
turn the gap so it faces upward and slide up.
F
L
B
Note: Once
Assembly snaps
into place, it
R/G
should not be
removed.
There are four unused access holes that will allow you unlimited expansion of your pet's home
with the use of CritterTrail
holes until you are ready to expand your pet's home and have already purchased your
accessories! Access holes CANNOT be closed once opened. To close an opened access hole
on the Roof Top (
the Critter Trail
STEP 9
R/G R/G
B
The entire Petting Zone™ can be removed for use as a temporary pet carrier, or to
hold your pet while you clean its cage. Simply remove the Petting Zone™ from the Roof
Top and insert the Petting Zone™ Cap (P) into the opening of the Petting Zone™.
(Do not leave your pet unattended in the removable Petting Zone™.)
Special Note: The Petting Zone™ Cap (P) can also be used to close off the Roof Top
openings in the CritterTrail
C/D
B
G
B
Locked
Accessory Attachment
I
I
J
Q
M
® Add-on accessories. DO NOT punch out the additional access
B ) you will need to use a CritterTrail ® 10" Fun-nel #100079222 with any of
Fun-nel™ Tube accessories.
®
Removing Petting Zone™
® Two Level Habitat™ unit.
C
P
P
D B
