ICI IR 640 P User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ICI IR 640 P
Thermal Camera
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR 640 P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICI IR 640 P

Summary of Contents for ICI IR 640 P

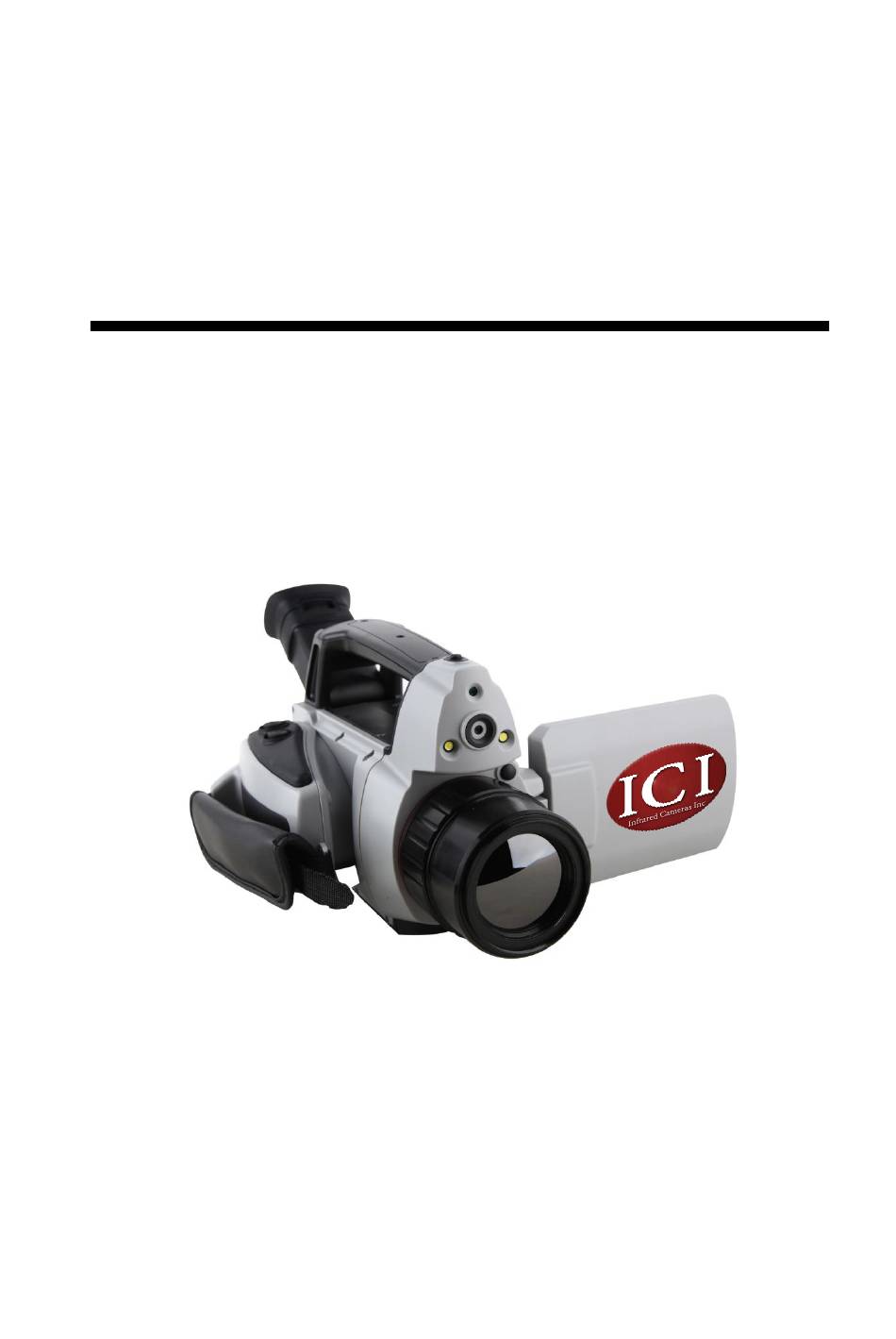

  • Page 1 ICI IR 640 P Thermal Camera User’s Manual...

  • Page 2: Warnings, Cautions And Notes

    ! Warnings, Cautions and Notes Definitions  WARNING Could cause bodily injury or death.  CAUTION Could cause damage to equipment or permanent loss of data.  NOTE provides useful information to the operator. Important Information – Read before using the Instrument ...
  • Page 3 camera to stabilize after initial power up.  NOTE - Each camera is factory calibrated. It is recommended that calibration be performed every 12 months.  CAUTION - Do not open case. Unit does not contain any user serviceable parts. Repair should be performed by factory authorized technicians only. Opening the product will void your warranty.

  • Page 4: Table Of Contents

    Contents ! Warnings, Cautions and Notes ............2 Introduction .......... Error! Bookmark not defined. Standard accessories ....................9 Optional accessories ..........Error! Bookmark not defined. Camera overview ............... 10 Function keys ......................10 Interface............... Error! Bookmark not defined. Basic operation ........Error! Bookmark not defined. Battery Installation and Replacement ....
  • Page 5 4.6.2 Temperature measurement settings ....... Error! Bookmark not defined. 4.6.3 Temperature amendment ........Error! Bookmark not defined. 4.6.4 Image settings ............Error! Bookmark not defined. 4.6.5 Network settings ............. Error! Bookmark not defined. 4.6.6 SD card management ..................... 38 4.6.7 Video capture ................

  • Page 6: Introduction

    Introduction Thank you for choosing ICI Instruments “IR 640 P” hand-held infrared thermal imager. Features IR 640 P includes the following features: 11 user selectable color palettes 11 user selectable languages 1- 8 X digital zoom 10 removable spot measurements...
  • Page 7 CMOS visible image and storage Thermal image and CCD image fusion High/low temperature fusion Upgrades and Options IR 640 P is factory upgradeable for Wide Angle or Telephoto Lenses. Applications: Preventive maintenance Power industry: Power line and power facility thermal state checking;...
  • Page 8 Iron and steel industry: Inspect steel refining and rolling processes;  diagnose hot-blast stove defects; detect the embryo temperature of armor plate, etc. Fire fighting: Forest fire prevention and detection of latent ignition  source. Preventive detection on specific materials of auto-ignition. Detection of potential spark ignition sources.

  • Page 9: Standard Accessories

    1.1 Standard accessories Infrared thermal image camera (with wrist strap and lens)  Shoulder strap  Carrying case  Video out cable  Lithium ion batteries（2）  Charging dock  Lithium battery charger  Lens cap  User manual, Infrared report and analysis software system CD ...

  • Page 10: Camera Overview

    2 Camera overview 2.1 Function keys...
  • Page 11 [1] Power key Press and hold the Power Key for > 3 seconds to power on/off the camera ! Note: After powering off, please wait ten seconds before powering the camera on again [2] Menu/Confirm key Includes Up, Down, Left, Right and Menu/Confirm (center) keys. Function varies with operation mode.
  • Page 12  Pressing and releasing the C key cancels the present operation when in Menu mode.  Pressing and releasing the C key when an image is frozen or being viewed from memory, will return to real-time measurement status.  When a parameter is selected, such as a measurement cursor, pressing the C key will delete the highlighted measurement.
  • Page 13 The standard configuration is to save the image [7] Laser switch Short press to turn on the laser, press again to turn off. In menu there is auto turn off laser option, the standard configuration is 60s. [8] F2 Key Short press to switch thermal image /CCD image/fusion mode.

  • Page 14: Interface

    2.2 Interface [11] Video output It is a video output interface [12] Network interface Use network cable (Mini-USB to RJ45) to connect Internet [13] SD card slot Accepting standard size SD card such as supplied 8GB capacity card, for device upgrade or image storage [14] Power interface External power input interface.

  • Page 15: Basic Operation

    3 Basic operation 3.1 Battery Installation and Replacement 3.1.1 Inserting or removing battery Battery compartment is located at the end of the camera, below the view finder. Insert the battery (the battery contacts must face into the battery compartment), press battery in until the battery is locked in place. Triangle mark up When inserting the battery, note the triangle mark’s direction should point...

  • Page 16: Replacing Battery

    Prevent stay slot Lock button ! CAUTION: Use only original manufacturer replacement battery. Use of incorrect battery may result in physical or electrical damage to the instrument due to incorrect voltage or physical size difference. 3.1.2 Replacing battery When battery has approximately 5% charge remaining, the warning will be...

  • Page 17: Battery Safety And Usage

    displayed and the instrument will turn off in approximately 10 seconds. 、 Powering off display It’s better to replace batteries now. 3.2 Battery safety and usage Batteries should be stored in an ambient temperature of -4°F (–20°C) to  67.9°F (+20°C). Lithium batteries will self-discharge during storage, so they should be fully charged before storage.

  • Page 18: Quick Access

     Always dispose of battery in accordance with local, state and federal regulations 3.3 Quick access 3.3.1 Capture an image After installing the battery, press and hold the power key (≥3 seconds)  until the display comes on. After approximately 50 seconds, the power on routine will finish and the camera will start its measurements.
  • Page 19 the camera, it will display <XXX° or >XXX° with XXX being the min or max temperature of the selected range.  To modify the measurements attributes, select the measurement parameter, and then press the Confirm key. The screen will display the settings dialog box.

  • Page 20: Freeze And Save Image

    measurement. Area attributes dialog box Area attributes amend emissivity, distance, highest temperature, lowest temperature, average temperature, temperature difference and reference temperature. Left and right key for choice, press A key for up and down switch. When Set Ref is set as Yes, the displayed values of other measurements will be their delta from this measurement.

  • Page 21: Export Saved Images

    then select the submenu (via the arrow keys to select) 2、 Click the "Preview" option in the floating panel to open the selected file (via the left and right keys to switch selection) After you open the image, you could use upper and lower sections of the ...

  • Page 22: Operation Guide

    Switch button, by the left and right keys to modify the switch  settings 4 Operation guide 4.1 Graphic interface description 4.1.1 Screen graphic interface Screen graphic interface [1] Company logo [2] Emissivity： the current emissivity setting [3] Reference Temperature： Fixed reference temperature [4] Result：...
  • Page 23 yellow denotes the temperature value of the selected object. [5] Spot temperature measurement：white crosshair [6] System time： the current system time [7] Battery status: Indicates the current battery status. [8] Manual/auto enhancement mode: choose manual or auto mode [9] Min temperature： indicates minimum value of the palette [10] Palette：...

  • Page 24: Main Menu Interface

    4.1.2 Floating bar interface Floating bar interface Floating bar interface： from left to right, up to down is adding spot, adding line, adding area, delete, taking photo, record, playback and main menu 4.1.3 Main menu Main Manu The main menu items: display the main menu item, document management, temperature settings, image settings, camera settings, general...

  • Page 25: Submenu Interface

    4.1.4 Sub-menu interface Sub-menu interface [1] Figure name: Displays the name of the dialog box. The name of the dialog box as shown in the example is "temperature measurement setting. [2] Item title: A dialog box may contain more than one item. As shown in the above figure [3] Item Content: each item corresponds to the content of a project, the left and right keys to make changes, ">"...
  • Page 26 If select “ ”，then press OK key，then the all the objects will be cleared. ! NOTE: When you delete a single temperature measurement object, directly press “A” key and choose the object, then press the "C" key to delete. 4.3 Recording This function is used to save the video, save format to MP4.
  • Page 27 Voice record note for photo Continuous photo marks will appear in the status column if set to ‘continuous photo’ 4.5 Preview This item is for the preview files of backup. Press confirming key. Pop up the floating items ，select preview and press confirm key and it will appear as followed.

  • Page 28: General Gettings

    4.6 Settings File management Temperature measurement setting Imaging setting Image setting General setting Photo/Video capturing SD card management System setting Main OSD 4.6.1 General settings General setting OSD Pressing the confirm key will pop up the panel and select the SETTING to open the main menu.
  • Page 29 Time of Auto calibration：Set time interval of auto calibration to get better thermal image and improve the precision. The unit is factory set in seconds Auto calibration OSD Shortcut key ：Users could set the Functions of shortcut key. System offers image saving, temperature range switch, image playback, record, LED light, OLED light brightness adjustment, transparency adjustment, and adding/deleting a spot or deleting an area of choice.
  • Page 30 Shortcut key setting Power saving ：Screen off and power off Time of screen off ：If without any operation ，thermal imaging camera will screen off to save power。Press any key except the power key，thermal imaging camera will screen on 。This function is not valid when time is set to 0 minute. Time of power off ：If without any operation ，thermal imaging camera will power off to save power.
  • Page 31 Auto off time OSD LCD brightness adjustment ：It is valid when changing the brightness LCD brightness adjust OSD...
  • Page 32 4.6.2 Temperature measurement setting Temperature measurement setting menu Press OK button to call out the Setting Menu. Select “Measuring Setting”, then press “OK” again to call out the setting interface. In this interface, level, magnification, Environment Temp, Ref Temp, adjustment, object temperature can be set.
  • Page 33 Ref Temp Menu Object temperature： When turn on object temperature, the temperature target display the object temperature in the bottom right corner 4.6.3 Adjustment Adjustment Menu Press OK button to call out the “Adjustment” under menu “Measuring Setting”. In this menu, Emissivity, TCorrect, Distance , Humidity ,TReflect can be set.
  • Page 34 TCorrect： Correct the target Temperature. Distance： Setting the distance between the camera and the target to make sure exact measuring. Set the real distance if the distance is shorter than 10 meters. (Unit 0.5m) Humidity： Set the humidity of the current environment. TReflect：...
  • Page 35 automatic. Press “A “button will enter manual mode, it can adjust the palette with “UP, Down, LEFT, Right” buttons. By Pressing “C” the system will return into Auto Mode. When Auto-Enhance Mode is deactivated，can switch between manual and automatic. Press “A “button will enter manual mode, it can adjust the palette with “UP, Down, LEFT, Right”...
  • Page 36 proper setting is selected. Alarm Isotherm color can be set in “Alarm Color” Alarm Color： The color of the target area shown on the LCD will be changed into the alarm color set when the temperature is over the alarm temp. 9 color types can be selected. If “colorless” is selected, then the color will not change when alarm.
  • Page 37 Isotherm upper value：Allows Users to Set the Isotherm upper value IR Fusion High & Low temperature Menu IR Fusion High & Low temperature： It consists of three options--IR Fusion High Temp, IR fusion Low Temp, and OFF. Set IR Fusion High Temp, when the actual temperature is higher than the temperature of IR fusion set up, CCD image will be shown.
  • Page 38 IP Address： This IP address must be the only one, cannot be conflicted with the other IP address of the same network segment. Sub network mask： Divide the segment of the sub network. Default network gateway ： set the gateway address to realize the communication among different segment.
  • Page 39 to cancel the formatting ! Note： Verify that the file is no longer needed or have been backed up before formatting; after formation, the saved thermal imaging pictures will be lost unrecoverable. If format by PC, please select FAT32 to format the card 4.6.7 Capture setting Capture setting menu...
  • Page 40 Manu Setting Set the path to save the file, directory type can be set by custom, by month, by date. In preview mode, the playback file path set by directory type 4.6.8 System settings System Setting Manu Press the Enter key to pop up "Settings" option to activate the main menu, select "System Settings"...
  • Page 41 Time/Date Setting Manu Change the format of the time/date Time Setting： Time Setting Manu Customer can via the Time Setting menu to set the thermal imaging camera’s time. After the setting, the data the time will be saved. Users can customize to set the year, month, day, hour, minute entries. Press the left and right key to do the settings.
  • Page 42 continue to press the confirm key system to restore the factory settings. When pressing the cancel button to exit, the restore the factory settings will be cancelled. The details of the thermal imaging camera’ factory parameters listed please see the Annex parameter table. Recover Factory Setting ! Note：...
  • Page 43 the instrument to take effect. Export: TF card, make sure the SD card is in the machine, then select the menu and then click the Export button to export the contents stored in the TF card the DCIM / Export directory. 4.7 File management 4.7.1 Playback...
  • Page 44 Preview Mode Figure 2. Preview mode: press the OK button to pop-up floating panel to select "Preview" option, enter the preview mode. Through the left and right keys to switch selection, selected press the OK button to enter the playback. Pressing the "C" key to exit open image and return to the measurement state.
  • Page 45 Image Playback Interface The image playback interface: Via the left, right key to select the play button on the status bar, press the "confirm" key to take effect on the next key to show and hide the playback status bar (press the "on" button is displayed, press the "next"...
  • Page 46 File Delete Figure ! Note： Before deletion, make sure that the file is no longer needed or have backup, the deleted image cannot be recovered...
  • Page 47 5 Specification Technical Specification Items IR 640 P Detector type Un-cooled FPA micro-bolometer Detector characteristics Array size/format 640x480 Field of view/min 24°×18°/0.3m focus distance Spatial resolution 0.65mrad （IFOV） Thermal sensitivity Image ≤0.03℃@30℃ characteristics Frame frequency 50/60Hz Focus Auto/Manu electronics focus Digital zoom 8×,continuous zoom...
  • Page 48 CCD image format JPEG、MPEG4 Input via built-in microphone up to 60 Voice annotation seconds of digital voice clip per image stored with image Text annotation Laser pointer Laser locator Class 2, 1mw/635nm(red), IEC 60 285 Battery type Li-Ion, rechargeable Battery operating 3 hours continuous operation time Power source...
  • Page 49 6 Troubleshooting Please follow the table below to diagnose and correct the problem. If problem still exists, please contact our service department （400-887-1897）. Problem Cause & Solution Battery installed installed  incorrectly →Install battery or re-install battery camera does Battery is out of power. ...
  • Page 50 Appendix A Common material emissivity （FYI） Material Surface Temperature C° Emissivity （ ε ） Non- oxidized 0.20 Aluminum Oxidized 0.55 Burnished to Brown 0.40 Brass Dull luster 0.22 Oxidized 0.61 Copper Seriously Oxidized 0.78 Oxidized 0.74 Iron Rusty 0.65 Oxidized 0.64 Cast iron Non- Oxidized...
  • Page 51 Appendix B Factory default parameter setting table Table.1 Measurement temperature setting table Value Parameter IR 640 P Temperature Range -20 ~650°C Lens Standard Temp Unit °C Ref Type Ref Temp 30°C Table.2 Measurement temperature correction table Parameter Value Emissivity 0.96 TCorrect 0°C...
