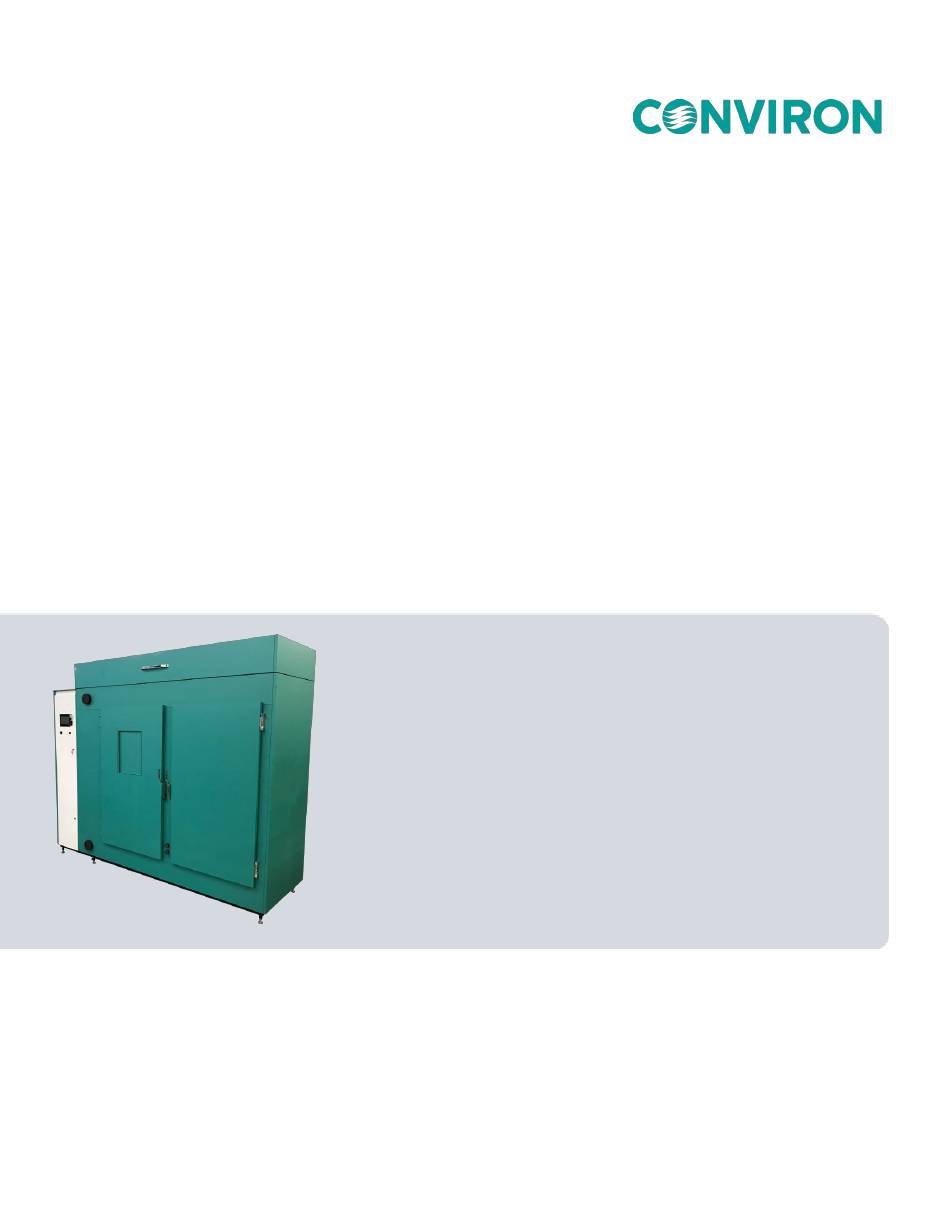

- Page 1 BDR16 User Manual 287849-ENG R00...
- Page 3 October 2018 Printed in Canada 2018 Controlled Environments Limited Conviron is a registered trademark of Controlled Environments Limited. All other trademarks are the property of their respective owners. Information subject to change without written notice. October 2018 | 287849-ENG R00...
- Page 4 PREFACE Welcome to the BDR16 User Manual. This manual describes the features and use of Conviron’s BDR16 chamber and is written in a straightforward and minimally technical style. This manual is designed to provide sufficient detail for the different configurations, including a structured format that provides step-by-step instructions.
- Page 5 EU after July 1, 2006. Document Conventions Conviron maintains a policy of continual improvement and reserves the right to change the product without prior notice. Therefore, the images used throughout this manual may differ slightly from the actual configuration due to updates and product changes.
- Page 6 A description of what you were doing before the problem occurred. Head Office Technical Services Conviron 590 Berry St. Winnipeg, Manitoba, Canada R3H 0R9 Conviron Technical Services Please visit www.conviron.com for global service contact information. October 2018 | 287849-ENG, R00...
-
Page 7: Table Of Contents
CONTENTS PRECAUTIONS ............................8 Hazard Identification Symbols ....................... 8 General............................9 CHAMBER FEATURES ........................11 Control System ..........................11 Airflow............................11 Ventilation ............................11 Barrier Canopy ..........................11 Instrument Ports ...........................12 Communications ..........................12 Levelers ............................12 Central Management System ......................12 PROVIDE ELECTRICAL SERVICE TO CHAMBER ................13 START UP ............................15 Power ON .............................15 4.1.1... - Page 8 5.9.3 Closed Loop Dimmable Lighting System ..............26 5.10 Additive Humidification .........................26 5.10.1 Air-assisted Spray Nozzle Humidification (ASNH) ............26 5.10.2 Ultrasonic Humidification System (USH) ..............27 5.10.3 Bypass Dehumidification ....................27 5.11 Additive Carbon Dioxide Control ....................28 5.11.1 Setting up the Additive CO Control ................28 5.11.2 Adjusting the CO...
- Page 9 Instrument Port Locations ....................21 Figure 5-4: Fresh Air Inlet and Exhaust Port Location .................22 Figure 5-5: Inlet/Exhaust Port Close-up ....................22 Figure 5-6 BDR16 Air Flow .........................23 Figure 5-7 Aspirator ..........................24 LIST OF TABLES Table 1-1 Hazard Identification Symbols ..................... 8 Table 6-1 Terms and Definitions ......................31...
-
Page 10: Precautions
The equipment is intended to be installed, operated, maintained, and serviced only by trained personnel, following the instructions and precautions described in the manuals provided by Conviron. The following precautions are intended to help guide users in the safe operation of Conviron chambers. Hazard Identification Symbols... -
Page 11: General
Operate your Conviron equipment for a minimum of five days before introducing any research material to ensure proper and stable operation. - Page 12 Precautions Do not touch the lamps. Fluorescent lamps operate at high temperatures and present a burn hazard. Do not touch the lamp holders. The heated metal and glass presents a burn hazard. Ceramic metal halide and high pressure sodium lamps operate at very high temperatures.
-
Page 13: Chamber Features
Visual and audible notifications provide a further level of protection. For remote monitoring and control, the chamber comes ready to communicate with Conviron’s Central Management™. Refer to the included Central Management manual for complete instructions. -
Page 14: Instrument Ports
The unit is supplied with leveling feet. Central Management System For use in conjunction with the 6000 series controllers, the Conviron Central Management™ (CM) system provides a comprehensive suite of time-saving, value-added features for remote control and monitoring of chambers, such as: ... -
Page 15: Provide Electrical Service To Chamber
Provide Electrical Service to Chamber PROVIDE ELECTRICAL SERVICE TO CHAMBER Install the electrical supply following local code using the “Minimum Circuit Ampacity” information found on the rating plate. Figure 3-1: Minimum Circuit Ampacity on Rating Plate Punch out one of the knock outs in the control panel located close to the top-right corner. -
Page 16: Figure 3-2: Wiring Connection Order
Provide Electrical Service to Chamber Insert wiring in the following order: Ground wire into the ground lug. Neutral wire into the neutral lug. Hot wire into each of the L1, L2, and L3 lugs. Figure 3-2: Wiring Connection Order Ensure that the size of the wire matches the rating marked on each lug. October 2018 | 287849-ENG, R00... -
Page 17: Start Up
Start Up START UP Once the cabinet is assembled, leveled, and all connections have been made, the cabinet can be powered on. Verify that the cabinet is operating properly before introducing any research material. Power ON Before powering on the system: ... - Page 18 Start Up 4.1.1.2 Visual Checks Check that all lights function when turned on and that the doors are light tight. Inspect the doors with interior lights on, in a darkened room. Check the evaporator fan for free movement. Some chambers have a separate breaker for fans.
-
Page 19: Starting A Chamber With Direct Cooled (Gly) Systems
With the control system powered up, set and run a program. Refer to the supplied control system manual for further details. Operate your Conviron equipment for a few days before introducing any plant material. This acquaints you with the equipment’s operation and ensures the equipment meets the requirements for your experiments. - Page 20 Check that all lights function when turned on and that the doors are light tight. Inspect the doors with interior lights on, in a darkened room. Operate your Conviron equipment for a few days before introducing any plant material. This acquaints you with the equipment’s operation and ensures the equipment meets the requirements for your experiments.
-
Page 21: Operation
Operation OPERATION The following sections provide an overview of the basic operation of the chamber. Fluorescent and Incandescent Combination Lighting A typical lamp loft includes fluorescent and incandescent lamps. However, other types of lamp configurations are available. Fluorescent lamps should be changed regularly, as intensity diminishes with use. -
Page 22: Unifloor
Operation 5.2.1 Unifloor® Plant materials, in pots or trays, are placed directly on the Unifloor and do not need to be moved during the experiment. Excess irrigation water will drain into the drain pan below the Unifloor and then be channeled out of the chamber to the floor drain. Figure 5-1: Unifloor To ensure proper airflow and water drainage, keep the vents and drain channels in... -
Page 23: Instrument Ports
The ports enable instrument probes, and small hoses, etc. to be passed through the wall of the cabinet for connection to equipment within the cabinet growth environment. The instrument ports are intended for low-voltage wires only. Conviron does not recommend the use of extensions cords inside the chamber. -
Page 24: Fresh Air Inlet And Exhaust Port
Operation Fresh Air Inlet and Exhaust Port The fresh air inlet allows the operator to manually adjust the rate at which fresh air is introduced into the chamber. The threaded collar is located on the front of the machine compartment and can be adjusted from fully closed (no fresh air) to fully open to allow up to 30 ft /min (0.84m /min) of air... -
Page 25: Airflow
Air is drawn over the refrigeration coil or heaters and circulated throughout the chamber. Fresh air may also be introduced, if required. Figure 5-5 BDR16 Air Flow Control exhaust is adjusted using the exhaust damper control in one of the following three modes: Automatic: The position of the exhaust damper is based on the CO setpoint. -
Page 26: Aspirator
Operation Aspirator Located in the growth area, the portable aspirator houses the sensors used to monitor temperature and humidity levels within the chamber. The aspirator receives an air sample from the room to measure and control conditions and provides shielding from the chamber lighting to prevent false readings caused by radiant energy. -
Page 27: Lighting Options
Reduced heat production during operation, which reduces demand on the cooling system and allows the light to be closer to the plants. Reduced sensitivity to temperature variations. Contact Conviron for LED bar replacement. October 2018 | 287849-ENG, R00... -
Page 28: Closed Loop Dimmable Lighting System
Operation 5.9.3 Closed Loop Dimmable Lighting System Lamp canopies incorporate dimmable ballasts. Automatic adjustment of the light intensity can be set within the programmed range for as low as 10% for fluorescent, 10% for LED, or 30% with HID lamps, to the maximum intensity. Incandescent lamps are controlled in light levels. Prior to operating dimmable fluorescent lamps, run the lamps at full intensity for a period of 100 hours to burn off impurities on the filament ends of the lamps left during the manufacturing process. -
Page 29: Ultrasonic Humidification System (Ush)
Refer to the supplied control system manual for a complete description and operating instructions. A psychotropic chart showing the operation envelope of the chamber may be beneficial during normal operations. Contact Conviron for more information. 5.10.2 Ultrasonic Humidification System (USH) This optional additive humidification uses vibrating discs to generate soundwaves underneath the surface of the water, forming a fine mist of vapor that is absorbed by the flow of air. -
Page 30: Additive Carbon Dioxide Control
The high-pressure regulator is located on the customer supplied CO line. This regulator comes in two styles of flow meters, a dial gauge or a glass tube and ball style. In North America, Conviron provides the high-pressure regulator. Outside North America, the customer supplies the high- pressure regulator due to different thread size on the CO line. -
Page 31: Adjusting The Co
Main Status Program Screen. The Vaisala™ CO monitor operates in two ranges, up to 2000 ppm and up to 3000 ppm. Customized ranges are available upon written request. Contact Conviron for more information. Ambient CO levels are usually at least 350 ppm and can be higher, depending on proximity to other CO sources such as human beings or automobiles. -
Page 32: Co 2 Scrubber
Operation 5.11.3 CO Scrubber The CO Scrubber system is a standalone device for controlling CO concentration levels below resultant conditions down to below ambient ppm levels. Chamber air is passed over an absorbing media thereby removing CO content from within the controlled environment. 5.12 Central Management System Refer to the supplied central management manual for a complete description and operating instructions. -
Page 33: Additional Information
Additional information ADDITIONAL INFORMATION Terms & Definitions Table 6-1 lists the terms and their definitions used throughout this manual. Table 6-1 Terms and Definitions Term Definition ASNH Assisted Spray Nozzle Humidification Bypass Dehumidification Direct Expansion European Union Outside Diameter Parts Per Million Pounds Per Square Inch RoHS Restriction of Hazardous Substances Directive... -
Page 34: Product Updates
Conviron also provides retrofit systems for competitive products. For example, Conviron offers a control system retrofit that is compatible with competitive products and that, once installed, works with Conviron’s Central Management System (CMS). - Page 35 ISO9001 287849-ENGR00, October 2018 ©2018 Controlled Environments Limited. Conviron is a registered trademark of Controlled Environments Limited. All other trademarks are the property of their respective owners. Information is subject to change without written notice.
