This system is based on a development supported with funds of the German ministry of research and technol-
ogy with the project no. 35-250368, with the assistance of the German 'Fraunhofer Gesellschaft ISE'
Viasis 3003

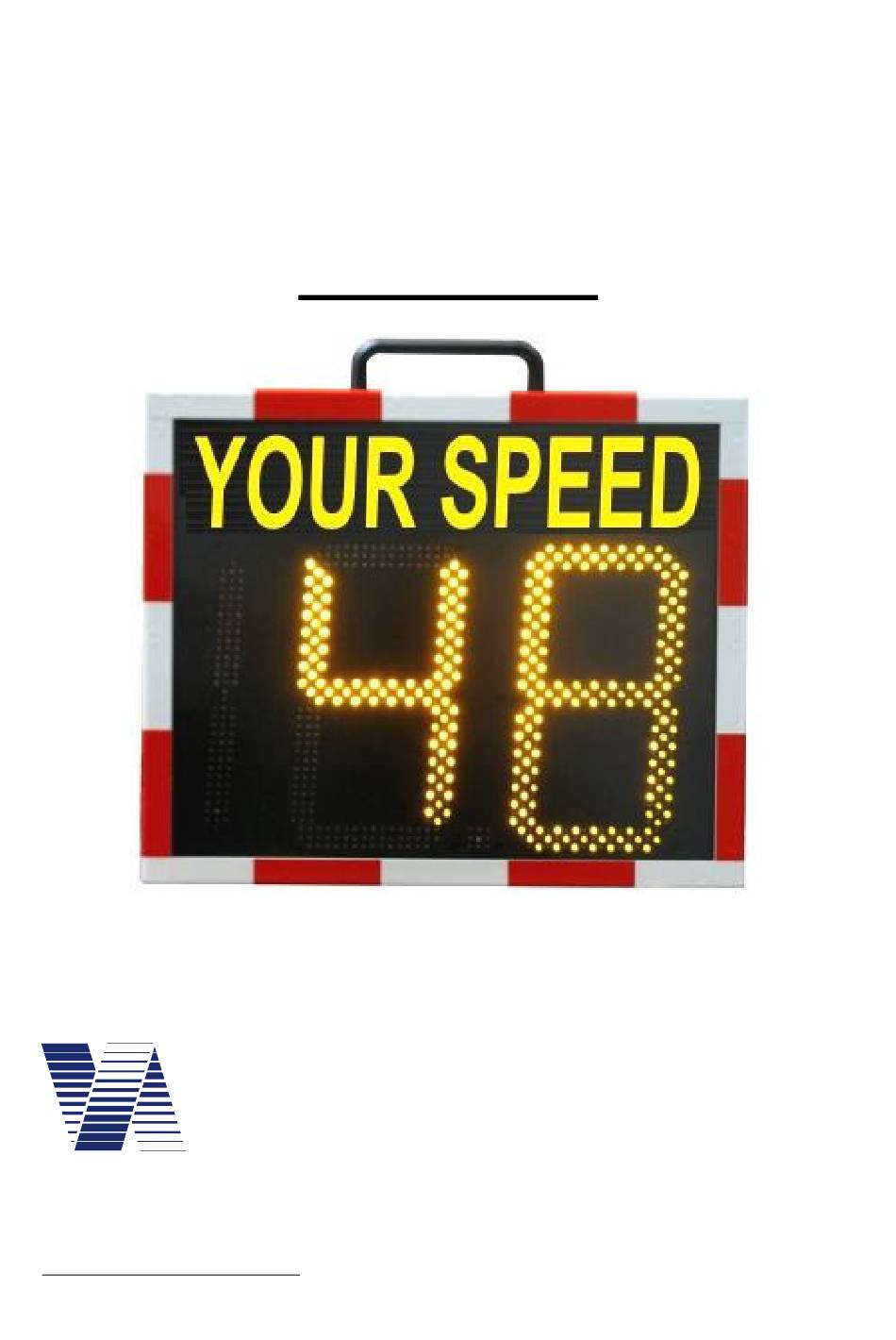

viasis the mobile and independent
speed indicator system
User Manual
Revision 4.1, 8 March 2017
via
traffic
controlling
GmbH
1
Campusallee 1
D-51379 Leverkusen
Germany
Tel. +49 - (0)2171 - 50 49 30
Fax. +49 - (0)2171- 50 49 50
Email:
info@viatraffic.de
Web:
http://www.viatraffic.de
