Potentiometer

Update in PCB version 1.2: the drilling diameters

for the pot brackets were increased. The pots are

now much easier to put into their position.

At least we are coming to the pots. They are all

identical, you can't mix them up.

There are some serious traps here. To get a

pot straight again after it was soldered in a

crooked orientation is NOT fun.

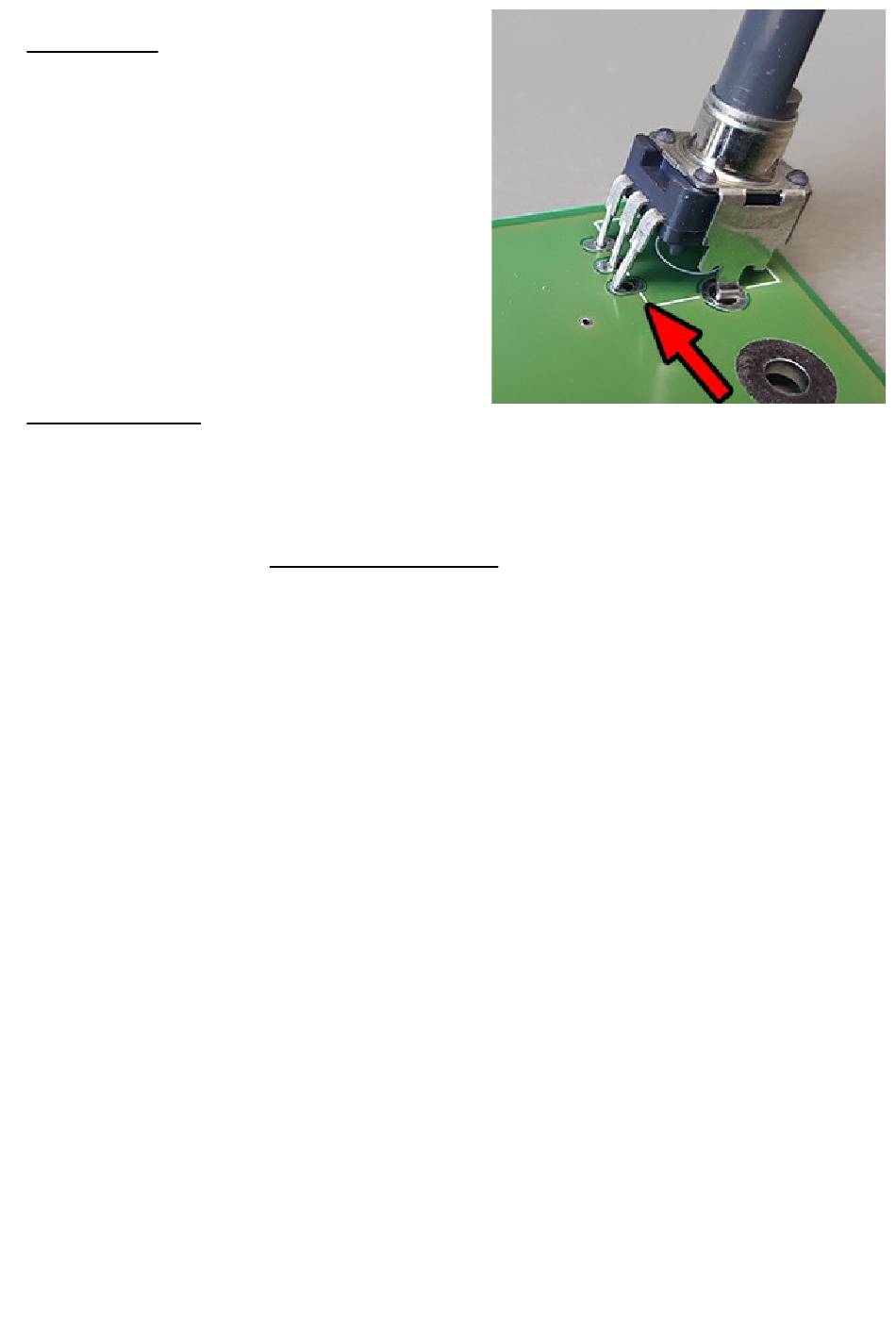

Source of error 1: have a careful look for all 3

pins to find their drilling holes before pushing the pot down onto the pcb. The pins

could be bent from transportation. It happened to ourselves we overlooked one leg

and twisted it seriously while pressing the pot's metal brackets into the pcb with force.

Put them all in place but do not solder them yet!

Building instructions 'Stereoping Synth Controller'

V1.6 - 09.2018
