Summary of Contents for Hahn HF-2STAGE

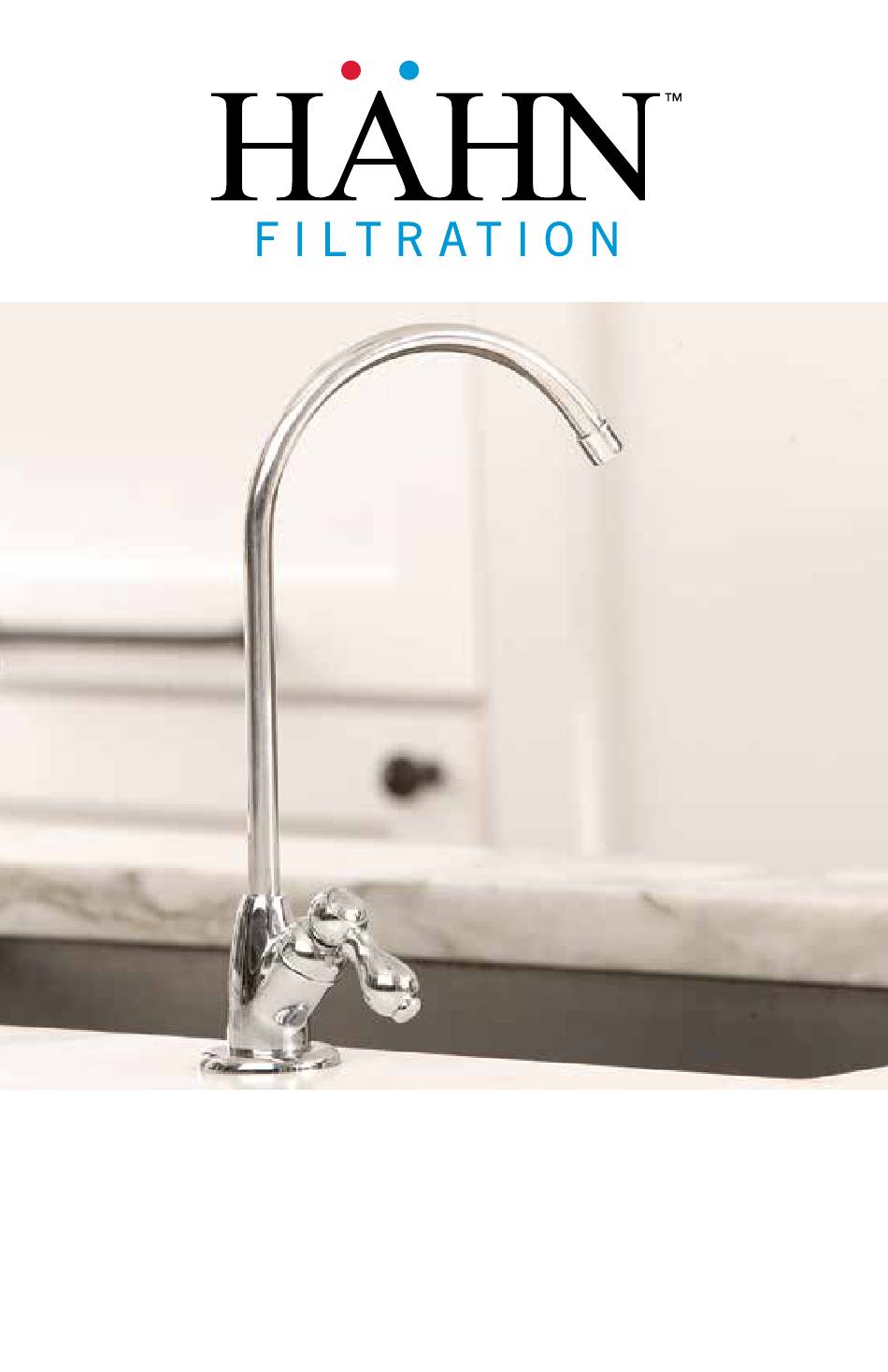

- Page 1 Under Counter Water Filter Installation Instructions MODELS HF-2STAGE and HF-3STAGE...
-
Page 2: Preparing For Installation

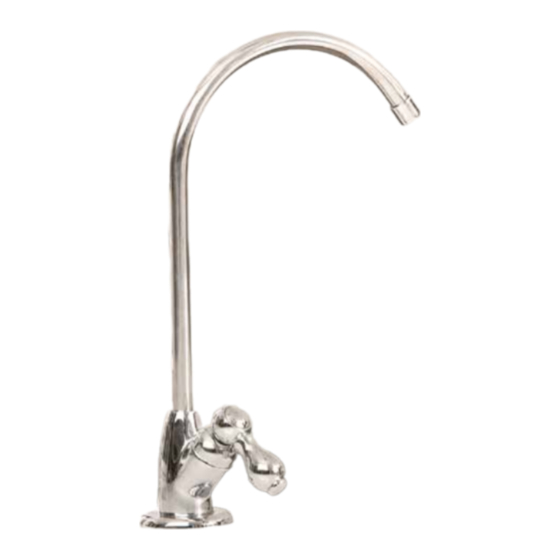

Installation must comply with state and local laws. Chrome Brushed Nickel The HF-2STAGE and HF-3STAGE are available in two designer finishes, Polished Chrome and Brushed Nickel. The HF-1STAGE is only available with the Chrome finish. The faucet may be mounted on the sink using an existing hole for a sprayer nozzle or soap dispenser, or by drilling a hole at least 1/2"... - Page 3 Plastic tube insert (1) 3’x3/8” Poly tubing (1) Brass nut (1) Brass tube insert (1) HF-3STAGE 3/8” Brass Tee (1) HF-2STAGE filter unit Faucet (1) Filter Cartridges (2) Screws with anchors (2) Faucet Rubber Washer (1) Faucet Spacer (1) Faucet Washer (1) Faucet Nut (1) 3’x1/4”...
-
Page 4: Installation Instructions
Installation Instructions Unpack and unwrap contents. Attach threaded ends of supplied Turn off and disconnect the cold brass tee to the cold water supply line water supply. and shut-off valve; tighten using an adjustable wrench. Attach white tube to the brass tee: Slide the compression nut onto the white tubing (with threads of the nut facing the end of the white tube). - Page 5 Center to hole differences: and beep five (5) times to the sump is HF-1STAGE: 41mm indicate that the battery is locked in. HF-2STAGE: 65mm installed correctly. HF-3STAGE: 98mm Depth to insert 2 0.95” and 3-stage tubing Connect supply lines: insert tubing...
- Page 6 Enjoy clean, healthy water and the peace of mind that comes from award-winning filter technology.
-
Page 7: Care And Maintenance
Code and a full refund will be promptly issued upon return. Thank you for choosing HAHN Filtration! This filter system is designed and tested for use with genuine HAHN Filtration parts, including replacement filters and all hardware except for the actual faucet. Use of parts from other manufacturers may result in loss of contaminant reduction performance, system damage or failure. - Page 8 • Filter is only to be used with cold water. • If you experience a leak at the hose connection, disconnect and re-seat the hose. • HAHN Filtration is not liable for consequential or incidental damages due to improper installation.
