Installation
Logitech® Mini Controller

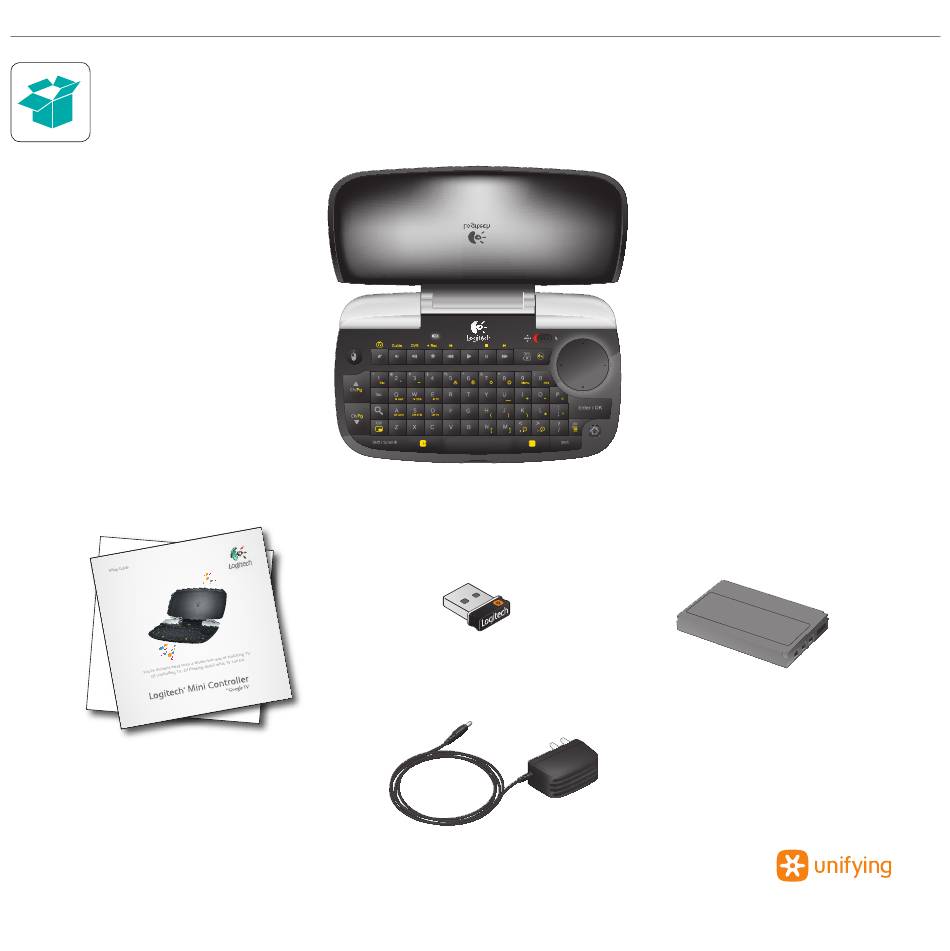

Unpack the box
Logitech® Mini Controller
Unifying receiver
Li-ion battery
Documentation
Power adapter
3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Logitech Mini Controller
Summary of Contents for Logitech Mini Controller
- Page 1 Logitech® Mini Controller Unpack the box Logitech® Mini Controller Unifying receiver Li-ion battery Documentation Power adapter...
- Page 2 Logitech® Mini Controller Mini Controller – Navigation Mode...
- Page 3 Cover Funtions as an ON/OFF switch: open Dual-mode Touchpad Functions as a to turn on Mini Controller; close to put Mini directional pad in Navigation Mode for Controller in standby mode navigating channels or web pages; press OK to select...
- Page 4 Logitech® Mini Controller Mini Controller – Typing and Pointing Mode...
- Page 5 Logitech® Mini Controller Cover Funtions as an ON/OFF switch: open to turn on Mini Controller; close to put Mini Controller in standby mode Battery Indicator Light Blinks green when battery is charging, turns solid green when battery is fully charged, and red when battery power is low...
- Page 6 Logitech® Mini Controller Insert battery in Mini Controller Open the back cover of the Mini Controller by sliding the tab up. Insert the Li-ion battery, as shown in the illustration. Replace the back cover.
- Page 7 Logitech® Mini Controller Connect power to Mini Controller Plug the AC cable into the power port on the side of the Mini Conroller. Plug the AC adapter into a wall socket to start charging the Li-ion battery. A full charge takes about four hours for up to one month of use.
- Page 8 Logitech® Mini Controller Connect the Mini Controller Setup with a Google TV – Based Smart TV System Plug the Unifying receiver into a USB port in your Google TV – based smart TV system.
- Page 9 Setup with a Logitech Revue™ Companion Box Turn ON the Companion Box (sold separately). Open the top cover of the Mini Controller to turn it on. Remove the Mini Controller’s bottom cover. Press and release the pairing button on the back of the Companion Box. This button is located under the Unifying logo.
- Page 10 Logitech® Mini Controller Power everything on Your new Mini Controller cannot control your devices until you complete the on-screen setup. To begin, turn on all devices using your current method of control. Open the Mini Controller’s top cover to turn ON the unit.
- Page 11 Logitech® Mini Controller Illuminiation The Mini Controller keyboard and touchpad illuminate when you open the cover, press a key, or use a control. The backlighting fades out when you either close the cover or stop using the Mini Controller for about five seconds.
-
Page 12: Help With Setup
Solution: Check the following: • Is the Mini Controller on? Open the top cover to turn on the unit. The Battery Indicator Light should be solid green when the battery is fully charged, and red when battery power is low. - Page 13 Logitech® Mini Controller Problem: In a Logitech Revue™ setup, my TV, STB (set-top box), or AVR (audio-video receiver) is not responding to the Mini Controller. Solution: Check the following: • Is the device IR controlled? If you are using the Logitech Revue Companion Box, this device only controls IR enabled TVs, STBs, and AVRs.
- Page 14 Logitech® Mini Controller...
