Radiatori 2000 Plus Assembly Manual

Radiatori 2000 Plus

Assembly Guide

Before Assembly

Place all parts on a flat surface.

Ensure all machined faces and internal threads are clean.

There are two joints to be made for each pair of sections. Each

requires one connection nipple and one gasket. A nipple key and

tommy bar are required to rotate and tighten the connections.

Each section has right-handed connections at one end and left-handed

ones at the other. Nipples have one end left handed and one right

handed. Determine the orientation of connections before assembly.

Screw a pair of nipples into one end of the radiator.

Only screw in by one turn, do not screw in fully.

Place a gasket approximately at the mid-point of each nipple.

Do not use any jointing paste or tape (PTFE or similar) to the

gasket, nipple threads or radiator.

0800 357 1233

info@centralheating.co.nz

www.centralheating.co.nz

Table of Contents

Do you have a question about the Plus and is the answer not in the manual?

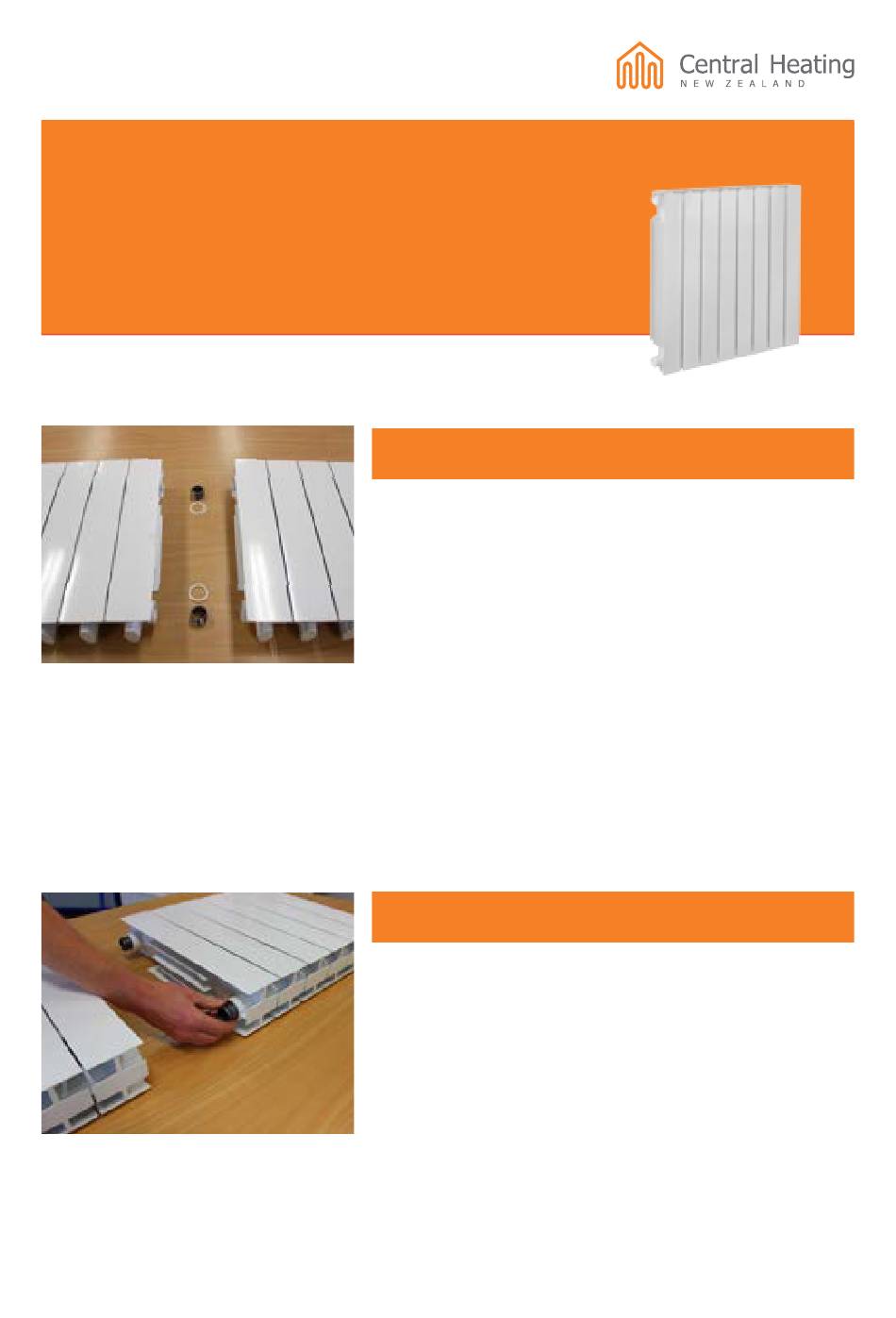

Page 1 Radiatori 2000 Plus Assembly Guide Before Assembly ASSEMBLY PREPARATION Place all parts on a flat surface. Ensure all machined faces and internal threads are clean. PARTS REQUIRED There are two joints to be made for each pair of sections. Each requires one connection nipple and one gasket.
