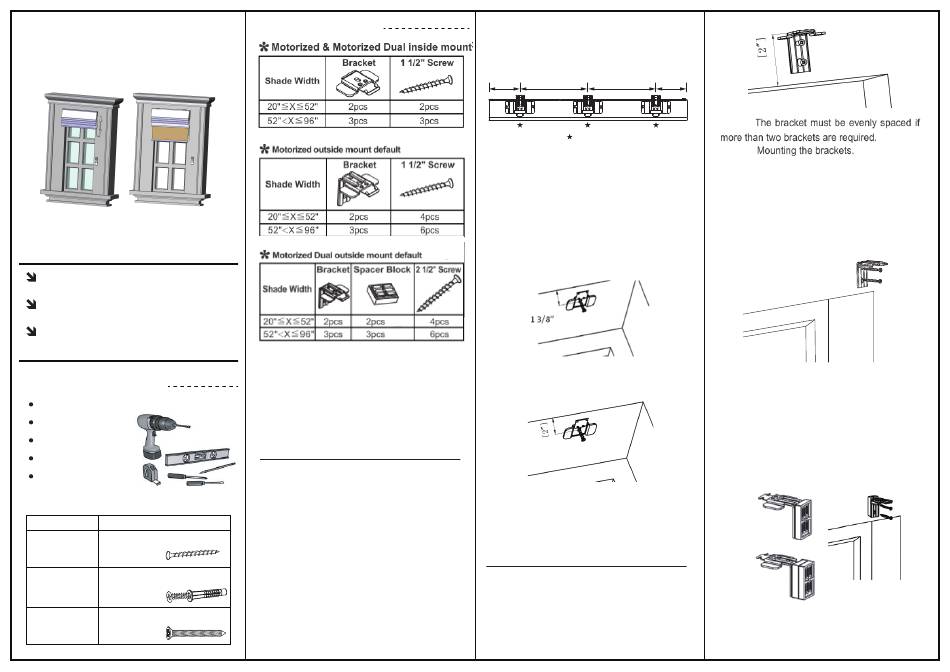

Norman Centerpiece Motorized Installation Instructions

Centerpiece Roman Shade
TM

Installation Instructions

Motorized Motorized Dual
Please take a moment to review the
following installation guide.
Please leave shade in folded open
position for ease of installation.
Be sure to keep all components and
packaging until shade is fully installed.

Recommended Tools

Power drill & Drill bit
Tape measure
Screwdriver
Level
Pencil
Fasteners needed for different mounting surfaces:
Mounting Surface Fastener
1 1/2" Screw (Provided)
Wood
Wall Anchors, Expansion Bolts
(Not Provided)
Drywall/Plaster
Sheet Metal Screws
Metal
(Not Provided)
Hardware Included
Motorized & Motorized Dual inside mount
Bracket 1 1/2" Screw
Shade Width
20"≦X≦52" 2pcs 2pcs
52"<X≦96" 3pcs 3pcs
Motorized & Motorized Dual outside mount default
Bracket 1 1/2" Screw
Shade Width
20"≦X≦52" 2pcs 4pcs
52"<X≦96" 3pcs 6pcs
Motorized & Motorized Dual outside mount optional
Bracket Spacer Block 2 1/2" Screw
Shade Width
20"≦X≦52" 2pcs 1 or 2sets 4pcs
52"<X≦96" 3pcs 1 or 2sets 6pcs
1.
Mounting the shade inside a
window frame
Step 1: Mark both side-headrail marks centered
along the top of the window frame.
Step 2: Mark the screw positions where you will
install the brackets, 3.5" from each side of the
shade.
Step 3: The bracket must be evenly spaced if
more than two brackets are required. Every
bracket is fixed with one 1 1/2" screw.
Evenly Evenly
3.5" spaced spaced 3.5"
Bracket
Step 4: Mounting the brackets
When flush inside mount, allocate a min.
distance of 1 3/8" for motorized, while 2" for
Motorized Dual from the edge of the wall to the
center of the screw hole.
motorized
Motorized Dual
2.
Mounting the shade outside
a window frame
Step 1: Determine a desired position of the shade
and mark the top of shade and both side-headrail
marks. The top-of-shade mark is at least 2" from
the top edge of window frame.
Step 2: Use the template provided to mark the
screw hole position for bracket at both ends.
Step 3: The bracket must be evenly spaced if
more than two brackets are required.
Step 4: Mounting the brackets.
For motorized
Attach the bracket with 2 pcs 1 1/2" screws on
the wall directly.
For motorized dual
The combination of brackets and spacer block
is used as brackets and also center support if
applicable. Put the spacer block at the back
of the bracket as pictured below, and then
attach the combination with 2pcs 2.5" screws.
Note: If spacer block is required, please
install it as above picture.
N300615-1
