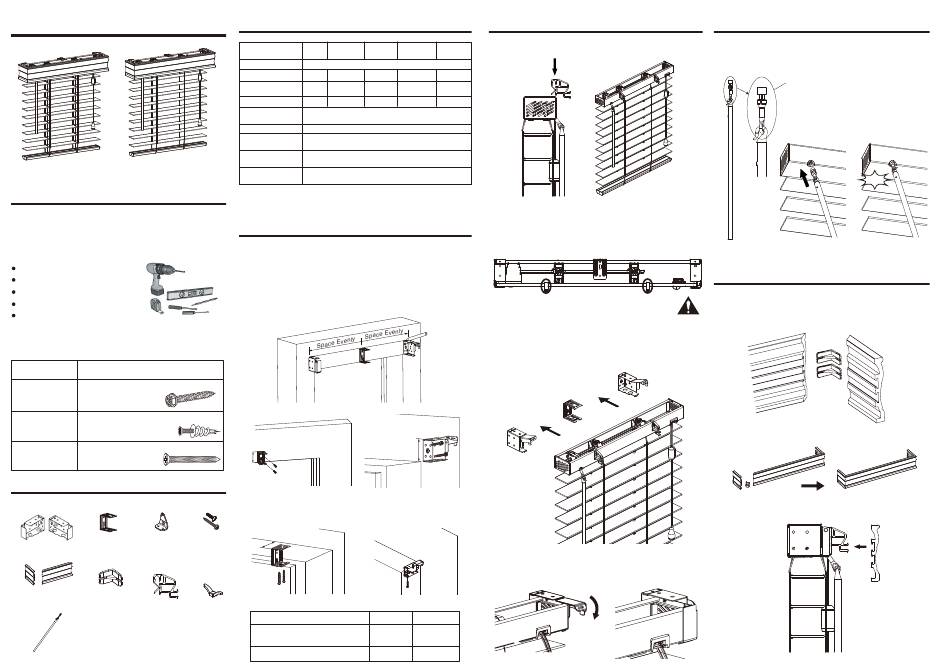

Norman SafeNotch Installation & Maintenance Instructions

N300956
65101-20125
Installation & Maintenance Instructions
SafeNotch SmartPrivacy

Getting Started

Remove the blind from the package. Be sure to keep the packaging
until the blind operates to your satisfaction. Please take a moment
to review the following installation guide for proper installation.

Recommended Tools

Measuring Tape
Pencil
Level
Screwdriver
Power Drill (1/4" hex driver and drill bit)
You will need to use the following fasteners for your particular
mounting surfaces:

Mounting Surface

Fastener
1 1/4" Hexagonal Head Screw
(Provided)
Wood
Wall Anchors, Expansion Bolts
(Not Provided)
Drywall / Plaster
Sheet Metal Screws
(Not Provided)
Metal

Check Component / Hardware

Check your package for contents needed for proper installation.
Supporting Hold Down
Bracket Bracket
Installation Bracket
Valance & Valance
Valance Return Return Joinery Valance Clip
Wand
Hardware Standard Quantity
Blind Width (X) X≦37" 37"<X≦47" 47"<X<60" 60"≦X≦75" 75"<X≦96"
Installation Bracket
0 1
Supporting Bracket
1 1/4" Screw for
4 6
Bracket
Valance Clip 2 3
Valance Return Joinery
(if returns needed)
Cord Cleat
3/4" Screw for
Cord Cleat
Hold Down Bracket
(if included)
3/4" Screw for Hold
Down Bracket
Note: You may find more hardware parts than you actually need. In that case,
feel free to set them aside for future use.

Step 1. Bracket Installation

Place the installation brackets at the desired position. Use a level to
ensure all brackets are in alignment.
If supporting brackets are provided. make sure they do not collide with
ladder cords. Use two fasteners (1 1/4" screws or wall anchors) to secure
the installation and supporting brackets.
Outside Mount
Inside Mount
3 / 4 " & 1 1 / 4 "
Screws
Cord Cleat

Mounting Depth Requirement

Semi-Inside Mount
(Min.)
Fully Inside Mount

Step 2. Install the Blind

Hook the valance clips onto the head rail and space them evenly.
2
2 3
2
8 8 10
3 4 4
4
1
1
2
4
Make sure valance clips are not in an obstructive position with the
wand tilter, drum support inside the head rail.
Open the hinged door of the installation brackets and insert the
head rail into the end brackets (and supporting brackets if
provided).
Close the hinged door of the installation brackets.
2" Blind 2.5" Blind
2 3/16" 1 11/16"
3 15/16" 4 7/16"

Step 3. Install the Wand

Insert wand tilt connector into the bottom of head rail untill it is
clicked. Please be aware that tilt connector is irremovable from
the head rail once installed.
Wand tilt connector
Click !

Step 4. Attach the Valance

Insert the valance return joinery if needed.
Attach the valance and valance returns as below drawing.
